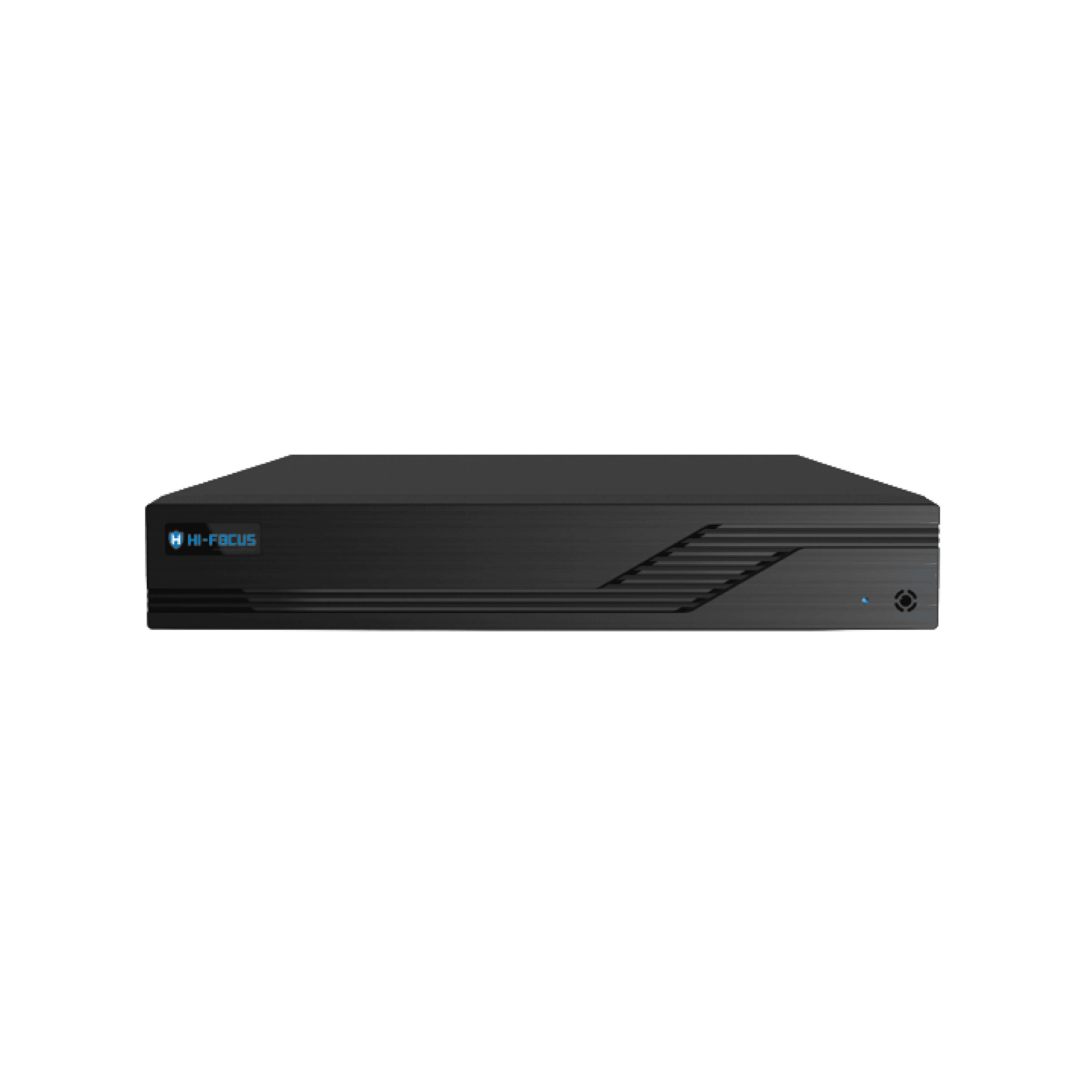

16 CHANNEL 1 SATA NETWORK VIDEO RECORDER
HD-NVR-4116TL-A
Product Features
- 16 CH Support 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P IP input
- Adopt standard H.265 and H.264 high profile compression format to gethigh-quality video at much lower bit rate
- Multi-mode recording: manual/ timer/motion / sensor
- Playback:16 CH simultaneous playback
- Search: time slice, time, event (manual, sensor, motion), tag search
- Express and flexible backup via USB, network and so on
- Pentaplex: preview, record, playback, backup and remote access
Specifications
- SYSTEM
- VIDEO
- AUDIO
- NETWORK
- MOBILE DEVICE
- STORAGE
- BACKUP
- PORT
SYSTEM
OS
Embedded Linux
VIDEO
Incoming Bandwidth
112Mbps
Outgoing Bandwidth
112Mbps
Video Compression
Smart H.265, H.265, H.264
Input Resolution
8MP, 6MP, 5MP, 4MP,3MP, 1080P,960P, 720P@25/30fps
Network Access
16 CH IPC Input
Output
HDMIx1: 3840×2160/1920×1080/VGA×1:1920×1080/1280×1024/1024×768 1280×1024/1024×768
AUDIO
Input
RCA x 1
Local Output
RCA x 1
NETWORK
Interface
RJ45 1000 Mbps x 1
Protocol
IPv4, IPv6, RTSP, UDP, SMTP, NTP, DDNS, DNS, HTTP, HTTPS, FTP, P2P, UPnP, NTP, DHCP, PPPOE, SnMP, ONVIF
MOBILE DEVICE
OS
iOS, Android
STORAGE
HDD
SATA×1, Up to 8TB per HDD
BACKUP
Local Backup
U disk, USB Mobile HDD
Network Backup
Supported
PORT
USB
USB 2.0 x2 (rear panel)
