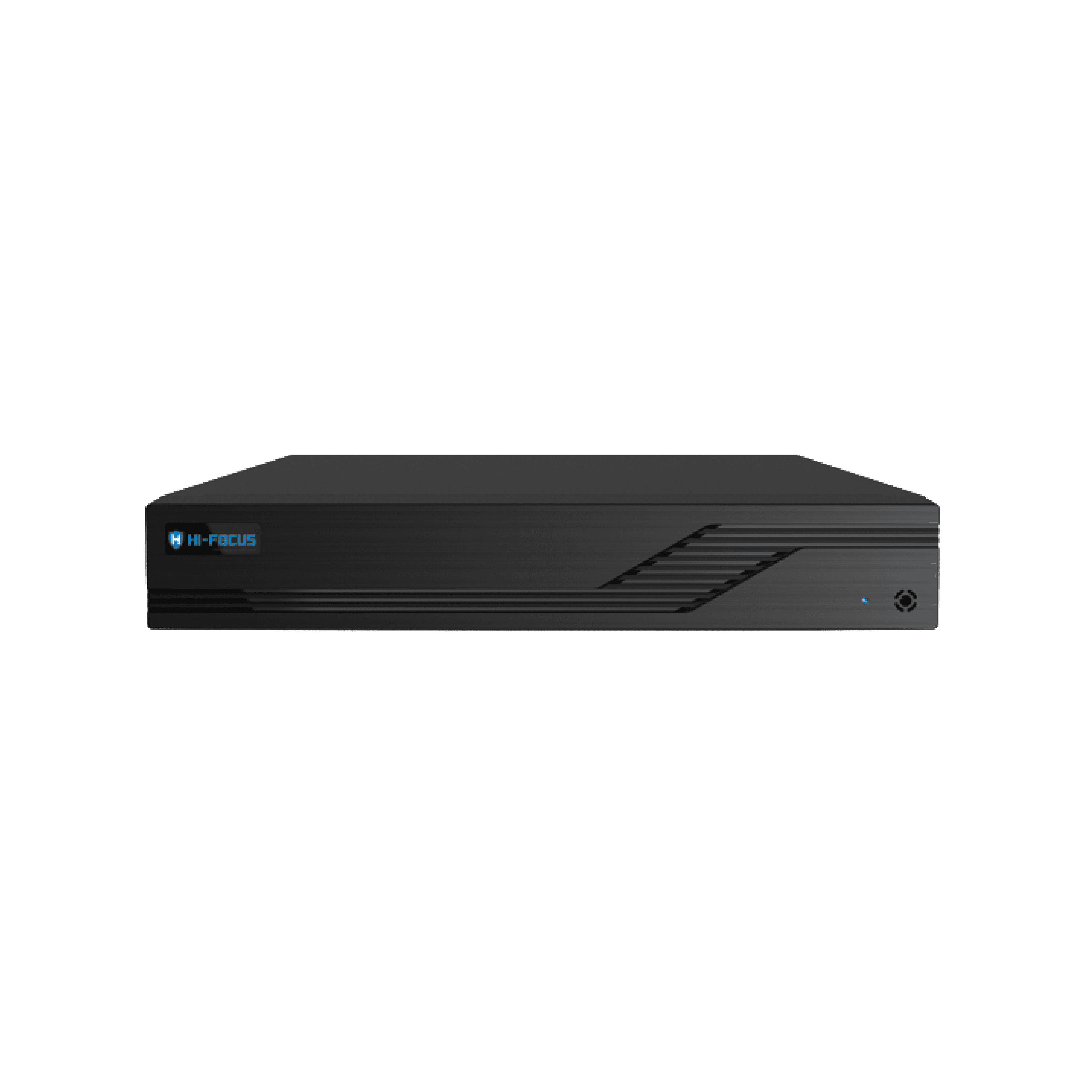

16 Channel 1 Sata Network Video Recorder
HD-XVR-4116TLC
Product Features
- 16CH TVI/ AHD/CVI 1080P/1080P Lite/720P/WD1 video input
- 16CH DVR supports 8CH 5MP/4MP/3MP/1080P /960P /720P IP video input by default
- 16CH DVR: 16 CH analog video input can be switched to 16CH IP video input
- Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphics User Interface (GUI), window style operation by mouse
- Multi-mode recording: manual/timed / motion / Al recording
- Playback: 16 CH simultaenously playback Search: time slice, time, event, tag search
- Express and flexible backup via USB, network and so on
- Pentaplex: preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web or CMS: preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and
- remote surveillance with mobile device Authorization management, log review and device status review
- Support 1080P output, true high resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises Support NAT function and
- QRCode scanning by mobile phones Powerful mobile surveillance by smart phones with iOS and Andriod OS
Specifications
- SYSTEM
- VIDEO AND AUDIO
- RECORDING
- PLAYBACK
- DISPLAY
- NETWORK
- BACKUP
- STORAGE
- AUXILIARY INTERFACE
- ELECTRICA
- ENVIRONMENTAL
SYSTEM
Main Processor
Embedded Processor
Operating System
Embedded LINUX
VIDEO AND AUDIO
Incoming Bandwidth
16Mbps
Outgoing Bandwidth
60Mbps
Analog Camera Input
16 Channel, BNC
IP Camera Input
16 CH (HD) + 2CH (IPC)
Audio In
RCA x1
Audio Out
RCA x1
Two-way Talk
Take up channel one audio input
RECORDING
Video Compression
H.264/H.265
Resolution
1080P Lite/720P/720P Lite/ WD1
Record Rate
Analog Channel: 8CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) IP Channel: 25fps(PAL) /30fps (NTSC)
Video Bit Rate
32Kbps~ 4Mbps
PLAYBACK
Playback
16 CH
Search
Time slice / time / event / tag search Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Function
Play, pause, FF, FB, digital zoom, etc.
DISPLAY
Interface
1 HDMI,1 VGA
Resolution
1920×1080, 1280×1024, 1024×768
Multi-screen Display
1/4/6/9
NETWORK
Interface
RJ 45 100Mbps × 1
Protocol
TCP/IP, PPPOE, DHCP, DNS, DDNS, UPnP, HTTР, HTTPs, NTP, SMTP
Max. User Access
5 users
BACKUP
Local Backup
U disk, USB mobile HDD
Network Backup
Yes
STORAGE
HDD
1 SATA Port, up to 8TB capacity
AUXILIARY INTERFACE
USB
2 USB 2.0
ELECTRICA
Power Supply
DC12V/1.5A
Power Consumption
<5W (Without HDD)
ENVIRONMENTAL
Operating Conditions
-10~50°C, 10%~90% (humidity)
Dimensions
255 × 222 x 42 (W x D×H)
