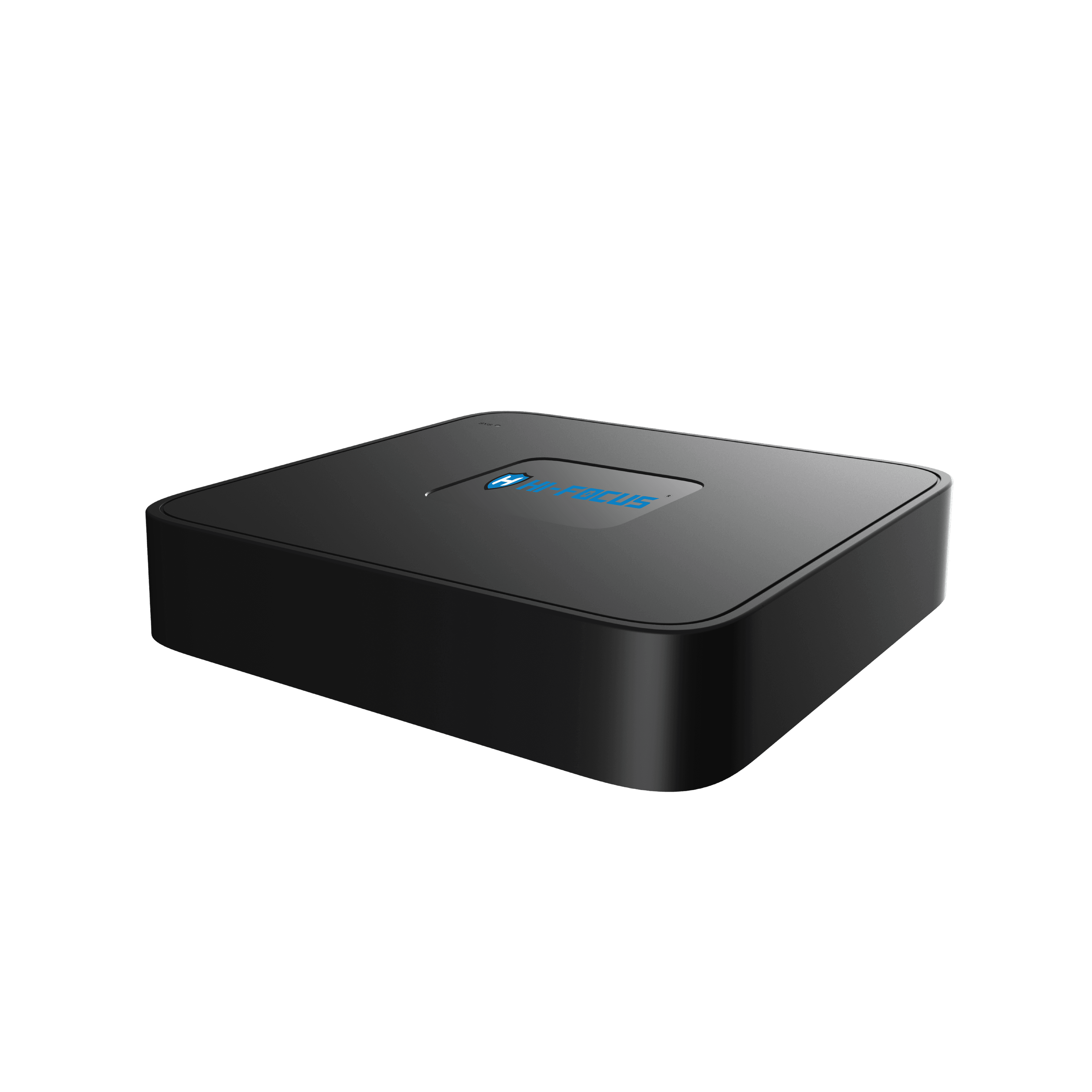

16 CHANNEL NETWORK VIDEO RECORDER

HD-NVR-2116I

Product Features

16 CH NVR – 60Mbps Incoming / 40Mbps Outgoing Bandwidth
Max Resolution – 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/ 720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Compression – Smart H.265+ / H.265 / H.264+ / H.264
Video Output – HDMI up to 4 K & VGA up to 1080P
Multi Display – 1/2A/2B/3/4/5/6 Playback – 4CH
Simultaneous Playback Storage – 1×SATA, Up to 8TB HDD Capacity
AI by Camera – Human & Vehicle Classification, etc.
Compatibility – ONVIF (Profile S/T), CGI, SDK, P2P

Specifications

Video and Audio
Compression Standard
Network
Recording
Alarm
Intelligent Analytics
Storage
External Port
General

Video and Audio

Channel

Incoming Bandwidth

60Mbps

Resolution

8MP/6MP/5MP/4MP/3MP/ 1080P/UXGA/720P/VGA/4CIF/ DCIF/2CIF/CIF/QCIF

Preview Decoding Capability

8MP(30fps)×1, 6MP(30fps)×2, 5MP(30fps)×2, 4MP(30fps)×3, 3MP(30fps)×4, 1080P(30fps)×6, 720P(30fps)×10, 4CIF(30fps)×10

Playback Decoding Capability

8MP(30fps)×1, 6MP(30fps)×2, 5MP(30fps)×2, 4MP(30fps)×3, 3MP(30fps)×4, 1080P(30fps)×4, 720P(30fps)×4, 4CIF(30fps)×4

Compatibility

ONVIF(Profile S/T),CGI, SDK, P2P

HDMI Output

HDMI: 1024×768(60Hz), (720P ) 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768 (60Hz),1440×900(60Hz), (1080P) 1920×1080(50Hz/60Hz), (4K)3840×2160(30Hz)

VGA Output

VGA: 1024×768(60Hz), (720P) 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768 (60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)

Multi-screen Display

Simultaneous Output: VGA: 1/2A/2B/3/4/5/6/7/8/9/10/ 12/13/16 HDMI: 1/2A/2B/3/4/5/6/7/8/9/10/ 12/13/16

Compression Standard

Video Compression

Smart H.265+, H.265, Smart H.264+, H.264

Audio Compression

G.711A; G.711U; ADPCM_D

Stream Type

Video; Video & Audio

Network

Network Protocol

802.1X, ARP, DDNS, DHCP, DNS, Easy DDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, Multicast, NTP, RTCP, RTP, RTSP, SMTP, SRTP, SSH, TLSv1.2, TCP, UDP, Unicast, UPnP

Moblie Client

Android, iOS

System Compatibility

RTSP, CGI, SDK, P2P

Web

IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+

Recording

Multi-channel Playback

Up to 4 channels

Record Mode

Manual Recording, Alarm Recording, Schedule Recording

Storage Method

Local HDD

Backup

USB storage device

Playback Function

Play/Pause/Stop/Slow/Speed/ Backwards 30s/Forwards 30s/ Full Screen/Backup (Video Editing)/Step/ Digital Zoom/Instant Replay

Alarm

General Alarm

Motion Detection, Mask Alarm, Alarm Input(IPC)

Exception Notification

Video Loss, Network Disconnected, No Disk, Illegal Access, Disk group space alert, Disk Full, Disk R/WError, Recording Abnormal, Abnormal found in smart of disk, Abnormal temperature of the disk,Voltage Alarm(IPC), RTC Failure, IP Address Conflict, MAC Address Conflict, Disk Overload

Intelligent Analytics

AI by Camera

Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Running, Parking, Loitering,Video Abnormal, Audio Abnormal, On Duty Detection, Crowd Detection, Smart Alarm, Human/VehicleClassification

VCA Search

Early-warning Search

Storage

Hard Disk Capacity

1×SATA interface, Up to 10 TB capacity for each HDD

External Port

USB

2×USB2.0

HDMI

1×HDMI

VGA

1×VGA

Network Interface

1×RJ-45, 10/100 Mbps self-adaptive Ethernet port

General

Power Supply

DC12V

Power Consumption

<10W(HDD not included, idling)

NetWeight

0.4 kg

GrossWeight

0.7 kg

Boundary Dimensions

201(L)202(W)43(H)mm

Package Dimensions

315(L)70(W)235(H)mm

Operating Temperature

-10°C~+55°C (+14°F~+131°F)

Operating Humidity

10%~90%RH (non-condensing)

Storage Temperature

-20°C~+60°C (-4°F~+140°F)
