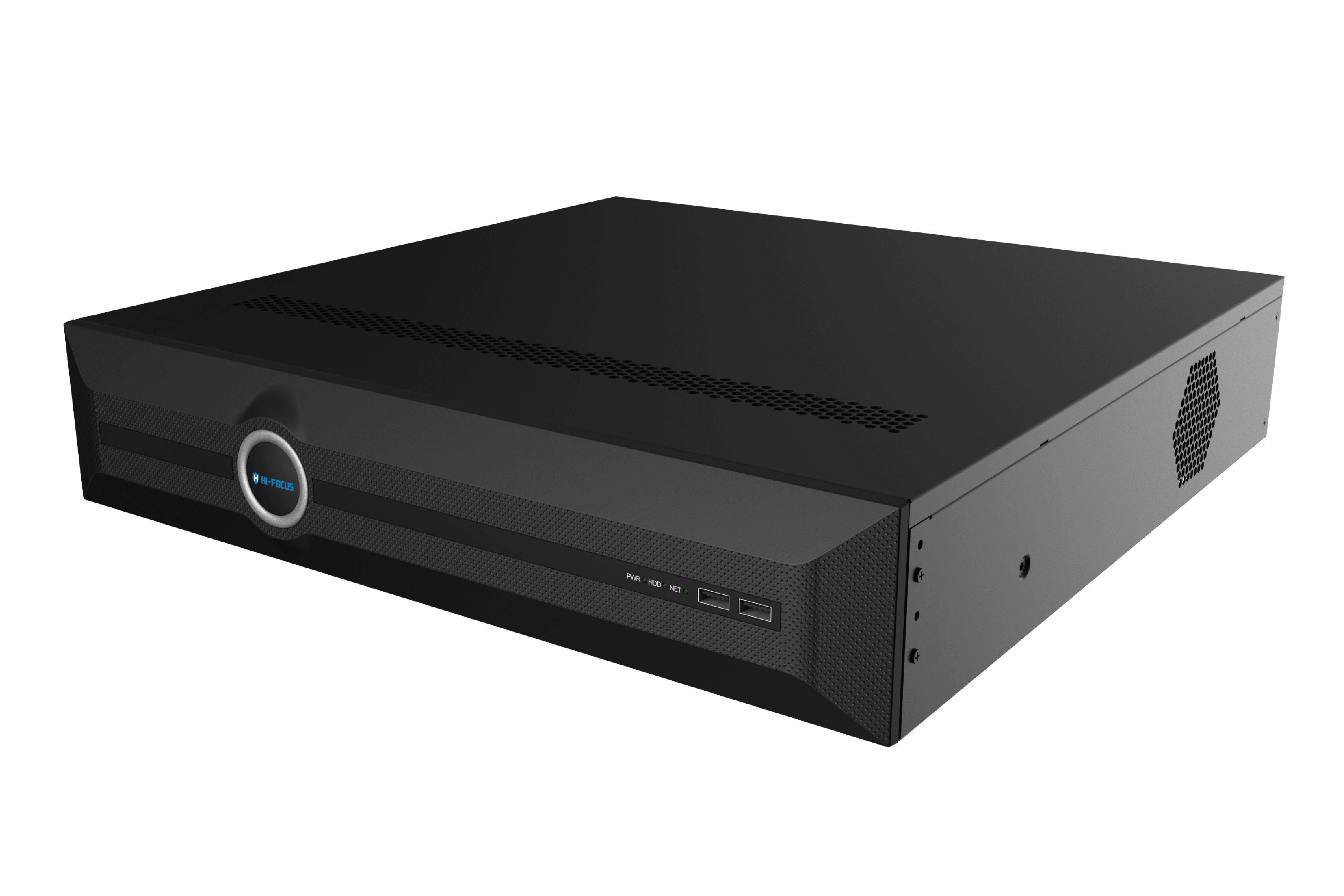

16 CHANNEL NETWORK VIDEO RECORDER

HD-NVR-5216SP

Product Features

16 CH NVR – 160Mbps Incoming /160Mbps Outgoing Bandwidth
Max Resolution – 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF Compression – Smart H.265+ / H.265 / H.264+ / H.264
Video Output – HDMI up to 4 K & VGA up to 1080P Multi Display – 1/2/3/4/5/6/7/8/9/10/12/13/16 R
Playback – 16 CH Simultaneous Playback
Storage – 8× SATA, up to 24TB HDD capacity
AI by Camera – Tripwire, Double Tripwire, Perimeter, Object Abandon/Missing, Loitering, Face Detection, Running, Parking, Crowd Detection, etc.
AI by NVR - Face Detection/ Recognition, Video Structuring, Tripwire, Double Tripwire, Running, Parking, Heatmap, etc. Processor - Industrial-grade embedded processor
Operating System - Embedded Linux OS

Specifications

Video and Audio
Compression Standard
Recording
Alarm
Intelligent Analytics
Face Recognition
AI Performance(AI by NVR
Storage
INTERFACE
General

Video and Audio

Channel

Incoming Bandwidth

160Mbps(AI on: 120Mbps)

Outgoing Bandwidth

160Mbps(AI on: 80Mbps)

Resolution

16MP/12MP/8MP/6MP/5MP/ 4MP/3MP/1080P/UXGA/720P/ VGA/4CIF/DCIF/2CIF/CIF/ QCIF

Preview Decoding Capability

16MP(30fps)×2, 12MP(30fps) ×3, 8MP(30fps)×5, 6MP(30fps) ×6, 5MP(30fps)×8, 4MP(30fps) ×10, 3MP(30fps)×13, 1080P (30fps)×16

Playback Decoding Capability

16MP(30fps)×2, 12MP(30fps) ×3, 8MP(30fps)×5, 6MP(30fps) ×6, 5MP(30fps)×8, 4MP(30fps) ×10, 3MP(30fps)×13, 1080P (30fps)×16

Compatibility

ONVIF(Profile S/T/G), CGI, SDK, P2P

HDMI Output VGA Output H

HDMI: 800×600(60Hz), 1024×768(60Hz), 1280×720 (50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz), 1366×768 (60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz), (4K) 3840×2160(30Hz/60Hz)

VGA Output

VGA: 800×600(60Hz), 1024×768 (60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024 (60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080 (50Hz/60Hz)

Multi-screen Display

Independent Output: HDMI1/VGA1: 1/2A/2B/3/4/5/6 /7/8/9/10/12/13/16 HDMI2/VGA2: 1/2A/ 2B/3/4/5/6/7/8/9/10/12/13/16

Audio Input

1CH

Audio Output

1CH

Two-Way Audio

1CH

Compression Standard

Video Compression

Smart H.265+, H.265, Smart H.264+, H.264

Audio Compression

G.711A, G.711U, AAC, ADPCM_D

Stream Type

Video, Video & Audio

Network Protocol

802.1X, ARP, DDNS, DHCP, DNS, Easy DDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, Multicast, NFS, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMB/ CIFS, SMTP, SNMP v1/v2/v3, SRTP, SSH, SSL, TLSv1.2, TCP, UDP, Unicast, UPnP

Moblie Client System Compatibility

Android, iOS ONVIF(Profile S,T,G), RTSP, CGI, SDK, P2P

Web

I E 10+, Fir ef ox 52+, Edge89+, Safari11+, Chrome57+

Recording

Multi-channel Playback

Record Mode

Automatic, Manual Recording, Alarm Recording, Schedule Recording

Storage Method

Local HDD, eSATA

Backup

USB storage device, eSATA, Network

Playback Function

Play/Pause/Stop/Reverse/ Frame by Frame/Slow/Speed/ Backwards 30s/Forwards 30s /Full Screen/ Backup (Video Editing)/Step/ Digital Zoom/Instant Replay

Dual Stream Record

Yes

Alarm

General Alarm

Motion Detection, Mask Alarm, Alarm Input(IPC), Alarm Input (NVR)

Exception Notification

Video Loss, Network Disconnected, No Disk, Illegal Access, Disk group space alert, Disk Full, Disk R/W Error, Recording Abnormal, Abnormal found in smart of disk, Abnormal temperature of the disk, Hot-spare Exception, Array Exception, Voltage Alarm(IPC), RTC Failure, IP Address Conflict, MAC Address Conflict, Disk Overload

Alarm I/O

16CH IN / 4CH OUT

Intelligent Analytics

AI by Camera

Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Running, Parking, Heatmap, Loitering, Video Abnormal, Audio Abnormal, On Duty Detection, Crowd Detection, Safety Helmet Detection, Electric Bicycle Detection, People Counting, Link to Tracking, Smoke and Fire Detection, Environmental Temperature Measurement, Face Detection, Human Body Temperature Measurement, Smart Alarm, Face Recognition, Human/Vehicle Classification

AI by NVR

Face Detection, Face Recognition, Video Structuralization (excludes vehicle detection), Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Running, Parking, Heatmap, Sleeping on Duty Detection, On Duty Detection, Smart Motion Detection, Loitering, People Counting

VCA Search

Early-warning Search, Behavior Search, Safety Helmet Search, Thermographic Retrieval, Duty Search, Electric Bicycle Retrieval, Face Search(Search by face attributes/ event/ picture), Sleeping on Duty Detection, Smart Motion Detection, Human Search(Search by human attributes)

VCA Report

Heatmap, People Counting, Face Statistics

Face Recognition

Face Attributes Detection

Gender, Age, Glasses, Face Mask

Face Attributes Search

Gender, Age, Glasses, Face Mask, Body Temp

Face Recognition Performance

8-ch(1080P) video streams or 16-ch image streams

Face Picture Library

Up to 20 face libraries Up to 100000 base images

Face Picture Comparison

Supported

Video Structuralization Performance

8-ch(1080P) (excludes vehicle detection)

Human Attributes Detection

Gender, Age, Backpack, Face Mask, Glasses, Hair, Carrying Status, Top Color, Bottom Color, Top Type, Bottom Type, Riding Status, Hat

Human Attributes Search

Gender, Age, Backpack, Face Mask, Glasses, Hair, Carrying Status, Top Color, Bottom Color, Top Type, Bottom Type, Riding Status, Hat

AI Performance(AI by NVR

Perimeter/Tripwire Performance

8CH

Object Abandon/Missing Performance

8CH (1080P)

Sleeping on Duty Performance

8CH (1080P)

On Duty Performance

8CH (1080P)

Loitering/Running Performance

8CH (1080P)

Parking Performance

8CH (1080P)

Heatmap Performance

8CH (1080P)

Smart Motion Dection Performance

16CH

People Counting Performance

8CH (1080P)

Storage

Hard Disk Capacity

8 × SATA up to 24 TB

RAID

JBOD, RAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60

INTERFACE

eSATA

1×eSATA

USB

2 ×USB2.0, 1×USB3.0

Network Interface

2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port

RS-232

1×RS-232

RS-485

2 ×RS-485

General

Power Supply

100~240V AC

Power Consumption

≤18W (HDD not included

NetWeight

6.2Kg

GrossWeight

8.4Kg

Form Factor

19 Inch Rack Mountable

Boundary Dimensions

440(L) 455(W) 94(H) mm

Package Dimensions

565(L) 565(W) 220(H)mm

Operating Temperature

-10°C~+55°C (+14°F~+131°F)

Operating Humidity

10%~90%RH (non-condensing)

Storage Temperature

-20°C~+60°C (-4°F~+140°F)

Cyberv Security

HTTPS, secure boot, digitally signed firmware, secure firmware upgrade, configurable password policy, user authentication, audit logs
