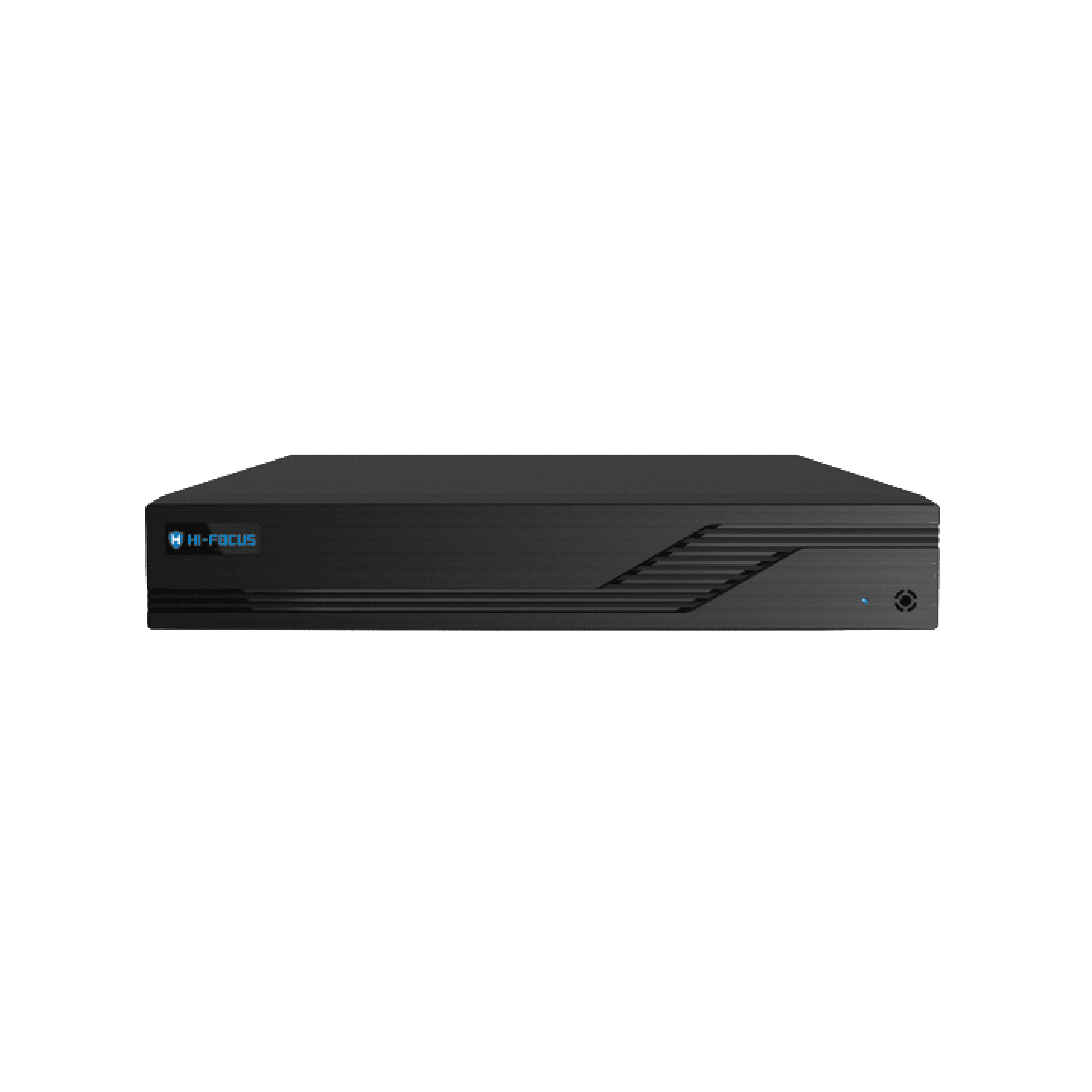

16 CHANNEL NETWORK VIDEO RECORDER
HD-NVR-5216T-B
Product Features
- 16 CH Support 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
- Adopt standard H.265 and H.264 high profile compression format to get high quality video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse,4K Output True High Resolution Display
- Multi-mode recording: manual / timer / motion / sensor
- Playback :16 CH simultaneous playback
- Search: time slice, time, event ( manual, sensor, motion ), tag search
- Express and flexible backup via USB, network and so on
- Pentaplex: preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol and CMS supported
- Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device, Multi-user online simultaneously
- Authorization management, log view and device status view,4K output, true high resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phone and PAD
- Powerful smart phone & Pad surveillance with iOS and Andriod OS
Specifications
- SYSTEM
- VIDEO
- AUDIO
- RECORD
- PLAYBACK
- NETWORK
- STORAGE
- BACK UP
- INTERFACE
- ELECTRICAL
- ENVIRONMENTAL
SYSTEM
OS
Embedded Linux
Main Processing Chip
ARM Cortex A17
VIDEO
Network Input
16 CH IPC input
Incoming Bandwidth
160Mbps
Outgoing Bandwidth
160Mbps
Video Compression
Smart H.265, H.265, H.264
Input Resolution
8MP, 6MP, 5MP,4MP,3MP,1080P,960P, 720P Real Time
Network Access
16 CH IPC Input
Output
HDMI×1: 3840×2160/1920×1080/1280×1024/1024×768 VGA×1:1920×1080/1280×1024/1024×768
AUDIO
Input
16 CH IPC audio input
2-way
RCA ×1
Local Output
RCA ×1
RECORD
Resolution
8MP/6MP/5MP/4MP/3MP/1080P/1280x1024 /960P/720P 960H/D1/CIF
Frame Rate
25fps/30fps (PAL/NTSC)
25fps/30fps (PAL/NTSC) B
32Kbps-10Mbps
Image Quality
5 Level
Simultaneous playback
Max. 16CH
PLAYBACK
Simultaneous Playback
Max 16 CH
NETWORK
Interface
RJ45 10/100/1000 Mbps × 1
Network Protocol
IPv4, IPv6, RTSP, UDP, SMTP, NTP, DDNS, DNS, HTTP, HTTPS, FTP, P2P, UPnP, NTP, DHCP, PPPoE, SnMP, ONVIF
STORAGE
HDD
SATA×2
Max Capacity for 1 Single HDD
10Tb
BACK UP
USB Backup
Yes
INTERFACE
Alarm In
8 CH local alarm input: Supports IPC alarm input
Alarm Output
4CH
Communication
RS485, connect to PTZ and keyboard
Remote
Optional
USB
USB2.0 x 1, USB3.0 x 1
ELECTRICAL
Power Supply
DC 12V/4A
Consumption
≤10W(with HDD)
ENVIRONMENTAL
Working Environment
-10～50 ℃, 10%～ 90% humidity
Dimensions(mm)
380×268×45 (W × D × H )
