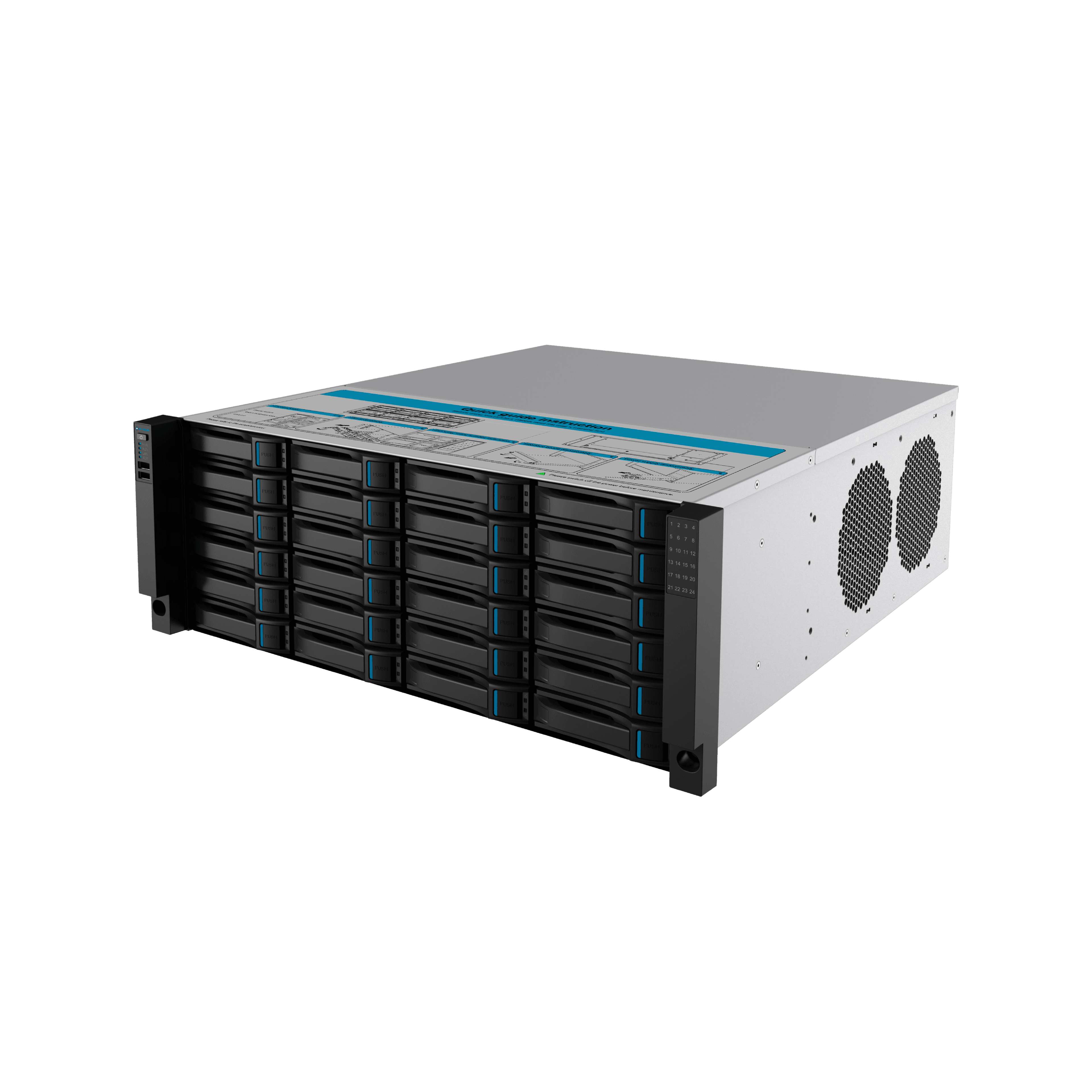

160 CHANNEL NETWORK VIDEO RECORDER
HD-NVR-524160I
Product Features
- 160 CH NVR – 800Mbps Incoming / 400Mbps Outgoing Bandwidth
- Max Resolution – 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Compression – Smart H.265+ / H.265 / H.264+ / H.264
- Video Output – HDMI Upto 4k & VGA up to 1080P
- Multi Display – 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40/64/80
- Playback – 16 CH Simultaneous Playback
- Storage – 24× SATA Up to 24TB HDD Capacity
- AI by Camera – Tripwire, Double Tripwire, Perimeter,
- Object Abandon/Missing, Loitering, Face Detection,
- Running, Parking, Crowd Detection etc.
Specifications
- Video and Audio
- Compression Standard
- Network
- Recording
- Alarm
- Intelligent Analytics
- Face Recognition
- Storage
- INTERFACE
- General
Video and Audio
Channel
160
Incoming Bandwidth
800Mbps
Outgoing Bandwidth
400Mbps
Resolution
16MP/12MP/8MP/6MP/5MP/4MP /3MP/1080P/UXGA/720P/VGA/ 4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability
16MP(30fps)×3, 12MP(30fps)×4, 8MP(30fps)×7, 6MP(30fps)×9, 5MP(30fps)×11, 4MP(30fps)×14, 3MP(30fps)×18, 1080P(30fps)× 28, 720P(30fps)×56, 4CIF (30fps)×80
Playback Decoding Capability
16MP(30fps)×3, 12MP(30fps)×4, 8MP(30fps)×6, 6MP(30fps)×8, 5MP(30fps)×9, 4MP(30fps)×12, 3MP(30fps)×16, 1080P(30fps)×16, 720P(30fps)×16
Compatibility
ONVIF(Profile S/T), RTSP
HDMI Output
HDMI: 800×600(60Hz), 1024×768(60Hz), 1280×720 (50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900 (60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz), (4K) 3840×2160(30Hz/60Hz)
VGA Output
VGA: 800×600(60Hz), 1024×768(60Hz), 1280×720 (50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900 (60Hz), 1920×1080(50Hz/60Hz)
Multi-screen Display
HDMI1/VGA1: 1/2/3/4/5/6/7/8/ 9/10/12/13/16/20A/20B/25/ 32/36/40/64/80 HDMI2: 1/ 2/3/4/5/6/7/8/9/10/12/13/16/ 20A/20B/25/32/36/40/64/80
Audio Input
1CH
Audio Output
1CH
Two-Way Audio
1CH
Compression Standard
Video Compression
Smart H.265+, H.265, Smart H.264, H.264
Audio Compression
G711A,G711U, AAC,ADPCM_DIV4
Stream Type
Video, Video & Audio
Network
Network Protocol
ARP, DDNS, DHCP, DNS, Easy DDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, Multicast, NFS, NTP, PPPoE, RTCP, RTP, RTSP, SMB/CIFS, SMTP, SNMP v1, SRTP, SSH, SSL, TLSv1.2, TCP/IP, UDP, Unicast, UPnP
Moblie Client
Android, iOS, P2P
System Compatibility
ONVIF(Profile S/T/G), RTSP, CGI, SDK, P2P
Web
IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
Recording
Multi-channel Playback
16
Record Mode
Manual Recording, Alarm Recording, Schedule Recording
Storage Method
Local HDD
Backup
USB storage device, Network
Playback Function
Play/Pause/Stop/Slow/ Speed/Backwards 30s/ Forwards 30s/Full Screen/ Backup (Video Editing)/ Step/Digital Zoom
Alarm
General Alarm
Motion Detection, Mask Alarm, Alarm Input(IPC), Alarm Input(NVR)
Exception Notification
Video Loss, Network Disconnected, No Disk, Illegal Access, Disk group space alert, Disk Full, Disk R/W Error, Recording Abnormal, Abnormal found in smart of disk, Abnormal t emperature of the disk, Hot spare Exception, Array Exception, Voltage Alarm(IPC), RTC Failure, IP Address Conflict, MAC Address Conflict
Alarm I/O
16CH IN, 4CH OUT
Intelligent Analytics
AI by Camera
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Running, Parking, Heatmap, Loitering, Video Abnormal, Audio Abnormal, License Plate Recognition, On Duty Detection, Crowd Detection, Parking Guard, Safety Helmet Detection, Electric Bicycle Detection, People Counting, Link to Tracking, Smoke and Fire Detection, Environmental Temperature Measurement, Face Detection, Human Body Temperature Measurement, Smart Alarm, Face Recognition, Human/Vehicle Classification
VCA Search
Heatmap, Early-warning Search, Behavior Search, License Plate Search, Safety Helmet Search, Thermographic Retrieval, Duty Search, Electric Bicycle Retrieval, Face Search
Face Recognition
Face Attributes Search
Gender, Age, Glasses, Face Mask, Body Temperature
Face Picture Library
Up to 300 face libraries ,Up to 100000 base images
Face Picture Comparison
Gender, Age, Glasses, Face Mask, Body Temperature
Storage
Hard Disk Capacity
24 SATA upto 24TB Hard Disk
RAID
JBOD, RAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60
Hot Swapping
Supported
INTERFACE
eSATA
1×eSATA
USB
2×USB2.0, 1×USB3.0
Network Interface
4 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
RS-232
1×RS232
RS-485
2×RS485
General
Power Supply
100~240V AC; Redundant Power Supply
Power Consumption
<45W (HDD not included)
NetWeight
15.4Kg
GrossWeight
20.55Kg
Boundary Dimensions
530(L)484.5(W)174.5(H)mm
Package Dimensions
780(L)710(W)330(H)mm
Operating Temperature
-10°C~+55°C (+14°F~+131°F)
Operating Humidity
10%~90%RH (non-condensing)
Storage Temperature
-20°C~+60°C (-4°F~+140°F)
