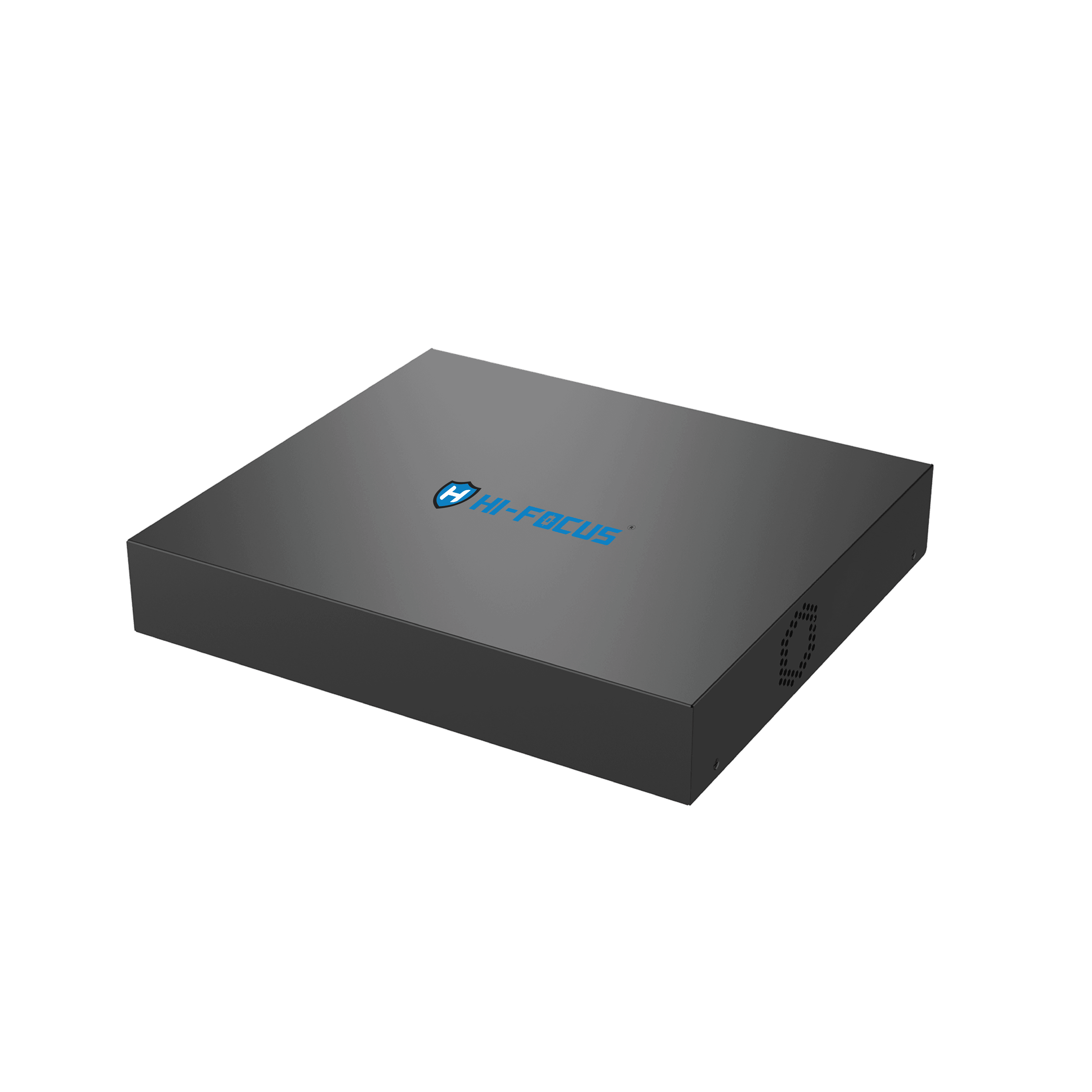

20 CHANNEL NETWORK VIDEO RECORDER

HD-NVR-4120I

Product Features

20 CH NVR – 100Mbps Incoming / 80Mbps Outgoing Bandwidth
Max Resolution – 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Compression – Smart H.265+ / H.265 / H.264+ / H.264
Video Output – HDMI Upto 4K & VGA up to 1080P
Multi Display – 1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/20B/20C/20D/25
Playback – 16 CH Simultaneous Playback
Storage – 1× SATA Up to 10TB HDD Capacity
AI by Camera – Tripwire, Double Tripwire, Perimeter,
Object Abandon/Missing, Loitering, Running, Parking,
Crowd Detection etc.

Specifications

Video and Audio
Compression Standard
Network
Recording
Alarm
Recording Intelligent Analytics
Face Recognition
Storage
INTERFACE
General

Video and Audio

Channel

Incoming Bandwidth

100Mbps

Outgoing Bandwidth

80Mbps

Resolution

8MP/6MP/5MP/4MP/3MP/ 1080P/UXGA/720P/VGA/4CIF/ DCIF/2CIF/CIF/QCIF

Preview Decoding Capability

8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16, 4CIF(30fps)×20

Playback Decoding Capability

8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16, 4CIF(30fps)×16

Compatibility

ONVIF(Profile S/T/G), CGI, SDK, P2P

HDMI Output

HDMI: 1024×768(60Hz), (720P) 1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024 (60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (2K)2560×1440(30Hz), (4K)3840×2160(30Hz)

VGA Output

VGA: 1024×768(60Hz), (720P ) 1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024 (60Hz),1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)

Multi-screen Display

Simultaneous Output: VGA: 1/2A/2B/3/4/5/6/7/8/9/10/ 12/13/16/20A/20B/20C/20D/25 HDMI: 1/2A/2B/3/4/5/6/7/8/9/10/ 12/13/16/20A/20B/20C/20D/25

Audio Output

1CH

Compression Standard

Video Compression

Smart H.265+, H.265, Smart H.264, H.264

Audio Compression

G.711A, G.711U, AAC, ADPCM_D

Stream Type

Video, Video & Audio

Network

Network Protocol

802.1X, ARP, DDNS, DHCP, DNS, Easy DDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, Multicast, NFS, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMB/CIFS, SMTP, SNMP v1/v2/v3, SRTP, SSH, SSL, TLSv1.2, TCP, UDP, Unicast, UPnP

Moblie Client

Android, iOS

Web

IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+

Recording

Multi-channel Playback

Record Mode

Manual Recording, Alarm Recording, Schedule Recording

Storage Method

Local HDD

Backup

USB storage device, Network

Playback Function

Play/Pause/Stop/Reverse/ Slow/Speed/Backwards 30s/ Forwards 30s/Full Screen/ Backup (Video Editing)/ Step/Digital Zoom/ Instant Replay

Dual Stream Record

Supported

Alarm

General Alarm

Motion Detection, Mask Alarm, Alarm Input(IPC)

Exception Notification

Video Loss, Network Disconnected, No Disk, Illegal Access, Disk group space alert, Disk Full, Disk R/W Error, Recording Abnormal, Abnormal found in smart of disk, Abnormal temperature of the disk, Hot-spare Exception, Voltage Alarm (IPC), RTC Failure, IP Address Conflict, MAC Address Conflict, Disk Overload

Recording Intelligent Analytics

AI by Camera

Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Running, Parking, Heatmap, Loitering, Video Abnormal, Audio Abnormal, On Duty Detection, Crowd Detection, Safety Helmet Detection, Electric Bicycle Detection, People Counting, Link to Tracking, Smoke and Fire Detection, Environmental Temperature Measurement, Face Detection, Human Body Temperature Measurement, Smart Alarm, Human/Vehicle Classification

VCA Search

Early-warning Search, Behavior Search, Safety Helmet Search, Thermographic Retrieval, Duty Search, Electric Bicycle Retrieval, Face Search

VCA Report

Heatmap, People Counting, Face Statistics

Face Recognition

Face Attributes Search

Gender, Age, Glasses, Face Mask, Body Temp.

Storage

Hard Disk Capacity

1×SATA Up to 10 TB capacity for each HDD

INTERFACE

USB

2×USB2.0

Network Interface

1×RJ-45, 10/100 Mbps self-adaptive Ethernet port

General

Power Supply

DC12V

Power Consumption

<10W (HDD not included)

NetWeight

0.8kg

GrossWeight

1.43kg

Boundary Dimensions

250(L)229(W)45(H)mm

Package Dimensions

385(L)80(W)280(H)mm

Operating Temperature

-10°C~+55°C (+14°F~+131°F)

Operating Humidity

10%~90%RH (non-condensing)

Storage Temperature

-20°C~+60°C (-4°F~+140°F)
