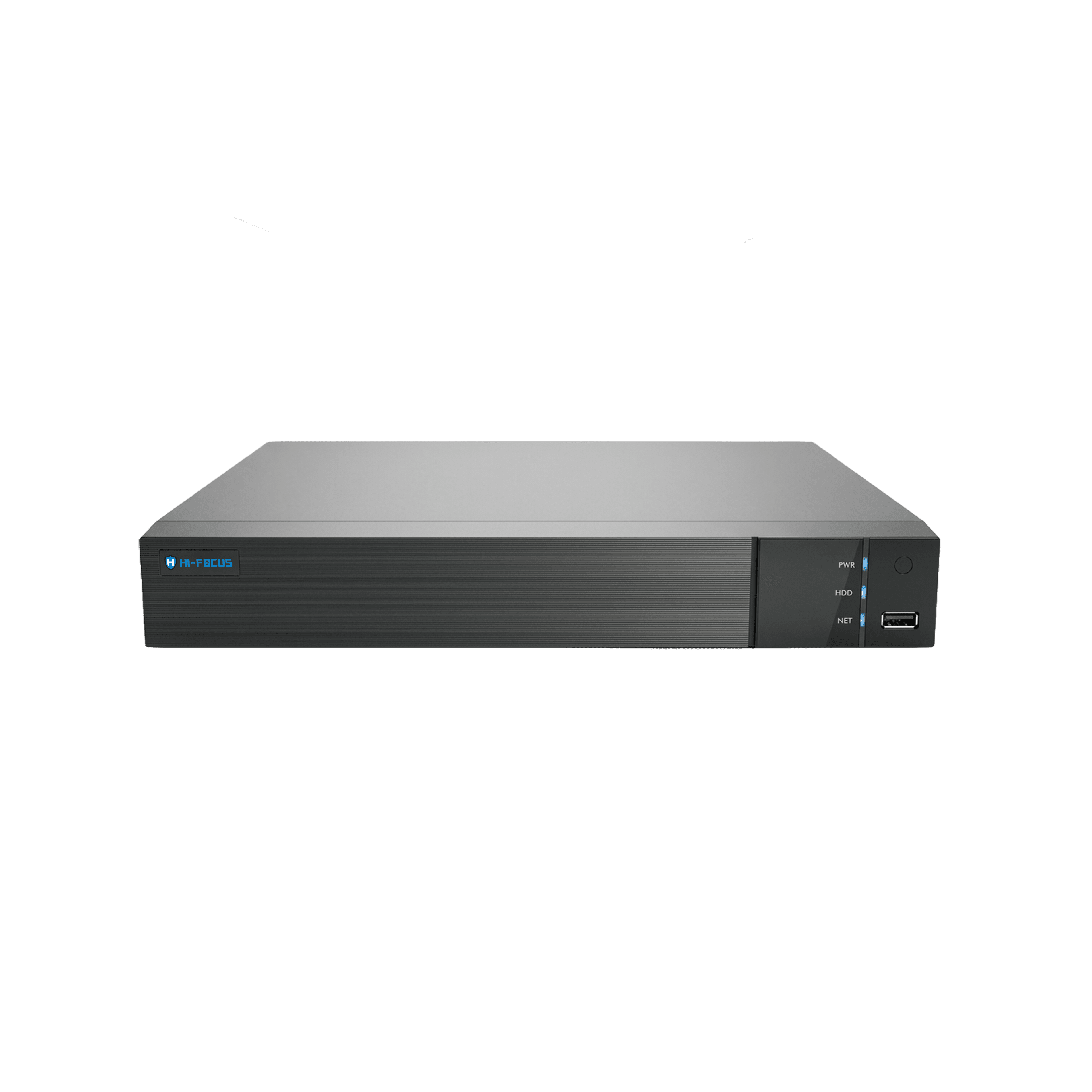

32 CHANNEL 2 SATA NETWORK VIDEO RECORDER

HD-NVR-5232T-A

Product Features

32 CH Support 8MP / 6MP/ 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse,4K Output True High Resolution Display
Multi-mode recording: manual / timer / motion / sensor
Playback :16 CH simultaneous playback
Search : time slice, time, event ( manual, sensor, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE Fnetwork protocol and CMS supported
Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device,Multi-user
online simultaneously
Authorization management, log view and device status view,4K output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phone and PAD
Powerful smart phone & Pad surveillance with iOS and Andriod OS

Specifications

SYSTEM
VIDEO
AUDIO
RECORD
PLAYBACK
ALARM
SMART
NETWORK
MOBILE DEVICE
STORAGE
BACK UP
PORT
ELECTRICAL
ENVIRONMENTAL

SYSTEM

OS

Embedded Linux

VIDEO

Network Input

32 CH IPC Input

Video Compression

Smart H.265, H.265, H.264

Incoming Bandwidth

160 Mbps

Outgoing Bandwidth

160 Mbps

Input Resolution

8MP,6MP,5MP,4MP,3MP,1080P,960P, 720@25/30fps

Output

HDMI×1: 3840×2160/1920×1080/1280×1024/ 1024×768 VGA×1:1920×1080/1280×1024/ 1024×768

AUDIO

Input

32 CH IPC audio input

2-way Audio

RCA ×1

Local Output

RCA ×1

RECORD

Resolution

8MP, 6MP, 5MP, 4MP,3MP,1080P,960P,720P

Record Stream

Dual Stream Recording

Mode

Manual, Timer, Motion, Sensor

PLAYBACK

Simultaneous Playback

Max 16 CH

Search

Time Slice/Time/Event/Tag Search

Smart Search

Highlighted Color to Display the Camera record in a Certain Period of Time, Different Color refer to Different Record Events

Function

Play, Pause, FF ,FB, Digital Zoom,etc

ALARM

Mode

Manual, Sensor, Motion, Exception

Input

8 CH Local alarm Input, 32 CH IPC Alarm Input

Output

4 CH

Triggering

Record, Snap, Preset, Email, etc

SMART

VCA Detection

Intrusion detection, Cross line detection Audio detection, Defocus detection, Object Left, Missing Object, Scene change detection, Auto tracking

VCA Search

Behavior search

NETWORK

Interface

RJ45 10/100/1000 Mbps × 1

Network Protocol

IPv4, IPv6, RTSP, UDP, SMTP, NTP, DDNS, DNS, HTTP, HTTPS, FTP, P2P, UPnP, NTP, DHCP, PPPoE, SnMP, ONVIF

Web Client

Multiple user online

MOBILE DEVICE

OS

iOS Andriod

STORAGE

HDD

SATA×2,max 8TB per HDD

RS 485

Yes (full-duplex), connect to PTZ or keyboard

BACK UP

Local Backup

U Disk,USB Mobile HDD

Network Backup

Yes

PORT

USB

USB 3.0×1,USB 2.0×1 (one in the front panel and other in the Rear panel)

Remote Controller

Yes

ELECTRICAL

Power Supply

DC12V/4A

Consumption

≤10W(without HDD)

ENVIRONMENTAL

Work Environment

-10~50 °C, 10%~ 90% humidity

Dimensions(mm)

380 × 268 × 45 ( W × D × H )
