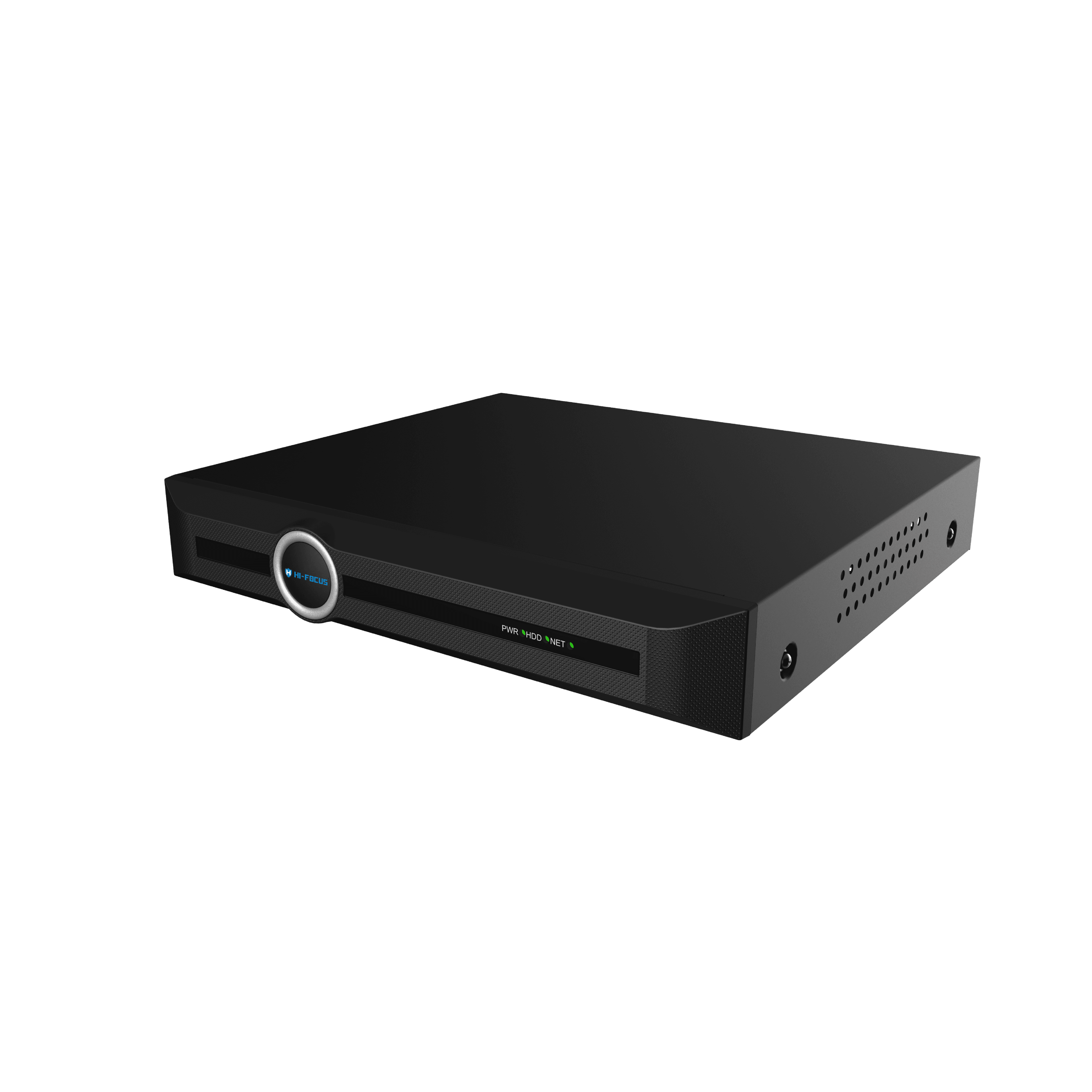

32 CHANNEL NETWORK VIDEO RECORDER

HD-NVR-2232I

Product Features

32 CH NVR – 160Mbps Incoming / 80Mbps Outgoing Bandwidth
Max Resolution – 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF Compression – Smart H.265+ / H.265 / H.264+ / H.264
Video Output – HDMI up to 4K & VGA up to 1080P R
Multi Display – 1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/ 20B/20C/20D/25
Playback – 16 CH Simultaneous
Playback Storage – 2× SATA Up to 10TB HDD Capacity
AI by Camera – Tripwire, Double Tripwire, Perimeter, Object Abandon/Missing, Loitering, Face Detection, Running, Parking, Crowd Detection, etc.

Specifications

Video and Audio
Compression Standard
Network
Recording
Alarm
Recording Intelligent Analytics
Face Recognition
Storage

Video and Audio

Channel

Incoming Bandwidth

160Mbps

Outgoing Bandwidth

80Mbps

Resolution

16MP/12MP/8MP/6MP/5MP/ 4MP/3MP/1080P/UXGA/720P/ VGA/4CIF/DCIF/2CIF/CIF/ QCIF

Preview Decoding Capability

16MP(30fps)×1,8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16, 4CIF(30fps)×32

Playback Decoding Capability

16MP(30fps)×1,8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16, 14CIF(30fps)×16

Third-party Camera Access

ONVIF(Profile S/T), RTSP

Compatibility

ONVIF(Profile S/T/G), RTSP, CGI, SDK, P2P

HDMI Output

HDMI: 1024×768(60Hz), (720P) 1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024 (60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (2K)2560×1440(30Hz), (4K)3840×2160(30Hz)

VGA Output

VGA: 1024×768(60Hz), (720P) 1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024 (60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)

Multi-screen Display

Simultaneous Output: VGA: 1/2A/2B/3/4/5/6/7/8/9/10 /12/13/16/20A/20B/25/32/36 HDMI: 1/2A/2B/3/4/5/6/7/8/9/10/ 12/13/16/20A/20B/25/32/36

Audio Input

1CH

Audio Output

1CH

Two-Way Audio

1CH

Compression Standard

Video Compression

Smart H.265+, H.265, Smart H.264, H.264

Audio Compression

G.711A; G.711U; AAC; ADPCM_D

Stream Type

Video, Video & Audio

Network

Network Protocol

802.1X, ARP, DDNS, DHCP, DNS, Easy DDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, Multicast, NFS, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMB/CIFS, SMTP, SNMP v1/v2/ v3, SRTP, SSH, SSL, TLSv1.2, TCP, UDP, Unicast, UPnP

Moblie Client

Android, iOS

System Compatibility

ONVIF(Profile S/T/G), RTSP, CGI, SDK, P2P

Web

IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+

Recording

Multi-channel Playback

Record Mode

Manual Recording, Alarm Recording, Schedule Recording

Storage Method

Local HDD

Backup

USB storage device, Network

Playback Function

Play/Pause/Stop/Reverse/ Slow/Speed/Backwards 30s/ Forwards 30s/Full Screen/ Backup (Video Editing)/ Step/Digital Zoom/ Instant Replay

Dual Stream Record

Supported

Alarm

General Alarm

Motion Detection, Mask Alarm,Alarm Input(IPC), Alarm Input(NVR)

Exception Notification

Video Loss, Network Disconnected, No Disk, Illegal Access, Disk group space alert, Disk Full, Disk R/W Error, Recording Abnormal, Abnormal found in smart of disk, Abnormal temperature of the disk, Hot-spare Exception, Voltage Alarm(IPC), RTC Failure, IP Address Conflict, MAC Address Conflict, Disk Overload

Alarm I/O

4CH IN / 2CH OUT

Recording Intelligent Analytics

AI by Camera

Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Running, Parking, Heatmap, Loitering, Video Abnormal, Audio Abnormal, On Duty Detection, Crowd Detection, Safety Helmet Detection, Electric Bicycle Detection, People Counting, Link to Tracking, Smoke and Fire Detection, Environmental Temperature Measurement, Face Detection, Human Body Temperature Measurement, Smart Alarm, Face Recognition, Human/Vehicle Classification

VCA Search

Early-warning Search, Behavior Search, Safety Helmet Search, Thermographic Retrieval, Duty Search, Electric Bicycle Retrieval, Face Search (Search by face attributes)

VCA Report

Heatmap, People Counting, Face Statistics

Face Recognition

Face Attributes Search

Gender, Age, Glasses, Face Mask, Body Temperature

Face Picture Library

Up to 10 face libraries, up to 20000 base images

Storage

Hard Disk Capacity

2 SATA upto 10TB HDD
