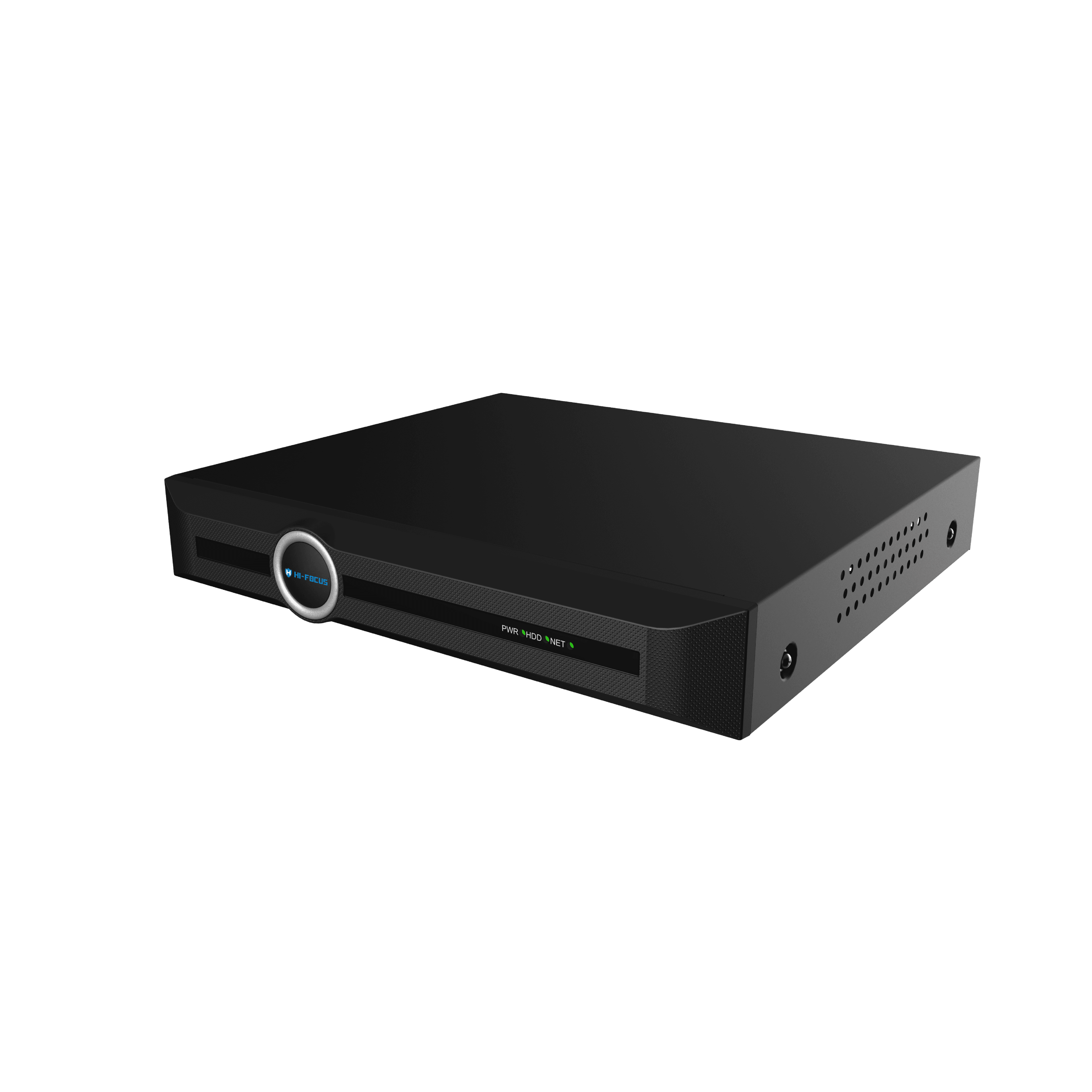

32 CHANNEL NETWORK VIDEO RECORDER
HD-NVR-5232I
Product Features
- 32 CH NVR – 160Mbps Incoming / 80Mbps Outgoing Bandwidth
- Max Resolution – 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Compression – Smart H.265+ / H.265 / H.264+ / H.264
- Video Output – HDMI Upto 4K & VGA up to 1080P
- Multi Display – 1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36
- Playback – 16 CH Simultaneous Playback
- Storage – 2× SATA Up to 10TB HDD Capacity
- AI by Camera – Tripwire, Double Tripwire, Perimeter,
- Object Abandon/Missing, Loitering, Face Detection,
- Running, Parking, Crowd Detection etc.
Specifications
- Video and Audio
- Compression Standard
- Network
- Recording
- Alarm
- Recording Intelligent Analytics
- Face Recognition
- Storage
- INTERFACE
- General
Video and Audio
Channel
32-ch
Incoming Bandwidth
160Mbps (AI mode: 120Mbps)
Outgoing Bandwidth
80Mbps
Resolution
16MP/12MP/8MP/6MP/5MP/ 4MP/3MP/1080P/UXGA/720P/ VGA/4CIF/DCIF/2CIF/CIF/ QCIF
Preview Decoding Capability
16MP(30fps)×1,8MP(30fps)×2, 6MP(30fps)×3, 5MP(30fps)×4, 4MP(30fps)×5, 3MP(30fps)×6, 1080P(30fps)×10, 720P(30fps) ×16, 4CIF(30fps)×16 (AI on:16MP (30fps)×1,8MP(30fps)×2, 6MP (30fps)×2, 5MP(30fps)×3, 4MP (30fps)×4, 3MP(30fps)×5, 1080P (30fps)×8, 720P(30fps)×16)
Compatibility
ONVIF(Profile S/T/G), CGI, SDK, P2P
HDMI Output
HDMI: 1024×768(60Hz), (720P) 1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024 (60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (2K)2560×1440(30Hz), (4K)3840×2160(30Hz)
VGA Output
1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024 (60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
Multi-screen Display
Simultaneous Output: VGA: 1/2A/2B/3/4/5/6/7/8/9/10/ 12/13/16/20A/20B/25/32/36 HDMI: 1/2A/2B/3/4/5/6/7/8/9/ 10/12/13/16/20A/20B/25/32/36
Audio Input
1CH
Audio Output
1×RCA
Two-Way Audio
1CH
Compression Standard
Video Compression
Smart H.265+, H.265; Smart H.264+; H.264
Network
Network Protocol
802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; QoS; RTCP; RTP; RTSP; SMB/ CIFS; SMTP; SNMP v1/v2/v3; SRTP; SSH; SSL; TLSv1.2; TCP; UDP; Unicast; UPnP
Moblie Client
Android, iOS
Web
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Recording
Multi-channel Playback
16
Record Mode
Manual Recording, Alarm Recording, Schedule Recording
Storage Method
USB storage device, Network
Playback Function
Play/Pause/Stop/Reverse/ Slow/Speed/Backwards 30s/ Forwards 30s/Full Screen/ Backup (Video Editing)/Step/ Digital Zoom/Instant Replay
Dual Stream Record
Supported
Alarm
General Alarm
Motion Detection, Mask Alarm,Alarm Input(IPC), Alarm Input(NVR)
Exception Notification
Video Loss; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot-spare Exception; Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict; Disk Overload
Alarm I/O
4CH IN / 1CH OUT
Recording Intelligent Analytics
AI by Camera
Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Running; Parking; Heatmap; Loitering; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Safety Helmet Detection; Electric Bicycle Detection; People Counting; Link to Tracking; Smoke and Fire Detection; Environmental Temperature Measurement; Face Detection; Human Body Temperature Measurement; Smart Alarm; Face Recognition; Human/Vehicle Classification
AI by NVR
Face Detection; Face Recognition; Tripwire; Double Tripwire; Perimeter; Smart Motion Detection
VCA Search
Early-warning Search; Behavior Search; Safety Helmet Search; Thermographic Retrieval; Duty Search; Electric Bicycle Retrieval; Face Search (Search by face attributes); Smart Motion Detection
VCA Report
Heatmap; People Counting; Face Statistics
Face Recognition
Face Attributes Detection
Gender, Age, Glasses, Face Mask
Face Attributes Search
Gender, Age, Glasses, Face Mask, Body Temperature
Face Recognition Performance
1-ch(Max.5MP) video streams or 4-ch image streams
Face Picture Library
Up to 10 face libraries, up to 20000 base images
Face Picture Comparison
Supported
Perimeter/Tripwire Performance by NVR
4CH
Smart Motion Dection Performance
4CH
Storage
Hard Disk Capacity
2 SATA upto 10TB HDD
INTERFACE
USB
2×USB2.0
Network Interface
1×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
General
Power Supply
DC12V
Power Consumption
≤10W
NetWeight
1.6 kg
GrossWeight
2.8kg
Dimensions
341(L)280(W)47(H)mm
Operating Temperature
-10~55°C
Operating Humidity
10%~90% RH
