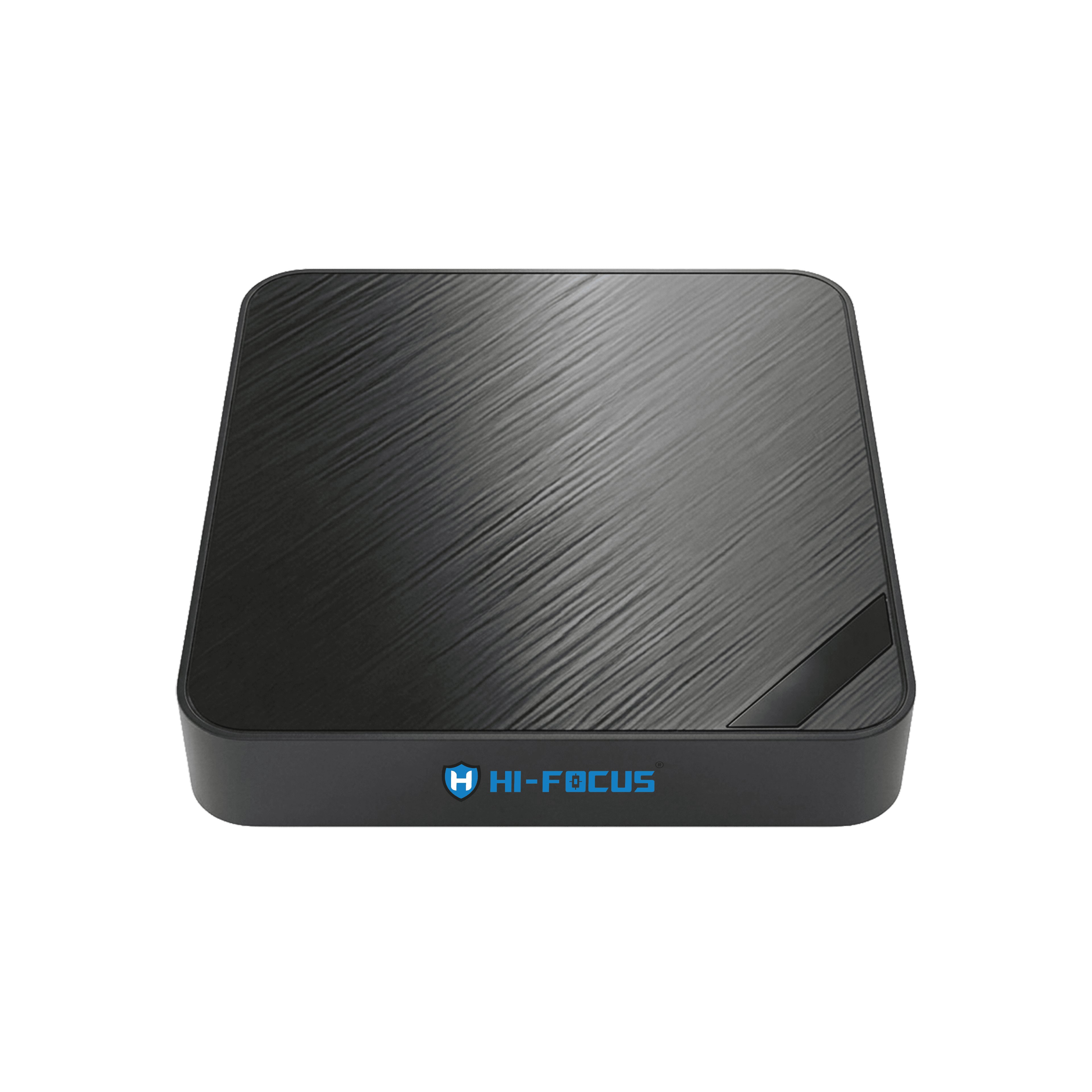

4 CHANNEL 1 SATA NETWORK VIDEO RECORDER
HD-NVR-4104TL-4P-4K
Product Features
- Support 4 CH 8MP/6MP/5MP/4MP/3MP/1080P/ 960P/720P/DI/CIF IP video input
- H.265S/H.265+/H.265/H.264 coding
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-type recording: manual / timed / motion / sensor / POS / AI recording
- Playback : 4 CH simultaneous playback
- Search : time slice, time, event, tag, smart search
- Support multiple VCA (Video Content Analytics) events, such as loitering detection, object abandoned/missing,
- region intrusion/entrance/exiting, line crossing, video exception, etc
- Express and flexible backup via USB, network and so on
- Express and flexible backup via USB, network and so on
- 4 PoE network ports; IPCs can be directly connected to NVR; PoE power supply supported
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote
- surveillance with mobile device
- Authorization management, log view and device status view
- 4K HD output, true high resolution display
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Android OS
Specifications
- SYSTEM
- VIDEO
- AUDIO
- RECORD
- PLAYBACK
- DECODING CAPABILITY
- ALARM
- NETWORK
- SMART
- MOBILE DEVICE
- STORAGE
- BACKUP
- PORT
- POE
- GENERAL
SYSTEM
OS
Embedded Linux
VIDEO
Network Input
4 CH IPC input
Incoming Bandwidth
40Mbps
Outgoing Bandwidth
64Mbps
Input Resolution
8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF
Output
HDMI × 1 : 3840×2160/1920 × 1080 / 1280 × 1024/ 1024 × 768
Compression
H.265S / H.265+ /H.265 /H.264
Multi-screen Display
1 / 4
AUDIO
Input
4 CH IPC audio input
2-way Audio
No
Local Output
No (HDMI supports the audio output)
Compression
G.711(U/A)
RECORD
Resolution
8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF
Frame Rate
30fps/25fps(NTSC/PAL)
PLAYBACK
Simultaneous Playback
Max 4 CH
Search
Time Slice/Time/Event/Tag Search
Smart Search
Highlighted Color to Display the Camera record in a Certain Period of Time, Different Color refer to Different Record Events.
Function
Play, Pause, FF ,FB, Digital Zoom,etc
DECODING CAPABILITY
Live/Playback
1× 8MP@30fps; 4×1080P@30fps;
ALARM
Type
Manual, sensor, motion, exception, smart events, etc.
Input
Support IPC alarm input
Output
Support IPC alarm output
Triggering
Record, snapshot, preset, e-mail, etc
NETWORK
Interface
RJ 45 100Mbps × 1
Protocol
TCP/IP, HTTP, HTTPS, 802.1x, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP
Client Connection
Max. 64 users access
SMART
Face Detection Performance (AI by IPC)
4 CH
Face Detection Performance (AI by Device)
No
Human/Vehicle Classification (AI by IPC)
4 CH
Human/Vehicle Classification (AI by Device)
No
Human/Vehicle Attribute Analysis (AI by IPC)
Yes
Fisheye
Supports fisheye dewarping via Web Client/mobile APP
Plate Recognition
No
Other AI Events (AI by IPC)
Loitering detection, abandoned/missing object detection, video exception detection
MOBILE DEVICE
OS
iOS/Andriod
STORAGE
HDD Interface
SATA3.0 × 1, max 10T per HDD
BACKUP
Local Backup
U disk, USB mobile HDD
Network Backup
Yes
PORT
USB
USB 2.0 × 2
Remote Controller
No
POE
PoE Ports
100M RJ45 × 4
Standards
IEEE802.3AF/AT
Output Power
≤ 36W
GENERAL
Power Supply
DC 48V/1A
Consumption
≤ 5W ( without HDD, and PoE off )
Dimensions (mm)
202 × 202 × 42.5 ( W × D × H )
Working Environment
-10 ~ 50 °C,10% ~ 90% humidity
