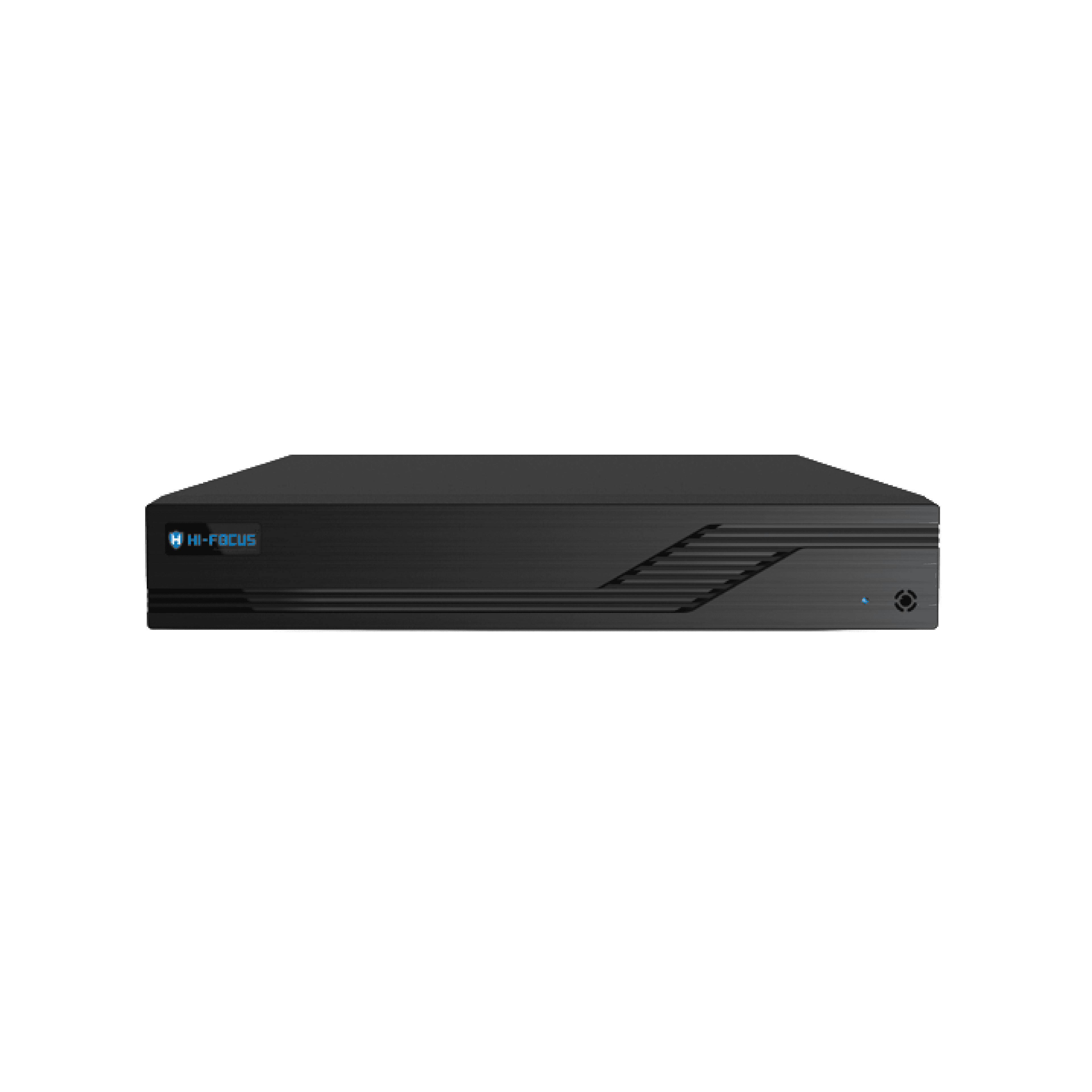

4 CHANNEL NETWORK VIDEO RECORDER
HD-NVR-4104TL-B
Product Features
- 4 CH Support 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
- Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
- Multi-mode recording: manual / timer / motion
- Playback : 4 / 8 CH simultaneously playback
- Search: time slice, time, event ( manual, Sensor,Motion ), tag search
- Express and flexible backup via USB, network and so on Pentaplex: preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol,and CMS supported
- Remote control via IE or CMS: Preview, Playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Multi-user online simultaneously
- Authorization management, log review and device status review
- Support 1080P output, true high resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QR Code Scanning by Mobile Phone and PAD
- Powerful Smart Phone&Pad Surveillance with iOS and Andriod OS
Specifications
- SYSTEM
- VIDEO
- AUDIO
- RECORD
- PLAYBACK
- NETWORK
- STORAGE
- BACKUP
- INTERFACE
- ELECTRICAL
- ENVIRONMENTAL
SYSTEM
Compression
H.265 Standard
Main Processing Chip
Hi3536D
OS
Embedded Linux
VIDEO
Incoming Bandwidth
40 Mbps
Outcoming Bandwidth
40 Mbps
Video Compression
Smart H.265, H.265, H.264
Input Resolution
6MP, 5MP, 4MP, 3MP,1080P,960P,720P real time
Network Access
4 CH IPC Input
Output
HDMI×1:1920×1080/1280×1024/1024×768 VGA×1:1920×1080/1280×1024/1024×768
AUDIO
Input
4 CH IPC Audio Input
Local Output
No ( HDMI supports the audio output )
Compression
G.711(U/A)
RECORD
Resolution
6MP, 5MP,4MP,3MP,1080P,960P,720P
Frame Rate
30fps/25fps(NTSC/PAL)
Bit Rate
32Kbps~6Mbps
Image Quality
5 Level
PLAYBACK
Simultaneous Playback
Max 4 CH
NETWORK
Interface
RJ45 10/100Mbps × 1
Network Protocol
IPv4, IPv6, RTSP, UDP, SMTP, NTP, DDNS, DNS, HTTP, HTTPS, FTP, P2P, UPnP, NTP, DHCP, PPPoE, SnMP, ONVIF
STORAGE
HDD
SATA×1
Max Capacity for 1 single HDD
10T
BACKUP
USB Backup
Yes
INTERFACE
USB
USB 2.0 ×2
ELECTRICAL
Power Supply
DC 12V
Consumption
Consumption
ENVIRONMENTAL
Working Environment
-10 ～ 50 ℃，10% ～ 90% humidity
Dimension(mm)
255 × 222 × 42 ( W × D × H )
Case
Mini 1U
