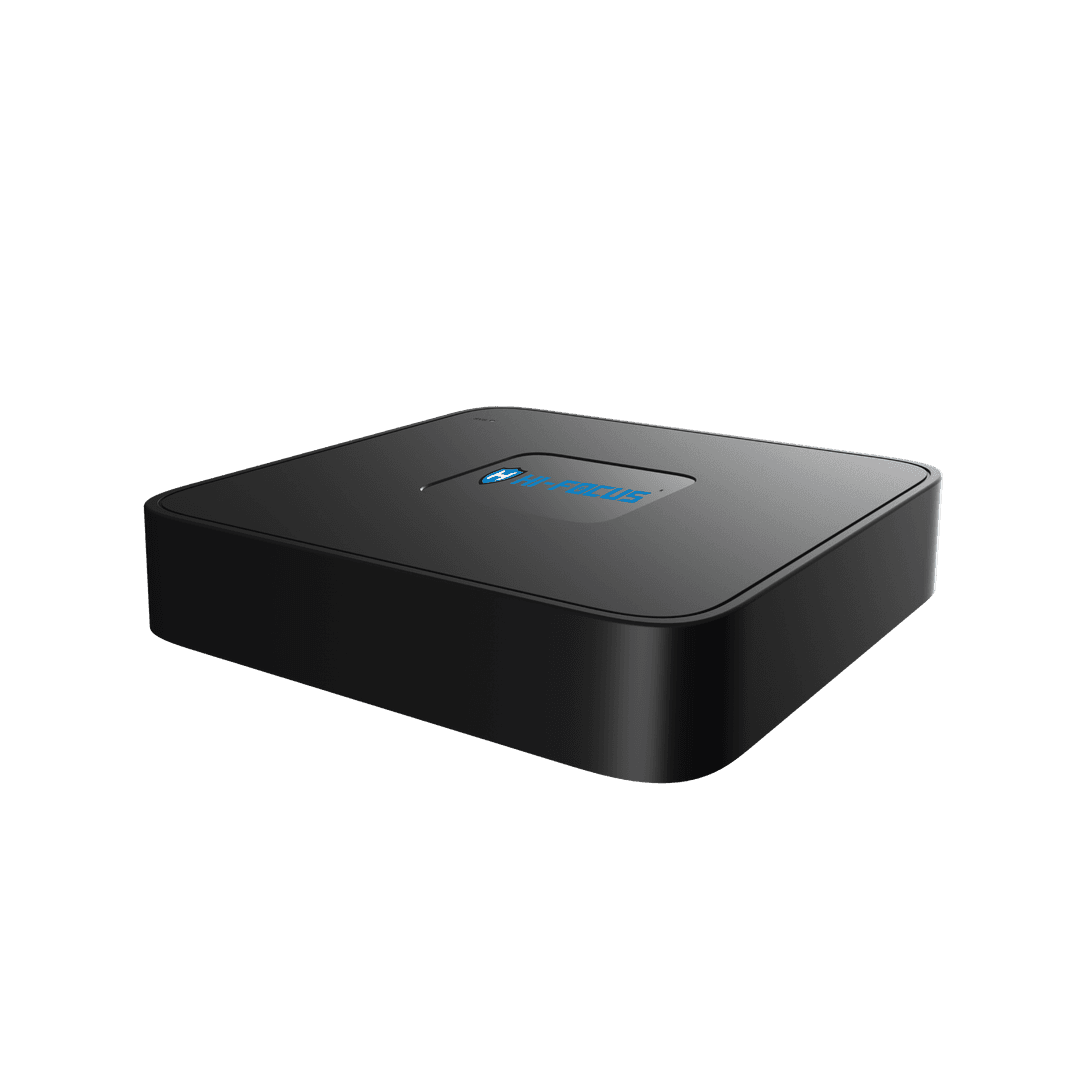

4 CHANNEL PoE NETWORK VIDEO RECORDER

HD-NVR-2104I-4P

Product Features

4CH NVR – 60Mbps Incoming / 40Mbps Outgoing Bandwidth
Max Resolution – 6MP/5MP/4MP/3MP/1080P/UXGA/ 720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Compression – Smart H.265+ / H.265 / H.264+ / H.264
Video Output – HDMI & VGA up to 1080P
Multi Display – 1/2/3/4CH Split
Playback – 4CH Simultaneous Playback
Storage – 1×SATA, Up to 8TB HDD Capacity
AI by Camera – Human & Vehicle Classification
PoE – 4 Ports, 32W Budget (30W/Port)
Compatibility – ONVIF (Profile S/T), CGI, SDK, P2P

Specifications

Video and Audio
Compression Standard
Network
Recording
Alarm
Intelligent Analytics
Storage
External Port
PoE
General

Video and Audio

Channel

Incoming Bandwidth

60Mbps

Outgoing Bandwidth

40Mbps

Resolution

6MP/5MP/4MP/3MP/1080P/ UXGA/720P/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Playback Decoding Capability

6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4, 4CIF(30fps)×4

Compatibility

ONVIF(Profile S/T), CGI, SDK, P2P

HDMI Output

HDMI: 1024×768(60Hz), (720P ) 1280×720(50Hz/60Hz), 1280×800 (60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)

VGA Output

VGA: 1024×768(60Hz), (720P ) 1280×720(50Hz/60Hz), 1280×800 (60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz

Multi-screen Display

Simultaneous Output: VGA: 1/2/3/4 HDMI: 1/2/3/4

Compression Standard

Video Compression

Smart H.265+, H.265, Smart H.264+, H.264

Audio Compression

G711A, G711U, ADPCM_DIV4

Stream Type

Video, Video & Audio

Network

Network Protocol

ARP, DDNS, DHCP, DNS, Easy DDNS, HTTP, ICMP, IGMP, IPv4, IPv6, NTP, RTCP, RTP, RTSP, SSH, TCP, UDP, Unicast, UPnP

Moblie Client

Android, iOS, P2P

Web

IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+

Recording

Multi-channel Playback

Up to 4 channels

Record Mode

Alarm Recording, Schedule Recording

Storage Method

Local HDD

Playback Function

Play/Pause/Stop/Slow/Speed/ Backwards 30s/Forwards 30s/ Full Screen/Backup (Video Editing)/Digital Zoom

Alarm

General Alarm

Motion Detection, Mask Alarm, Alarm Input(IPC)

Exception Notification

Video Loss, Network Disconnected, No Disk, Illegal Access, Disk Full, Disk R/W Error, Recording Abnormal, Abnormal found in smart of disk, Abnormal temperature of the disk, PoE Overload, Voltage Alarm (IPC), RTC Failure, IP Address Conflict, MAC Address Conflict

Intelligent Analytics

AI by Camera

Smart Alarm, Human/ Vehicle Classification

Storage

Hard Disk Capacity

1×SATA interface , Up to 6 TB capacity for each HDD

External Port

USB

2×USB2.0

HDMI

1×HDMI

VGA

1×VGA

Network Interface

1×RJ-45, 10/100 Mbps self-adaptive Ethernet port

PoE

PoE Interface

4×RJ45, 10/100 Mbps self-adaptive Ethernet port

PoE Budget

32W

Power per PoE Port

30W

Standard

IEEE 802.3 af/at

General

Power Supply

DC48V

Power Consumption

<10W(without HDD&without PoE)

NetWeight

0.44kg

GrossWeight

0.81kg

Boundary Dimensions

200(L)200(W)43(H)mm

Package Dimensions

315(L)70(W)235(H)mm

Operating Temperature

-10°C~+55°C (+14°F~+131°F)

Operating Humidity

10%~90%RH (non-condensing)

Storage Temperature

-20°C~+60°C (-4°F~+140°F)
