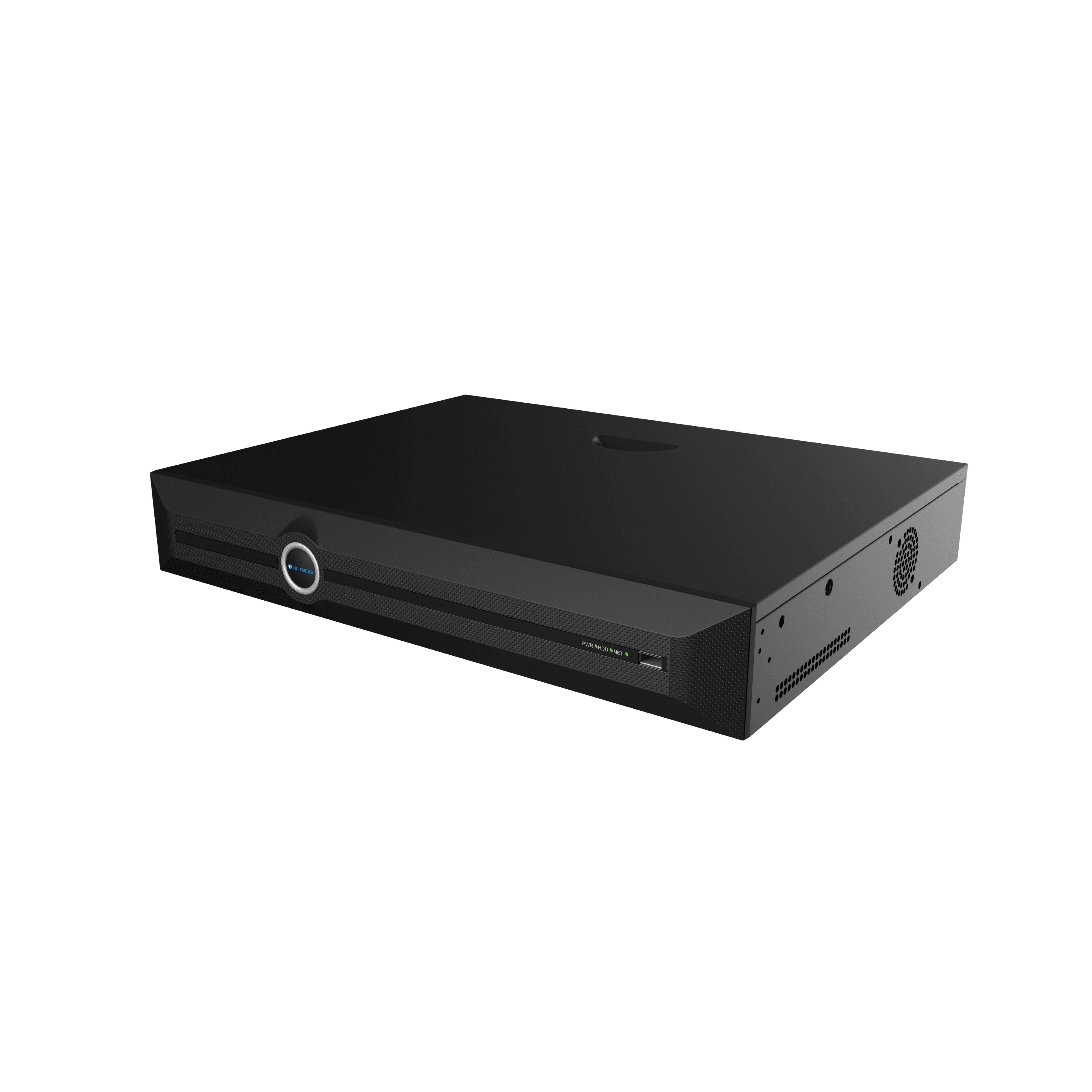

40 CHANNEL NETWORK VIDEO RECORDER

HD-NVR-5440I

Product Features

40 CH NVR – 400Mbps Incoming / 400Mbps Outgoing Bandwidth
Max Resolution – 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/
UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Compression – Smart H.265+ / H.265 / H.264+ / H.264
Video Output – HDMI Upto 4K & VGA up to 1080PR
Multi Display – 1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40
Playback – 16 CH Simultaneous Playback
Storage – 4× SATA Up to 10TB HDD Capacity
AI by Camera – Tripwire, Double Tripwire, Perimeter,
Object Abandon/Missing, Loitering, Face Detection,
Running, Parking, Crowd Detection etc.

Specifications

Video and Audio
Compression Standard
Network
Recording
Alarm
Intelligent Analytics
Face Recognition
Storage
INTERFACE
General

Video and Audio

Channel

Incoming Bandwidth

400Mbps

Outgoing Bandwidth

400Mbps

Resolution

16MP/12MP/8MP/6MP/5MP/4MP /3MP/1080P/UXGA/720P/VGA/ 4CIF/DCIF/2CIF/CIF/QCIF

Preview Decoding Capability

16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×5, 6MP(30fps)×6, 5MP(30fps)×8, 4MP(30fps)×10, 3MP(30fps)×13, 1080P(30fps) ×20, 720P(30fps)×40, 4CIF (30fps)×40

Playback Decoding Capability

16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×5, 6MP(30fps)×6, 5MP(30fps)×8, 4MP(30fps)×10, 3MP(30fps)×13, 1080P(30fps) ×20, 720P(30fps)×40, 4CIF(30fps)×40

Compatibility

ONVIF(Profile S/T/G), CGI, SDK, P2P

HDMI Output

HDMI: 800x600(60Hz), 1024x768(60Hz), 1280x720 (50Hz/60Hz), 1280x800(60Hz), 1366x768(60Hz), 1440x900(60Hz), 1920x1080 (50Hz/60Hz), 2560x1440 (30Hz/60Hz),2560x1600(60Hz), 3840x2160(30Hz/60Hz)

VGA Output

VGA: 800x600(60Hz), 1024x768(60Hz), 1280x720 (50Hz/60Hz), 1280x800(60Hz), 1366x768(60Hz), 1440x900 (60Hz), 1920x1080(50Hz/60Hz)

Multi-screen Display

HDMI: 1/2A/2B/3/4/5/6/7/8/9/10/ 12/13/16/20A/20B/25/32/36/40 VGA: 1/2A/2B/3/4/5/6/7/8/9/10/ 12/13/16/20A/20B/25/32/36/40

Audio Input

1CH

Audio Output

1CH, RCA

Two-Way Audio

1CH

Compression Standard

Video Compression

Smart H.265+, H.265; Smart H.264+; H.264

Audio Compression

G711A, G711U, AAC, ADPCM_D

Stream Type

Video, Video & Audio

Network

Network Protocol

ARP, DDNS, DHCP, DNS, Easy DDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, Multicast,NFS, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMB/CIFS, SMTP, SNMP, SRTP, SSH, SSL, TLSv1.2,TLSv1.3, TCP/IP, UDP, Unicast, UPnP, 802.1X

Moblie Client

Android, iOS

Web

IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+

Recording

Multi-channel Playback

Record Mode

Manual Recording, Alarm Recording, Schedule Recording

Storage Method

Local HDD

Backup

USB storage device, Network

Playback Function

Play/Pause/Stop/Reverse/ Slow/Speed/Backwards 30s/ Forwards 30s/Full Screen/ Backup (Video Editing)/Step/ Digital Zoom/Instant Replay

Dual Stream Record

Supported

Alarm

General Alarm

Motion, Mask Alarm, Alarm Input(IPC), Alarm Input(NVR)

Exception Notification

Video Loss, Network Disconnected, No Disk, Illegal Access, Disk group space alert, Disk Full, Disk R/W Error, Recording Abnormal, Abnormal found in smart of disk, Abnormal temperature of the disk, Hot-spare Exception, Array Exception, Voltage Alarm(IPC), RTC Failure, IP Address Conflict, MAC Address Conflict, Disk Overload

Alarm I/O

16CH IN / 4CH OUT

Intelligent Analytics

AI by Camera

Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Running, Parking, Heatmap, Loitering, Video Abnormal, Audio Abnormal, On Duty Detection, Crowd Detection, Electric Bicycle Detection, People Counting, Link to Tracking, Smoke and Fire Detection, Environmental Temperature Measurement, Face Detection, Human Body Temperature Measurement, Smart Alarm, Face Recognition, Human/Vehicle Classification

VCA Search

Early-warning Search, Behavior Search, Thermographic Retrieval, Duty Search, Electric Bicycle Retrieval, Face Search (Search by face attributes/event)

VCA Report

Heatmap, People Counting, Face Statistics

Face Recognition

Face Attributes Detection

Gender, age, glasses, Face mask, Body temperature

Face Picture Library

Up to 300 face libraries Up to 100000 base images

Face Picture Comparison

Supported

Storage

Hard Disk Capacity

4 SATA ports,up to 10 TB

RAID

JBOD, RAID0, RAID1, RAID5, RAID6, RAID10

INTERFACE

USB

1xUSB2.0, 1xUSB3.0

Network Interface

2 x RJ-45,10/100/1000 Mbps self-adaptive Ethernet port

RS-232

1 x RS232

RS-485

1 x RS485

General

Power Supply

DC12V

Power Consumption

＜15W(HDD not included)

NetWeight

3.3Kg

GrossWeight

5.05Kg

Boundary Dimensions

440(L)351(W)75(H)mm

Package Dimensions

540(L)175(W)455(H)mm

Operating Temperature

-10°C～+55°C

Operating Humidity

10%~90%RH

Storage Temperature

-20°C~+60°C (-4°F~+140°F)
