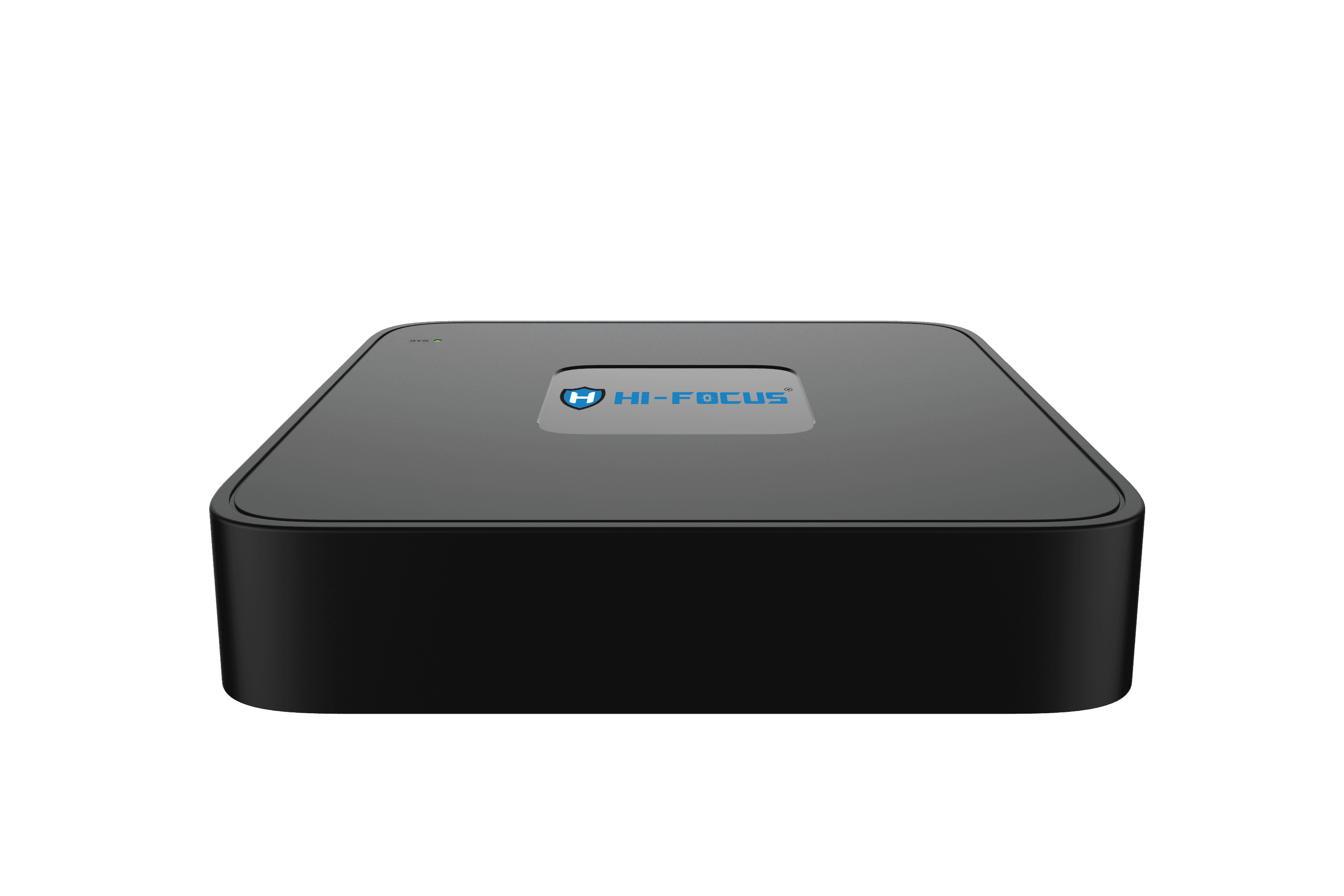

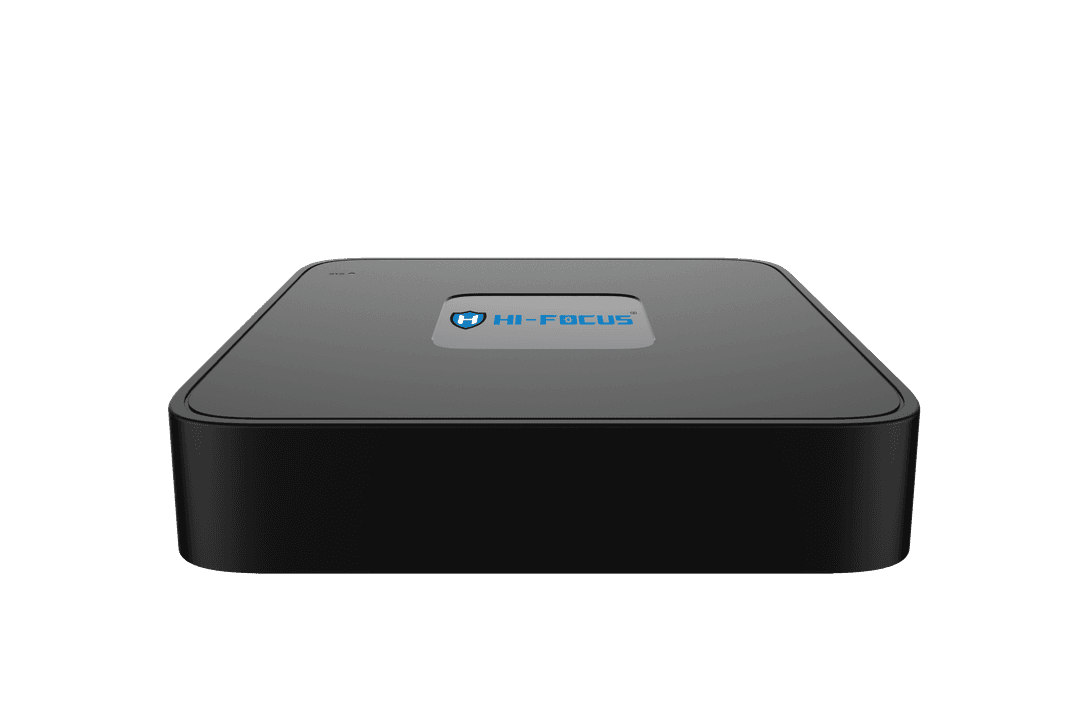

5 CHANNEL NETWORK VIDEO RECORDER
HD-NVR-2105I
Product Features
- 5CH NVR – 60Mbps Incoming / 40Mbps Outgoing Bandwidth
- Max Resolution – 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Compression – Smart H.265+ / H.265 / H.264+ / H.264
- Video Output – HDMI Upto 4k & VGA up to 1080P
- Multi Display – 1/2A/2B/3/4/5/6
- Playback – 4CH Simultaneous Playback
- Storage – 1×SATA, Up to 8TB HDD Capacity
- AI by Camera – Human & Vehicle Classification
- Compatibility – ONVIF (Profile S/T), CGI, SDK, P2P
Specifications
- Video and Audio
- Compression Standard
- Network
- Recording
- Alarm
- Intelligent Analytics
- Storage
- External Port
- General
Video and Audio
Channel
5
Incoming Bandwidth
60Mbps
Outgoing Bandwidth
40Mbps
Resolution
8MP/6MP/5MP/4MP/3MP/ 1080P/UXGA/720P/VGA/4CIF/ DCIF/2CIF/CIF/QCIF
Preview Decoding Capability
8MP(30fps)×1, 6MP(30fps)×2, 5MP(30fps)×2, 4MP(30fps)×3, 3MP(30fps)×4, 1080P(30fps)×5, 720P(30fps)×5, 4CIF(30fps)×5
Playback Decoding Capability
8MP(30fps)×1, 6MP(30fps)×2, 5MP(30fps)×2, 4MP(30fps)×3, 3MP(30fps)×4, 1080P(30fps)×4, 720P(30fps)×4, 4CIF(30fps)×4
Compatibility
ONVIF(Profile S/T),CGI, SDK, P2P
HDMI Output
HDMI: 1024×768(60Hz), (720P ) 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768 (60Hz),1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (4K) 3840×2160(30Hz)
VGA Output
VGA: 1024×768(60Hz), (720P ) 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768 (60Hz),1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
Multi-screen Display
Simultaneous Output: VGA: 1/2A/2B/3/4/5/6 HDMI: 1/2A/2B/3/4/5/6
Compression Standard
Video Compression
Smart H.265+, H.265, Smart H.264+, H.264
Audio Compression
G711A, G711U, ADPCM_DIV4
Stream Type
Video, Video & Audio
Network
Network Protocol
802.1X, ARP, DDNS, DHCP, DNS, Easy DDNS, HTTP, HTTPS ICMP, IGMP, IPv4, IPv6, Multicast, NTP, RTCP, RTP, RTSP, SRTP, SSH, TLSv1.2, TCP, UDP, Unicast, UPnP
Moblie Client
Android, iOS, P2P
System Compatibility
RTSP, CGI, SDK, P2P
Web
IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
Recording
Multi-channel Playback
Up to 4 channels
Record Mode
Manual Recording, Alarm Recording, Schedule Recording
Storage Method
Local HDD
Backup
USB storage device
Playback Function
Play/Pause/Stop/Slow/Speed/ Backwards 30s/Forwards 30s/ Full Screen/Backup (Video Editing)/Step/ Digital Zoom/Instant Replay
Dual Streaming
Supported
Alarm
General Alarm
Motion Detection, Mask Alarm, Alarm Input(IPC)
Exception Notification
Video Loss, Network Disconnected, No Disk, Illegal Access, Disk group space alert, Disk Full, Disk R/WError, Recording Abnormal, Abnormal found in smart of disk, Abnormal temperature of the disk,Voltage Alarm(IPC), RTC Failure, IP Address Conflict, MAC Address Conflict
Intelligent Analytics
AI by Camera
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Running, Parking, Loitering,Video Abnormal, Audio Abnormal, On Duty Detection, Crowd Detection, Smart Alarm, Human/VehicleClassification
VCA Search
Early-warning Search
Storage
Hard Disk Capacity
1×SATA interface, Up to 10 TB capacity for each HDD
External Port
USB
2×USB2.0
HDMI
1×HDMI
VGA
1×VGA
Network Interface
1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
General
Power Supply
DC12V
Power Consumption
<10W(HDD not included, idling)
NetWeight
0.4 kg
GrossWeight
0.7 kg
Boundary Dimensions
201(L)202(W)43(H)mm
Package Dimensions
315(L)70(W)235(H)mm
Operating Temperature
-10°C~+55°C (+14°F~+131°F)
Operating Humidity
10%~90%RH (non-condensing)
Storage Temperature
-20°C~+60°C (-4°F~+140°F)
