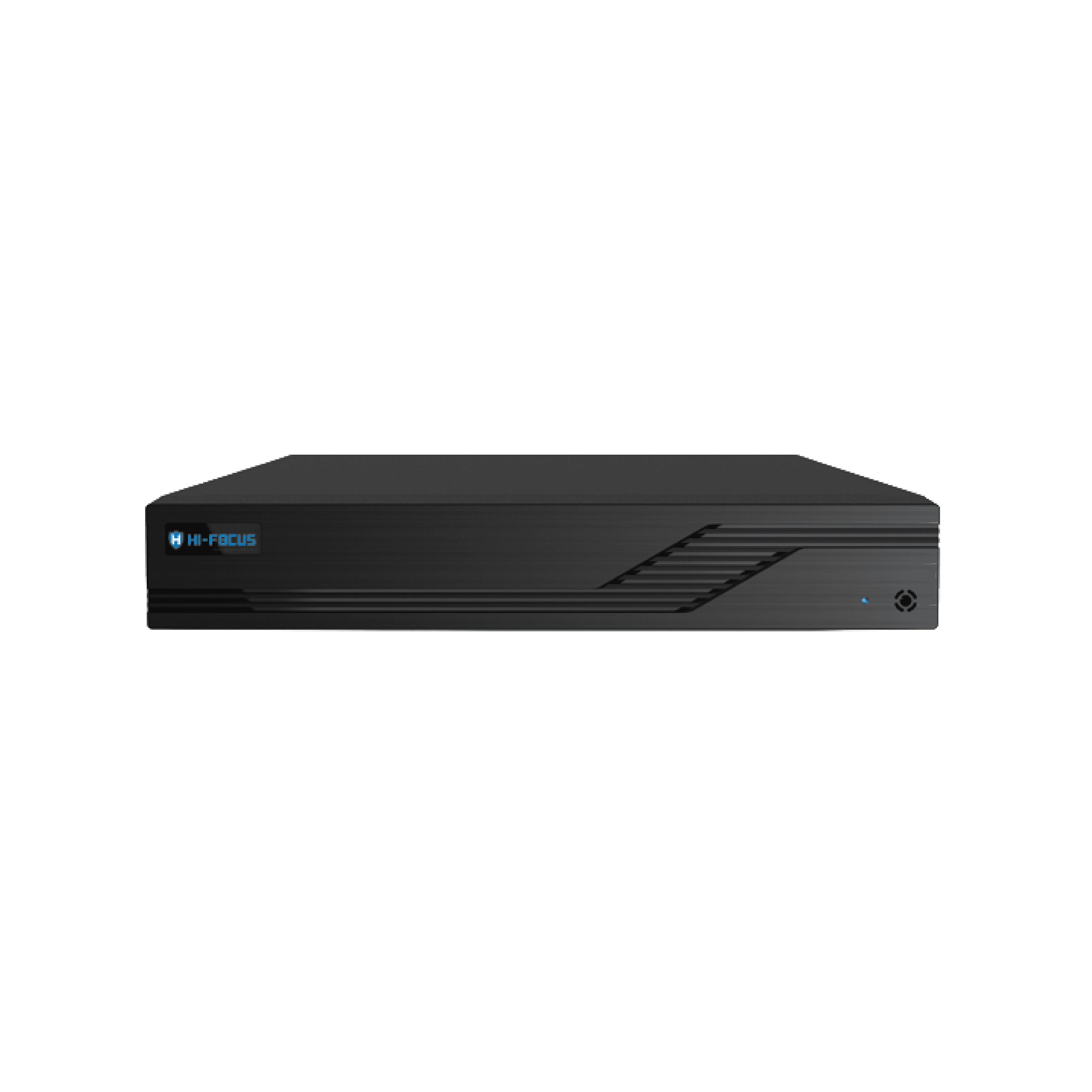

8 CHANNEL NETWORK VIDEO RECORDER
HD-NVR-4108TL-B
Product Features
- Support 8 CH 6MP/5MP/4MP/3MP/1080P/ 960P/720P/960H/ DI/CIF IP video input
- H.265S/H.265+/H.265/H.264 coding
- Intuitive and user-friendly Graphic User Interface (GUI), Windows style operationby mouse
- Multi-mode recording: manual / timer / motion / sensor/ POS / AI recording
- Playback: 8 CH simultaneous playback
- Search: time slice, time, event, tag, smart search
- Support multiple VCA (Video Content Analytics) events, such as object
- Abandoned/missing, region intrusion, tripwire, video exception, crowd density, etc.
- Support POS information overlay on live view and playback
- Express and flexible backup via USB, network and so on
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web Client or CMS: preview, playback, backup,
- PTZ and configuration
- Dual stream technology for local storage with high definition,
- remote network transmission and remote surveillance with mobile device
- Authorization management, log view and device status view
- 1080P HD output, true high resolution display
- Support NAT function and QR Code scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Android OS
Specifications
- SYSTEM
- VIDEO
- AUDIO
- RECORD
- PLAYBACK
- DECODING CAPABILITY
- ALARM
- NETWORK
- PLATE DETECTION
- MOBILE DEVICE
- STORAGE
- BACKUP
- PORT
- ELECTRICAL
- ENVIRONMENTAL
SYSTEM
OS
Embedded Linux
VIDEO
Network Input
8 CH IPC input
Network Input Resolution
6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF
Output
HDMI × 1 : 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 HDMI and VGA output the same video source
Compression
H.265S / H.265+ /H.265 /H.264
Multi-screen Display
1 / 4 / 6 / 8 / 9
AUDIO
Network Input
8 CH IPC audio input
Compression
G.711 (U/A)
RECORD
Resolution
6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF
Frame Rate
30fps/25fps (NTSC/PAL)
PLAYBACK
Simultaneous Playback
Max. 8 CH
Search
Time slice / time / event / tag /smart search
Smart Search
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
Function
Play, pause, FF, FB, digital zoom, etc.
DECODING CAPABILITY
Live View/ Playback
1CH 6MP; 4CH 1080P
ALARM
Type
Manual, sensor, motion, exception, smart events, etc.
Input
Support IPC alarm input
Output
Support IPC alarm output
Triggering
Record, snapshot, buzzer, preset, e-mail, etc.
NETWORK
Interface
RJ 45 100Mbps × 1
Protocol
TCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, RTSP, ONVIF, etc.
Incoming Bandwidth
64 Mbps
Outgoing Bandwidth
64 Mbps
Client Connection
Max. 10 users access
PLATE DETECTION
Plate Detection (AI by IPC)
Yes
MOBILE DEVICE
OS
iOS, Andriod
STORAGE
HDD Interface
SATA3.0 × 1, max 10TB
BACKUP
Local Backup
U disk, USB mobile HDD
Network Backup
Yes
PORT
USB
USB 2.0 × 23
ELECTRICAL
Power Supply
DC 12V/1.5A
Consumption
≤ 5W (without HDD)
ENVIRONMENTAL
Dimensions (mm)
255 × 222 × 42 ( W × D × H )
Working Environment
-10 ～ 50 ℃，10% ～ 90% humidity
