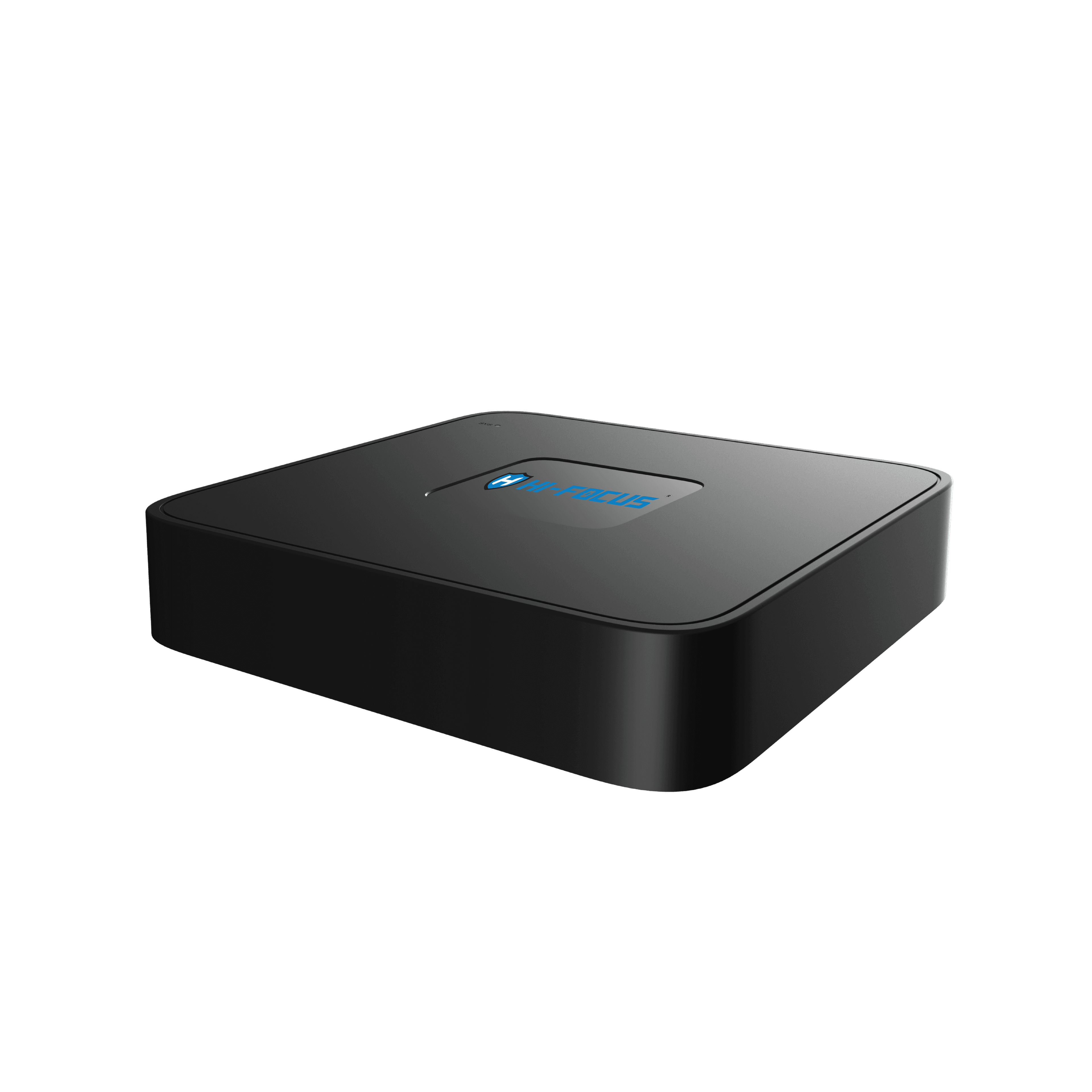

8 CHANNEL PoE NETWORK VIDEO RECORDER
HD-NVR-2108I-8P
Product Features
- 8 CH NVR – 60Mbps Incoming / 40Mbps Outgoing Bandwidth
- Max Resolution – 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Compression – Smart H.265+ / H.265 / H.264+ / H.264
- Video Output – HDMI Upto 4K & VGA up to 1080P
- Multi Display – 1/2A/2B/3/4/5/6/7/8/9/10
- Playback – 4 CH Simultaneous Playback
- Storage – 1× SATA Up to 8TB HDD Capacity
- AI by Camera – Smart Alarm, Human/Vehicle Classification
- PoE – 8 Ports, 48W Budget (30W/Port)
- Compatibility – RTSP, CGI, SDK, P2P
Specifications
- Video and Channel
- Compression Standard
- Network
- Recording
- Alarm
- Intelligent Analytics
- Storage
- External Port
- General
Video and Channel
Channel
8
Incoming Bandwidth
60Mbps
Outgoing Bandwidth
40Mbps
Resolution
6MP/5MP/4MP/3MP/1080P/ UXGA/720P/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Preview Decoding Capability
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8, 4CIF(30fps)×8
Playback Decoding Capability
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4
Compatibility
ONVIF(Profile S/T),CGI, SDK, P2P
HDMI Output
HDMI: 1024×768(60Hz), (720P ) 1280×720(50Hz/60Hz), 1280×800 (60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
VGA Output
VGA: 1024×768(60Hz), (720P ) 1280×720(50Hz/60Hz), 1280×800 (60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
Multi-screen Display
Simultaneous Output: VGA: 1/2/3/4/5/6/7/8/9 HDMI: 1/2/3/4/5/6/7/8/9
Compression Standard
Video Compression
Smart H.265+, H.265, Smart H.264+, H.264
Audio Compression
G711A, G711U, ADPCM_DIV4
Stream Type
Video, Video & Audio
Network
Network Protocol
ARP, DDNS, DHCP, DNS, Easy DDNS, HTTP, ICMP, IGMP, IPv4, IPv6, NTP, RTCP, RTP, RTSP, SSH, TCP, UDP, Unicast, UPnP
Moblie Client
Android, iOS, P2P
System Compatibility
CGI, SDK, P2P
Web
IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
Recording
Multi-channel Playback
Up to 4 channels
Record Mode
Alarm Recording, Schedule Recording
Storage Method
Local HDD
Backup
USB storage device
Playback Function
Play/Pause/Stop/Slow/Speed/ Backwards 30s/Forwards 30s/ Full Screen/Backup (Video Editing)/DigitalZoom
Alarm
General Alarm
Motion Detection, Mask Alarm, Alarm Input(IPC)
Exception Notification
Video Loss, Network Disconnected, No Disk, Illegal Access, Disk Full, Disk R/W Error, Recording Abnormal, Abnormal found in smart of disk, Abnormal temperature of the disk, PoE Overload, VoltageAlarm(IPC), RTC Failure, IP Address Conflict, MAC Address Conflict
Intelligent Analytics
AI by Camera
Smart Alarm, Human/ Vehicle Classification
Storage
Hard Disk Capacity
1×SATA interface , Up to 8 TB capacity for each HDD
External Port
USB
2×USB2.0
HDMI
1×HDMI
VGA
1×VGA
Network Interface
1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
General
Power Supply
DC48V
Power Consumption
<10W(without HDD&without PoE)
NetWeight
0.47kg
GrossWeight
0.89kg
Boundary Dimensions
200(L)200(W)43(H)mm
Package Dimensions
315(L)70(W)235(H)mm
Operating Temperature
-10°C~+55°C (+14°F~+131°F)
Operating Humidity
10%~90%RH (non-condensing)
Storage Temperature
-20°C~+60°C (-4°F~+140°F)
