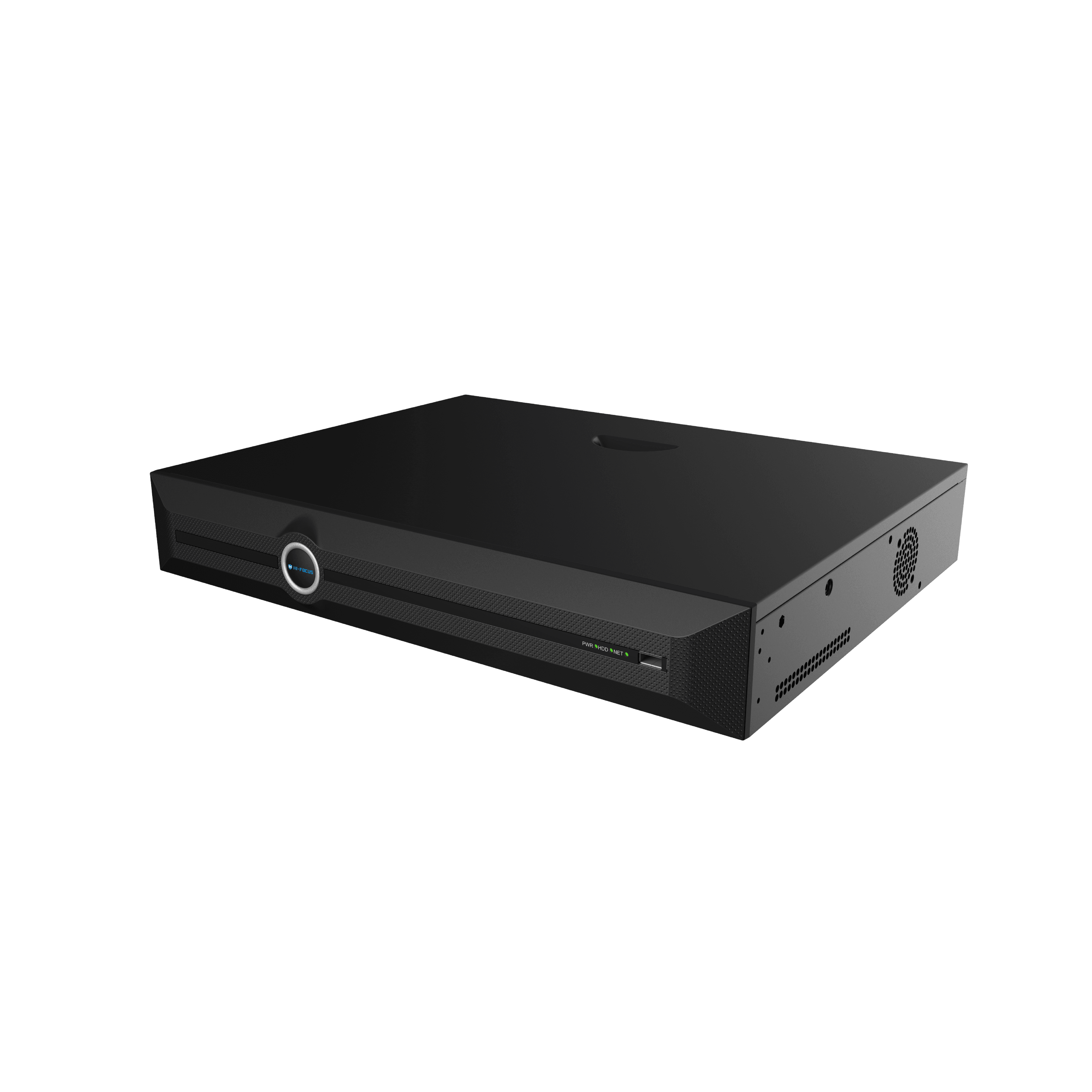

80 CHANNEL NETWORK VIDEO RECORDER
HD-NVR-5480I
Product Features
- 80 CH NVR – 400Mbps Incoming / 400Mbps Outgoing Bandwidth
- Max Resolution – 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Compression – Smart H.265+ / H.265 / H.264+ / H.264
- Video Output – HDMI & VGA up to 4k Support
- Multi Display – 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40/64/80
- Playback – 16 CH Simultaneous Playback
- Storage – 4× SATA Up to 10TB HDD Capacity
- AI by Camera – Tripwire, Double Tripwire, Perimeter,
- Object Abandon/Missing, Loitering, Face Detection,
- Running, Parking, Crowd Detection etc.
Specifications
- Video and Audio
- Compression Standard
- Network
- Recording
- Alarm
- Intelligent Analytics
- Face Recognition
- Storage
- INTERFACE
Video and Audio
Channel
80
Incoming Bandwidth
400Mbps
Outgoing Bandwidth
400Mbps
Resolution
16MP/12MP/8MP/6MP/5MP/ 4MP/3MP/1080P/UXGA/720P/ VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability
16MPx2, 12MPx3, 8MPx4, 6MPx4, 5MPx6, 4MPx8, 3MPx9, 1080Px16, 720Px32, 4CIFx80
Playback Decoding Capability
16MPx2, 12MPx3, 8MPx4, 6MPx4, 5MPx6, 4MPx8, 3MPx9, 1080Px16, 720Px16
Compatibility
ONVIF(profile T/S/G), CGI, SDK, P2P
HDMI Output
HDMI: 800x600(60Hz), 1024x768(60Hz), 1280x720 (50Hz/60Hz), 1280x800(60Hz), 1366x768(60Hz), 1440x900 (60Hz), 1920x1080(50Hz/60Hz), 2560x1440(30Hz/60Hz), 2560x1600(60Hz), 3840x2160 (30Hz/60Hz
VGA Output
HDMI: 800x600(60Hz), 1024x768(60Hz), 1280x720 (50Hz/60Hz), 1280x800(60Hz), 1366x768(60Hz), 1440x900 (60Hz), 1920x1080(50Hz/60Hz), 2560x1440(30Hz/60Hz), 2560x1600(60Hz), 3840x2160 (30Hz/60Hz
Multi-screen Display
1/2/3/4/5/6/7/8/9/10/12/13/16/ 20A/20B/25/32/36/40/64/80
Audio Input
1CH
Audio Output
1CH
Two-Way Audio
1CH
Compression Standard
Video Compression
Smart H.265+, H.265; Smart H.264+; H.264
Audio Compression
G711A, G711U, AAC, ADPCM_D
Stream Type
Video, Video & Audio
Network
Network Protocol
ARP, DDNS, DHCP, DNS, Easy DDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, Multicast, NFS, NTP, PPPoE, RTCP, RTP, RTSP, SMB/CIFS, SMTP, SNMP, SRTP, SSH, SSL, TLSv1.2,TLSv1.3, TCP/IP, UDP, Unicast, UPnP
Moblie Client
Android, iOS
Web
IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
Recording
Multi-channel Playback
16
Record Mode
Manual Recording, Alarm Recording, Schedule Recording
Storage Method
Local HDD
Backup
USB storage device, Network
Playback Function
Play/Pause/Stop/Slow/Speed /Backwards 30s/Forwards 30s/Full screen/backup (video Editing)/Step/ Digital Zoom
Dual Stream Record
Supported
Alarm
General Alarm
Motion, Mask Alarm, Alarm Input(IPC), Video Loss, Alarm Input(NVR), Manual Alarm
Exception Notification
IP Conflict, MAC Conflict, Network Disconnected, No disk, Illegal Access, Disk group space alert, Disk Full, Disk R/W error, Video Abnormal, Abnormal found in smart of disk, Abnormal temperature of the disk, Hot-spare Exception, Array Exception, IPC voltage abnormal, RTC failure
Alarm I/O
16CH IN / 4CH OUT
Intelligent Analytics
AI by Camera
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Loiter, Running, Parking, Heatmap, Lens Dignose, Scene Switch Dignose, Signal Abnormal Detection, Signal Loss Detection, Plate License Recognition, On Duty Detection, Crowd Detection, Parking guard, Safety Helmet Detection, Electric vehicle testing, People Counting, Link To Tracking, Fireworks detection, Environmental temperature measurement, Face Detection, Human body temperature measurement, Advanced Intelligence
VCA Search
Heatmap, Early-warning search, Behavior Search, Plate license search, Search safety helmet, Thermographic retrieval, Duty search, Electric vehicle retrieval, Facial search
VCA Report
Heatmap, People Counting, Face Statistics
Face Recognition
Face Attributes Detection
Gender, age, glasses, Face mask, Body temperature
Face Picture Library
Up to 300 face libraries Up to 100000 base images
Face Picture Comparison
Cooperate with facial recognition machine
Storage
Hard Disk Capacity
4 SATA ports, up to 10 TB
INTERFACE
USB
1xUSB2.0, 1xUSB3.0
Network Interface
2xRJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
