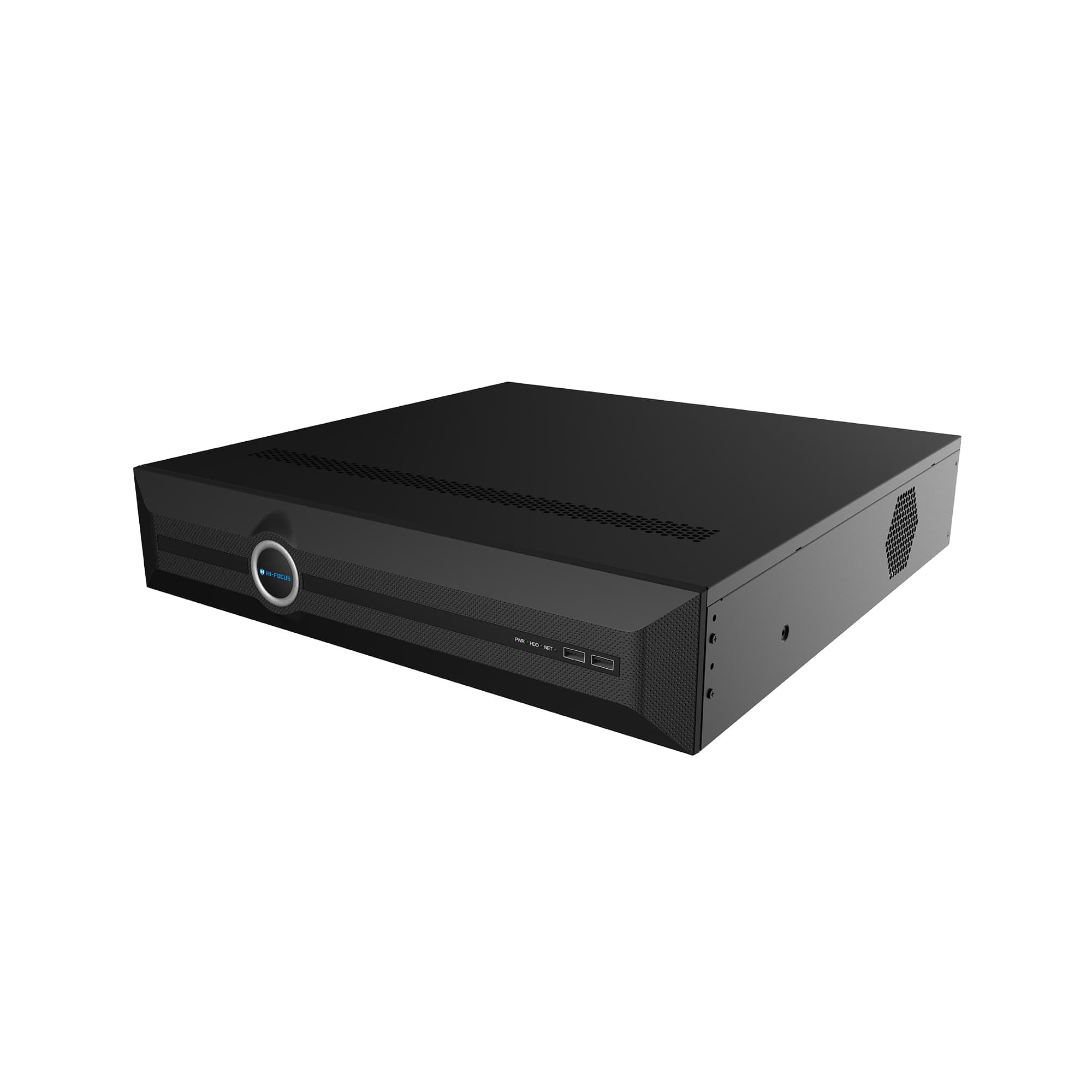

80 CHANNEL NETWORK VIDEO RECORDER

HD-NVR-5880I

Product Features

80 CH NVR - 400Mbps Incoming / 400Mbps Outgoing Bandwidth
Max Resolution -16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/
UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Compression - Smart H.265+ / H.265 / H.264+/ H.264
Video Output - HDMI Upto 4k & VGA up to 1080P
Multi Display -1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/
25/32/36/40/64/80
Playback - 16 CH Simultaneous Playback
Storage - 8x SATA Up to 20TB HDD Capacity
Al by Camera - Tripwire, Double Tripwire, Perimeter,
Object Abandon/Missing, Loitering, Face Detection,
Running, Parking, Crowd Detection, etc.
Al by NVR - Face Detection/ Recognition, Video Structuralization,
Tripwire, Double Tripwire, Running, Parking, Heatmap, etc.

Specifications

CORE FEATURES
Compression Standard
Network
Recording
Alarm
Intelligent Analytics
Face Detection
Face Recognition
Storage
INTERFACE
General

CORE FEATURES

Channel

Incoming Bandwidth

640Mbps

Outgoing Bandwidth

320Mbps

Resolution

16MP/12MP/8MP/6MP/5MP/4MP/ 3MP/1080P/UXGA/720P/VGA/ 4CIF/DCIF/2CIF/CIF/QCIF

Preview Decoding Capability

16MP(30fps)×3, 12MP(30fps)×4, 8MP(30fps)×6, 6MP(30fps)×8, 5MP(30fps)×9, 4MP(30fps)×12, 3MP(30fps)×16, 1080P(30fps)× 24, 720P(30fps)×48, 4CIF (30fps)×80

Playback Decoding Capability

16MP(30fps)×3, 12MP×4, 8MP (30fps)×6, 6MP(30fps)×8, 5MP(30fps)×9, 4MP(30fps)×12, 3MP(30fps)×16, 1080P(30fps)×16, 720P(30fps)×16

Third Party Camera Access

ONVIF(Profile S/T); RTSP

HDMI Output

HDMI: 800×600(60Hz), 1024×768(60Hz), 1280×720 (50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz), 1366×768 (60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz), (4K) 3840×2160(30Hz/60Hz

VGA Output

Independent Output: HDMI1/VGA1: 1/2A/2B/3/4/5/6 /7/8/9/10/12/13/16/20A/20B/25 /32/36/40 HDMI2/VGA2: 1/2A/ 2B/3/4/5/6/7/8/9/10/12/13/16/ 20A/20B/25/32/36/40

Audio Input

1CH

Audio Output

1CH

Two-Way Audio

1CH

Compression Standard

Video Compression

Audio Compression

G.711A, G.711U, AAC, ADPCM_DIV4

Stream Type

Video, Video & Audio

Network

Network Protocol

802.1X, ARP, DDNS, DHCP, DNS, Easy DDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, Multicast, NFS, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMB/ CIFS, SMTP, SNMP v1/v2/v3, SRTP, SSH, SSL, TLSv1.2, TCP, UDP, Unicast, UPnP

Moblie Client

Android, iOS

System Compatibility

ONVIF(Profile S/T/G), RTSP, CGI, SDK, P2P

Web

IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+

Recording

Multi-channel Playback

Record Mode

Manual Recording, Alarm Recording, Schedule Recording

Storage Method

Local HDD, eSATA

Backup

USB storage device, eSATA, Network

Playback Function

Play/Pause/Stop/Slow/Speed /Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/ Digital Zoom

Dual Stream Record

Yes

Alarm

General Alarm

Motion Detection, Mask Alarm, Alarm Input(IPC), Alarm Input (NVR

Exception Notification

Video Loss, Network Disconnected, No Disk, Illegal Access, Disk group space alert, Disk Full, Disk R/W Error; Recording Abnormal, Abnormal found in smart of disk, Abnormal temperature of the disk, Hotspare Exception, Array Exception, Voltage Alarm(IPC), RTC Failure, IP Address Conflict, MAC Address Conflict

Alarm I/O

16CH IN / 4CH OUT

Intelligent Analytics

AI by Camera

Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Running, Parking, Heatmap, Loitering, Video Abnormal, Audio Abnormal, License Plate Recognition, On Duty Detection, Crowd Detection, Parking Guard, Safety Helmet Detection, Electric Bicycle Detection, People Counting, Link to Tracking, Smoke and Fire Detection, Environmental Temperature Measurement, Face Detection, Human Body Temperature Measurement, Smart Alarm, Face Recognition, Human/Vehicle Classification

VCA Search

Heatmap; Early-warning Search, Behavior Search, License Plate Search, Safety Helmet Search, Thermographic Retrieval, Duty Search, Electric Bicycle Retrieval, Face Search

Face Detection

Face Attributes

Gender, Age, Glasses, Face Mask, Body Temp

Face Recognition

Face Picture Library

Up to 300 face libraries Up to 100000 base images

Face Picture Comparison

Yes (Cooperate with facial recognition IPC)

Storage

Hard Disk Capacity

8 SATA up to 20 TB capacity for each HDD

RAID

JBOD, RAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60

INTERFACE

eSATA

1×eSATA

USB

2×USB2.0, 1×USB3.0

Network Interface

2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port

RS-232

1×RS-232

RS-485

2×RS-485

General

Power Supply

100~240V AC

Power Consumption

≤18W (HDD not included)

NetWeight

6.2Kg

GrossWeight

8.4Kg

Boundary Dimensions

440(L) 455(W) 94(H) mm

Package Dimensions

565(L) 565(W) 220(H)mm

Operating Temperature

-10°C~+55°C (+14°F~+131°F)

Operating Humidity

10%~90%RH (non-condensing

Storage Temperature

-20°C~+60°C (-4°F~+140°F)
