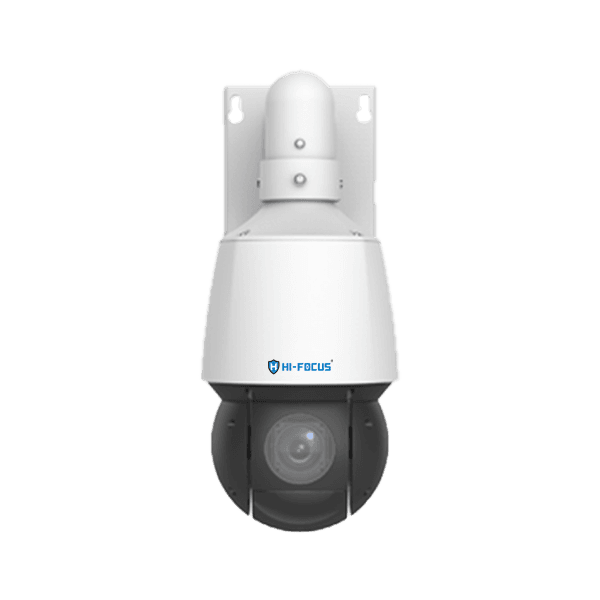

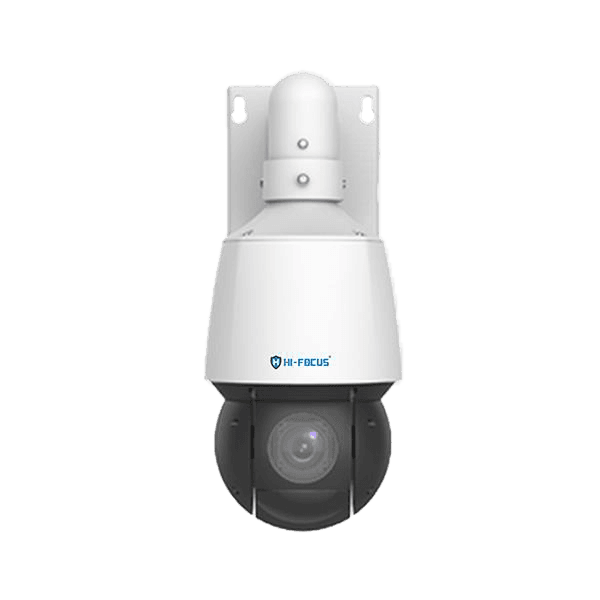

2MP 16X NETWORK PTZ DOME CAMERA
HC-IPC-SDQ41620L
Product Features
- Smart H.265, H.265, H.264, MJPEG
- 16X optical zoom allows for closer viewing of subjects
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 100m (328ft) IR distance
- Micro SD, up to 256GB
- DC 12V±25% or PoE+ (IEEE 802.3at)
- IP66 ingress protection
Specifications
- CAMERA
- SMART
- STORAGE
- NETWORK
- PAN & TILT
- INTERFACE
- GENERAL
CAMERA
Sensor
1 / 2.8", progressive scan, 2.0megapixel, CMOS
Lens
5 - 80mm, AF automatic focusing and motorized zoom lens
Iris
F1.7(W) - F2.8(T)
Field of View (H)
51.70° ~ 4.89°
Shutter Speed
Auto/Manual, 1 ~ 1/100000s
Minimum Illumination
Colour: 0.003 Lux (F1.7, AGC ON) 0 Lux with IR
Day/Night
IR-cut filter with auto switch (ICR)
IR Range
Up to 100m (328 ft)
Wavelength
850nm
IR On/Off Control
Auto/Manual
WDR
120dB
S/N
>52dB
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Noise Reduction
2D/3D DNR
Defog
Digital defog
Video Compression
Smart H.265, H.265, H.264, MJPEG
Frame Rate
Main Stream: 5MP (2880x1620), Max 30fps; Sub Stream: 720P (1280x720), Max 30fps; Third Stream: D1 (720x576), Max 30fps
Video Bit Rate
128 Kbps~16 Mbps
Video stream
Triple streams
ROI
Supported
OSD
Up to 8 OSDs
Privacy Mask
24 areas, up to 4 areas per scene
Smart IR
Supported
HLC
Supported
BLC
Supported
SMART
Intelligent Analysis
Basic Detection, Motion detection, Tampering Alarm
Auto Tracking
Supported
General Function
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
STORAGE
Edge Storage
Micro SD, up to 256 GB
Network Storage
ANR, NAS(NFS)
NETWORK
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
PAN & TILT
Pan Range
360° (endless)
Pan Speed
0.1°/s ~ 80°/s | Preset speed: 80°/s
Tilt Range
–15° ~ 90° (auto reverse)
Tilt Speed
0.1°/s ~ 80°/s | Preset speed: 80°/s
Number of Presets
1024
Preset Patrol
16 patrols, up to 64 presets for each patrol
Route Patrol
16 patrols, up to 32 actions for each patrol
Recorded Patrol
16 patrols, up to 128 actions for each patrol
Patrol Stay Time
15s ~ 1800s
Home Position
Supported
INTERFACE
Network
1 RJ45 10M/100M Base-TX Ethernet
GENERAL
Power
DC12V(±25%,3A), PoE+(IEEE 802.3at) Power consumption: MAX 20W
Dimensions (Ø x H)
Ø162 x 293mm (Ø6.4” x 11.5”)
Weight
1.79kg (3.95lb)
Working Environment
-40° ~ 65° (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing)
Storage Environment
-40° ~ 70° (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection
6KV
Reset button
Supported
Ingress Protection
IP66
