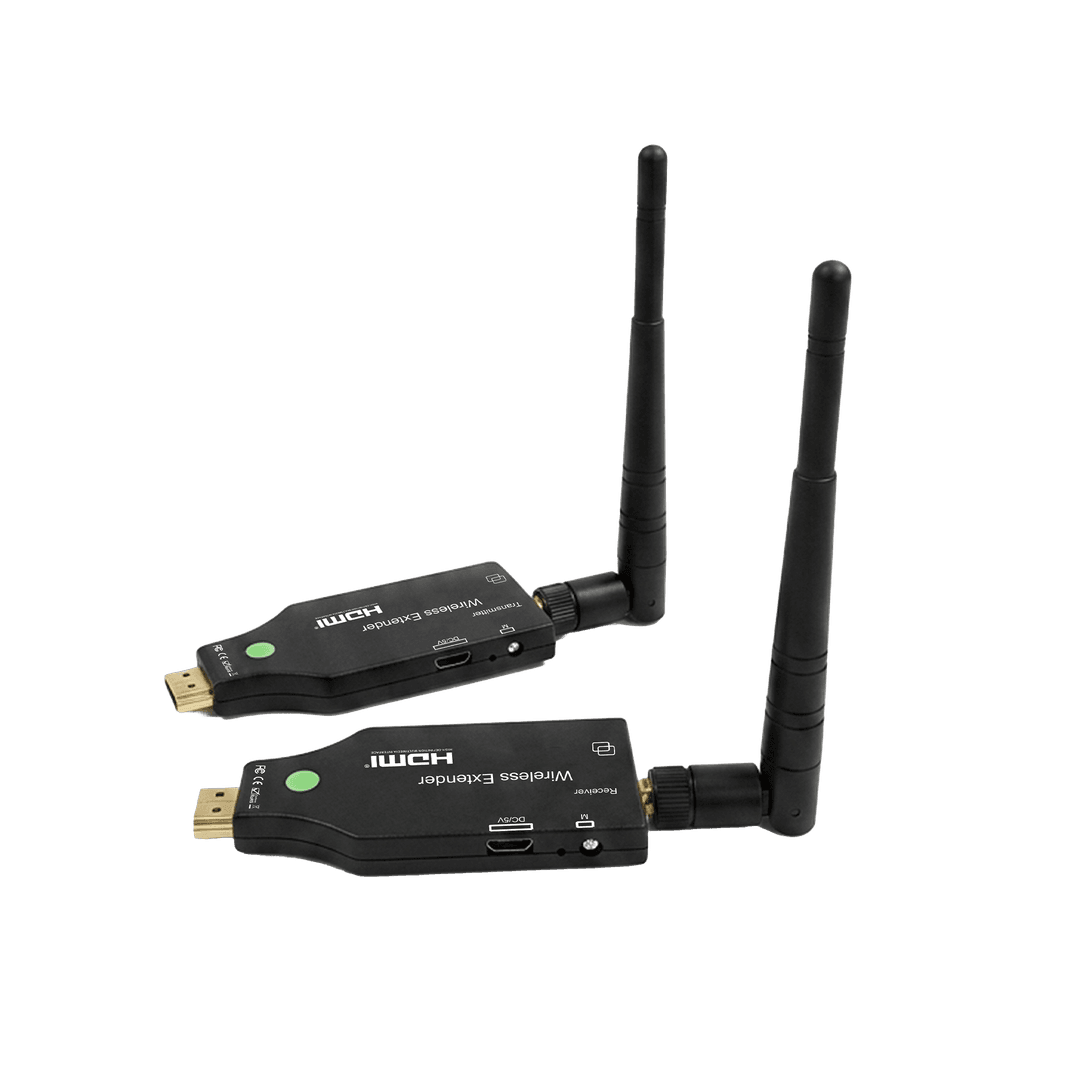

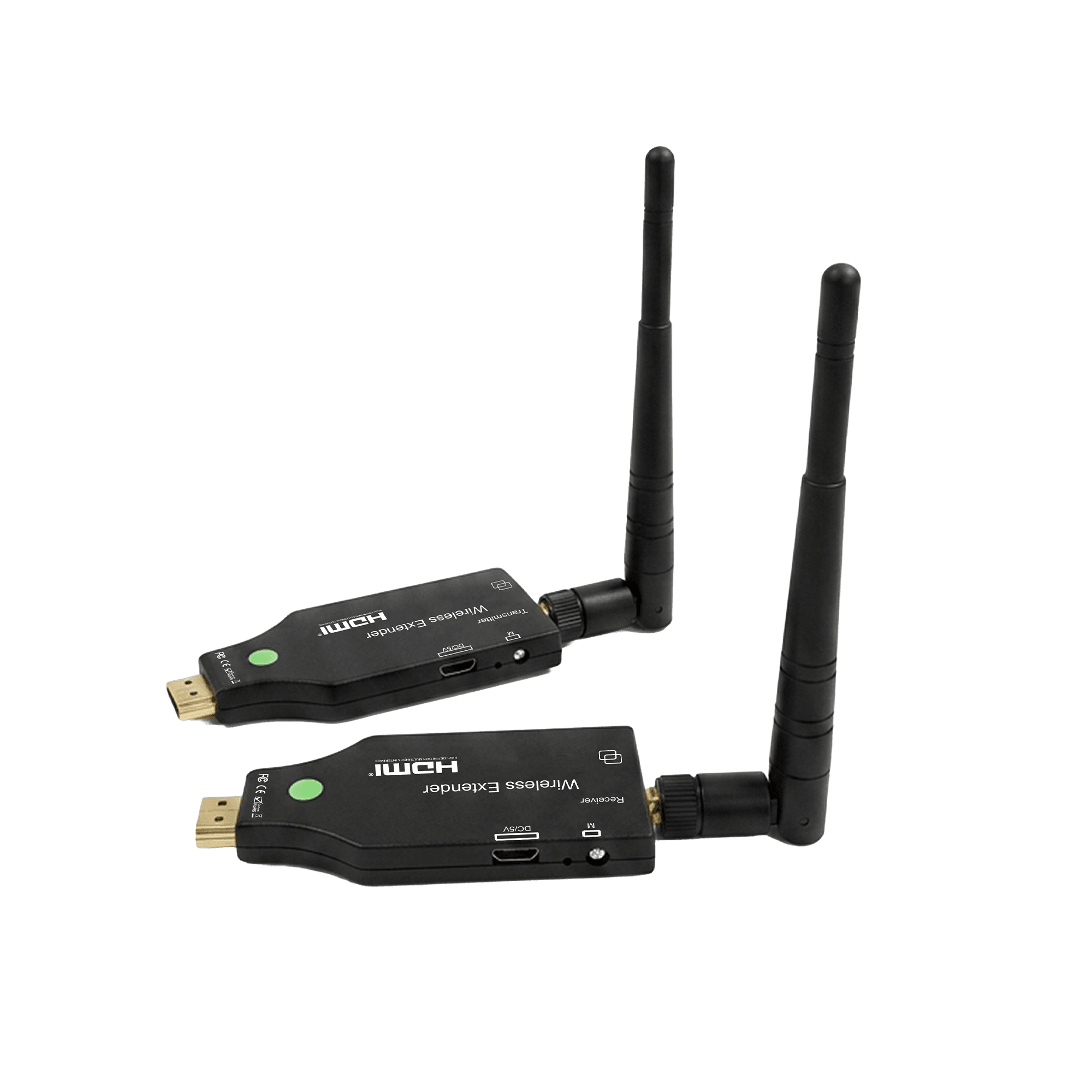

150M HDMI Extender
HF-HEV150P-W
Product Features
- Support HDCP1.3
- Support standard protocol IEEE802.11a/n
- Support Miracast, Airplay wireless protocol
- Support Android phone / PC / Apple wireless screen sharing
- Working in 5G frequency band, not easy disturbed by wireless signals
- Wireless extender mode, the longest distance can be 150m when open space without any barriers, normal go through the wall up to 40 meters (Laboratory test environment)
- The transmission distance of the same screen mode can reach up to 50 meters
- The full metal casing has better heat dissipation and stronger anti-interference
- External high-gain antenna, better receiving effect, more stable.
Specifications
- General Specifications
- Package list
General Specifications
HDMI input resolution
1280X720 P60/50Hz, 720X480P 60Hz, 720X576P 50Hz, 1920X1080P 60/50/30/24Hz
HDMI output resolution
1920x1080P/60Hz
Support audio format
Stereo audio
Max bandwidth
148.5MHz
Max baud rate
1.485Gbps
Transmitter Max working current
430mA
Receiver Max working current
300mA
Operating Temperature range
(-15°C to +55°C)
Dimension
106x37x17 (mm), antenna length: 155mm
Weight
105g×2
Package list
150M HDMI Wireless Extender
1 pair
Type-C USB cable
2 PCS
HDMI cable (male to female)
2 PCS
User manual
1 PCS
