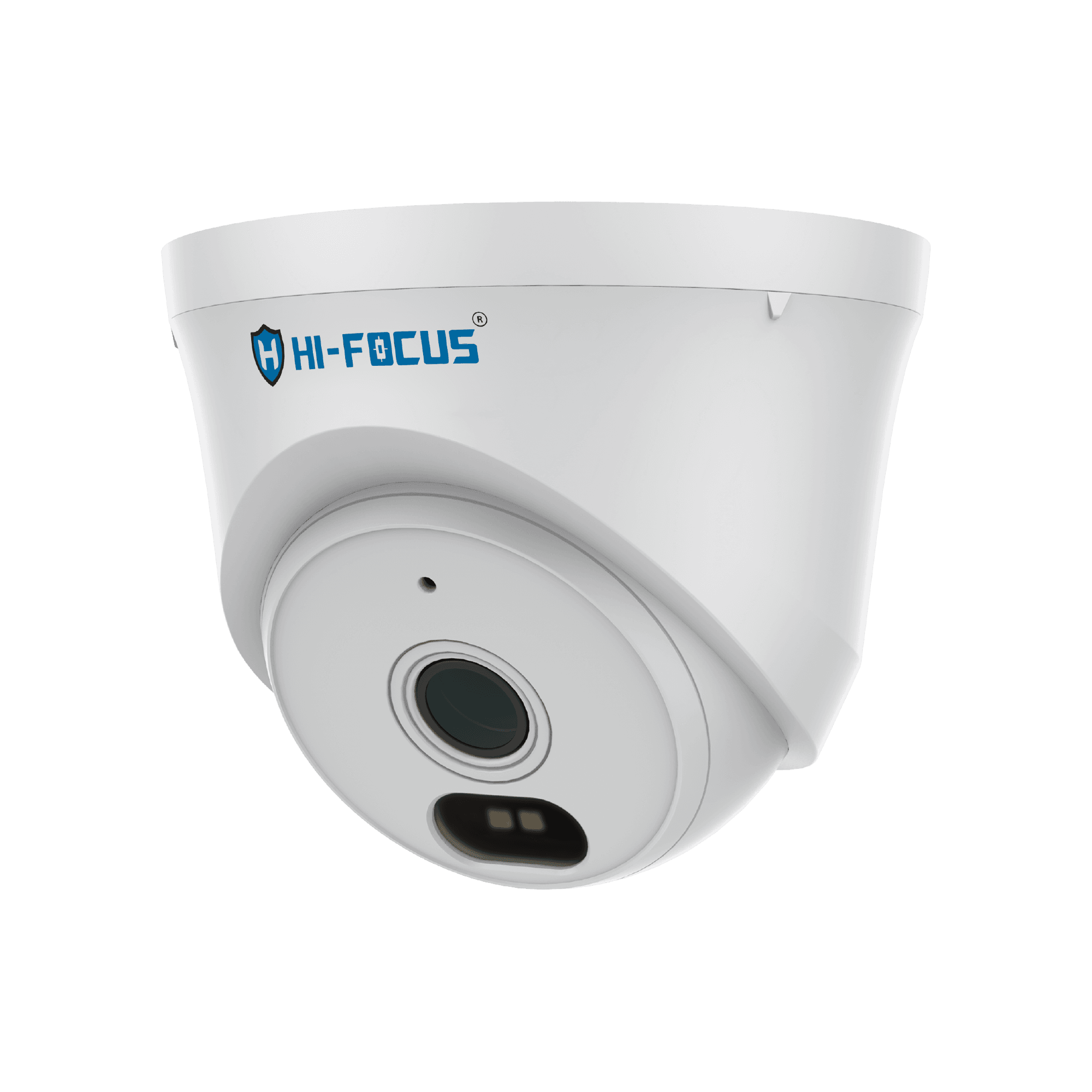

2 MP DOME NETWORK CAMERA
HIPC-D3402E-DL-I3
Product Features
- 2 MP High Definition – 2MP, 1920×1080 @30fps
- Lens – 2.8mm Fixed Lens
- Video Compression – Smart H.265+ / H.265 / H.264B / H.264M / H.264H
- Low-Light Performance – 0.02Lux (F1.6, AGC ON), 0Lux with IR
- Night Vision – Smart IR up to 30m
- White Light - Up to 15m White Light Distance
- Wide Dynamic Range – DWDR Support
- Built-in Microphone – Real-Time audio capture
- Network Compatibility – ONVIF Profile S,T, SDK, CGI
- Power Supply – PoE IEEE 802.3af, Max. 2.5W
Specifications
- CAMERA CORE FEATURES
- VIDEO
- INTELLIGENT ANALYSIS
- SECURITY
- INTERFACE
- NETWORK
- GENERAL
CAMERA CORE FEATURES
Image Sensor
1/3"CMOS
Minimum illumination
Color:0.02Lux@(F1.6,AGC ON), B/W:0Lux with IR
Shutter Speed
1s~1/100000s
Day&Night
IR-cut filter with auto switch (ICR)
IR LEDs
2
Smart IR
2
Wave length
850nm
White LEDs
2
Whitelight Distance
Upto 15m
WDR
DWDR
S/N
>52dB
Focal Length
2.8mm
Aperture Range
F1.6
Aperture Type
Fixed
Field of View
90.7°(H), 50.9°(V), 102.7°(D)
DORI Distance
Detect:41.48m Observe:16.46m Recognize:8.3m Identify:4.1m
VIDEO
Video Compression
Smart H.265+/H.265/H.264B/ H.264M/H.264H
Video Bit Rate
32k~4Mbps
Audio Compression
G.711A/G.711U
Audio Sampling Rate
8kHz
Max. Resolution
2MP,1920×1080@30fps
Main Stream
PAL:25fps(1920×1080, 1280×720) NTSC:30fps(1920×1080, 1280×720)
Sub Stream
PAL: 25fps(704×576, 704×288, 640×360, 352×288) NTSC: 30fps(704×480, 704×240, 640×360, 352×240)
BLC
Supported
HLC
Supported
AGC
Supported
3DNR
Supported
White Balance
Auto/Semi-Auto/Manual/ Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/ Filament Lamp/Lock White Balance
OSD
3 regions; 16x16/32x32/48x48
Defog
Supported
Privacy Mask
4 regions
INTELLIGENT ANALYSIS
Basic Event
Motion Detection,IP Address Conflict
SECURITY
Cyber Security
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
INTERFACE
Network Interface
1×RJ-45 (10/100 Base-T)
Built-in Mic
Supported
NETWORK
Protocols
RTSP, HTTP, TCP, UDP, ICMP, DHCP, DNS, NTP, IPv4, SSH, Unicast
System Compatibility
ONVIF(Profile S,T) , SDK, CGI
Client
HF Prime VMS
GENERAL
Operating Temperature
-30°C~60°C(-22°F~140°F)
Operating Humidity
≤95%RH
Storage Temperature
-30°C~60°C(-22°F~140°F)
Storage Humidity
10%~95%RH(non-condensing)
Power Supply
PoE: IEEE 802.3af,Max. 2.5W
Surge Protection
Surge4000V, ESD6000V
Certification
EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report, REACH, ESD 4KV, BIS-ER-01, BIS-IS-13252
Boundary Dimensions
94(L)94(W)78(H)mm
Package Dimensions
105(L)105(W)85(H)mm
Gross Weight
0.17kg
