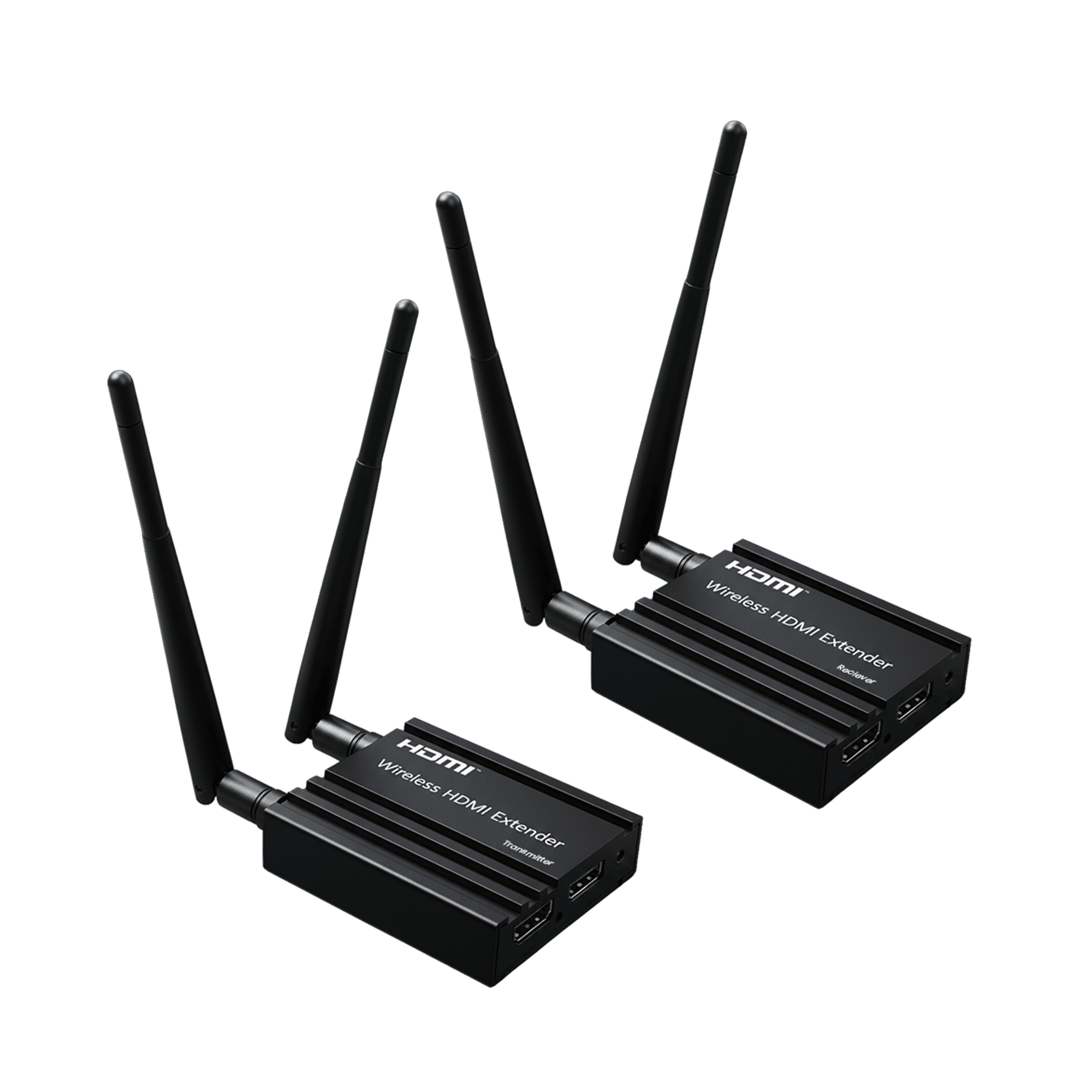

200M HDMI Extender
HF-HKEL200W
Product Features
- Support HDCP1.3
- Support one-to-one and one-to-four transmission modes
- Support the highest rate of 1.485G and TMDS clock up to 148.5MHz.
- Working in the 2.4G/5G frequency band, not easily disturbed by wireless signals
- The longest distance can be 200m in open space without any barriers, normal go through the wall up to 40 meters
Specifications
- General Specifications
- Package list
General Specifications
HDMI Resolution
up to 1920x1080p/60Hz
Support audio format
Stereo audio
Max bandwidth
148.5MHz
Max baud rate
1.485Gbps
Input cable distance
(1080p resolution) ≤8m AWG26 HDMI standard cable
Output cable distance
(1080p resolution) ≤8m AWG26 HDMI standard cable
Transmitter Max working current
1.2A
Receiver Max working current
800mA
Operating Temperature range
(-15℃ to +55℃)
Dimension (L x W x H)
80x63x16 (mm)
Weight
123gx2
Package list
HDMI Transmitter & HDMI Receiver
1 Pair
HDMI cable (0.2M)
2 PCS
Type-C USB cable
2 PCS
User manual
1 PC
