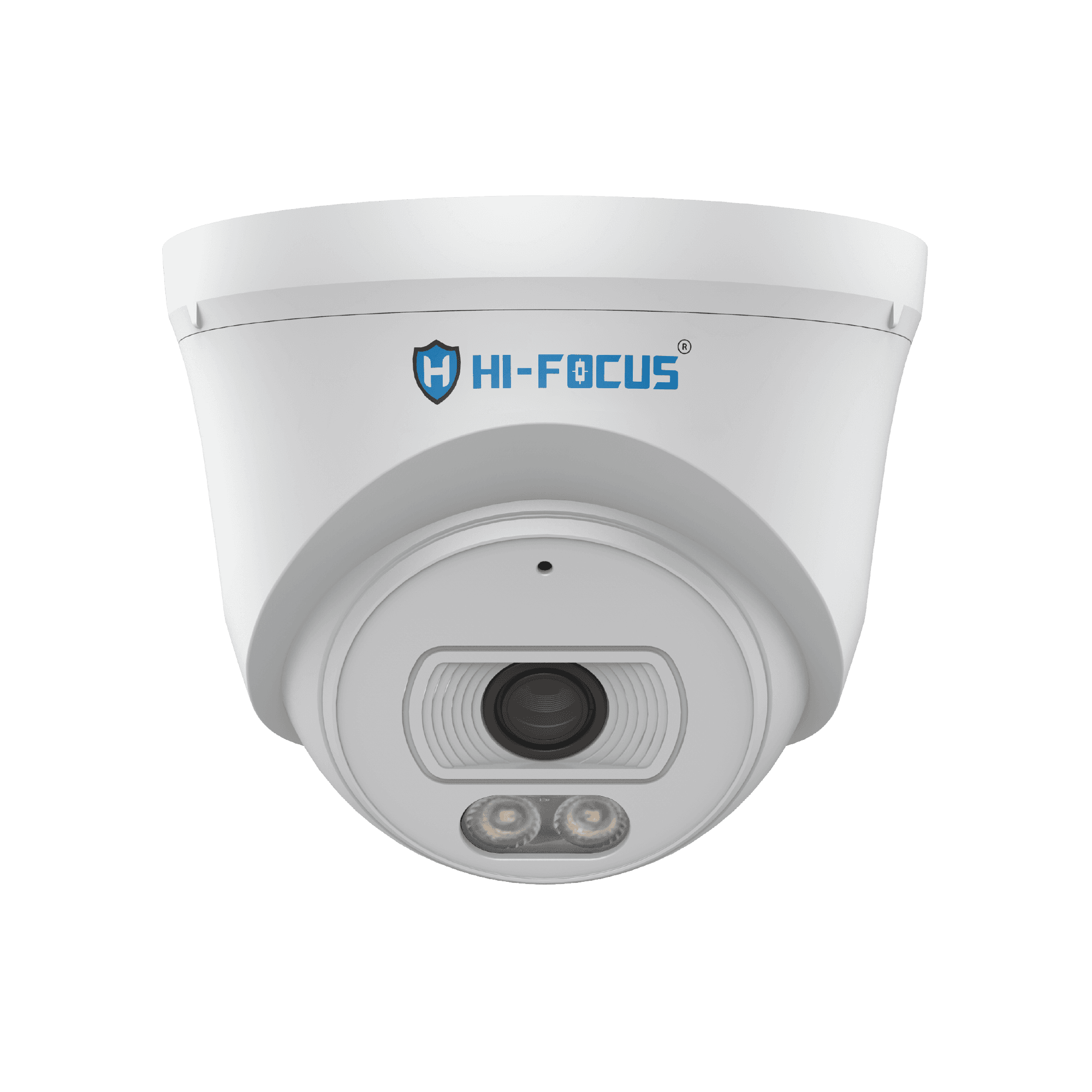

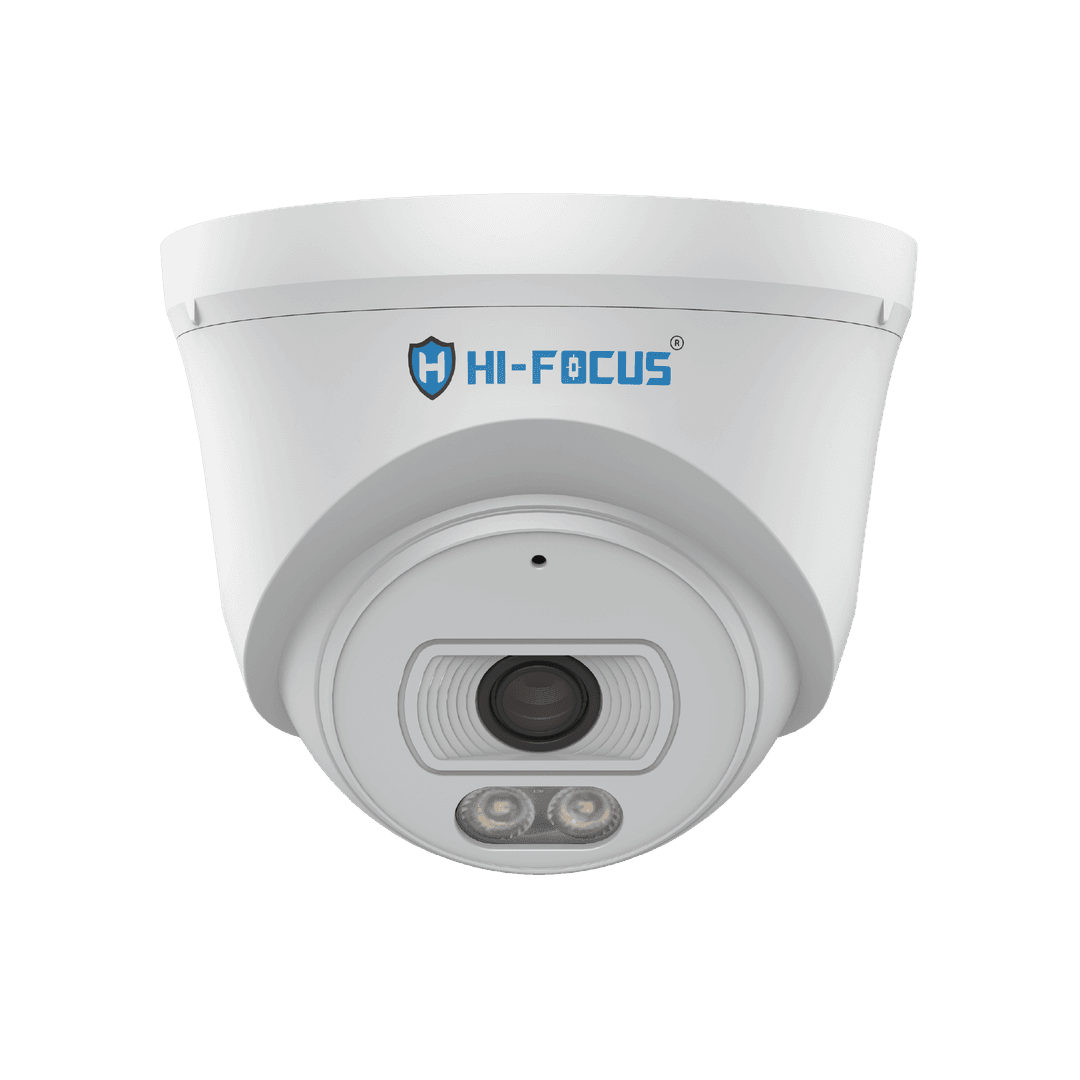

4 MP DOME NETWORK CAMERA
HIPC-D3004E-RDL-I3
Product Features
- 4 MP High Definition – 4MP, 2560×1440 @30fps
- Lens – 4mm Fixed Lens
- Video Compression – Smart H.265+ / H.265 / H.264B / H.264M / H.264H
- Low-Light Performance – 0.02Lux (F1.6, AGC ON), 0Lux with IR
- Night Vision – Smart IR up to 30m
- White Light - Up to 15m White Light Distance
- Wide Dynamic Range – DWDR Support
- Built-in Microphone – Real-Time audio capture
- Smart Detection – Human & Vehicle Detection
- Network Compatibility – ONVIF Profile S,T, SDK, CGI
- Power Supply – PoE IEEE 802.3af, Max. 4W
Specifications
- CAMERA CORE FEATURES
- VIDEO
- INTELLIGENT ANALYSIS
- SECURITY
- INTERFACE
- NETWORK
- GENERAL
CAMERA CORE FEATURES
Image Sensor
1/3"CMOS
Minimum illumination
Color:0.02Lux@(F1.6,AGC ON), B/W:0Lux with IR
Shutter Speed
1s~1/100000s
Day&Night
IR-cut filter with auto switch (ICR)
IR LEDs
2
Smart IR
Upto 30m
Wave length
850nm
White LEDs
2
Whitelight Distance
Upto 15m
WDR
DWDR
S/N
>52dB
Focal Length
4mm
Aperture Range
F1.6
Aperture Type
Fixed
Field of View
91.5°(H), 51.2°(V), 103.6°(D)
DORI Distance
Detect: 56m Observe: 22.2m Recognize: 11.2m Identify: 5.6m
VIDEO
Video Compression
Smart H.265+/H.265/H.264B/ H.264M/H.264H
Video Bit Rate
32k~6Mbps
Audio Compression
G.711A/G.711U
Audio Sampling Rate
8kHz
Max. Resolution
4MP, 2560×1440@30fps
Main Stream
PAL: 25fps(2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC: 30fps(2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream
PAL: 25fps(704×576, 704×288, 640×360, 352×288) NTSC: 30fps(704×480, 704×240, 640×360, 352×240)
BLC
Supported
HLC
Supported
AGC
Supported
3DNR
Supported
White Balance
Auto/Semi-Auto/Manual/ Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/ Filament Lamp/Lock White Balance
OSD
16x16/32x32/48x48/64x64
Defog
Supported
Privacy Mask
4 regions
INTELLIGENT ANALYSIS
Basic Event
Smart Alarm (human and vehicle detection), IP Address Conflict,Trigger Capture
SECURITY
Cyber Security
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
INTERFACE
Network Interface
1×RJ-45 (10/100 Base-T)
Built-in Mic
Supported
NETWORK
Protocols
RTSP, HTTP, TCP, UDP, ICMP, DHCP, DNS, NTP, IPv4, SSH, Unicast
System Compatibility
P2P(Mutually exclusive with Onvif), ONVIF(Profile S,T) , SDK, CGI
Client
HF Prime VMS
GENERAL
Operating Temperature
-30°C~60°C(-22°F~140°F)
Operating Humidity
≤95%RH
Storage Temperature
-30°C~60°C(-22°F~140°F)
Storage Humidity
10%~95%RH(non-condensing)
Power Supply
PoE:IEEE 802.3af,Max. 4W
Surge Protection
Surge4000V, ESD6000V
Certification
EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report, REACH, ESD 4KV, BIS-ER-01, BIS-IS-13252
Boundary Dimensions
117(L)117(W)96(H)mm
Package Dimensions
140(L)140(W)120(H)mm
Gross Weight
0.38kg
