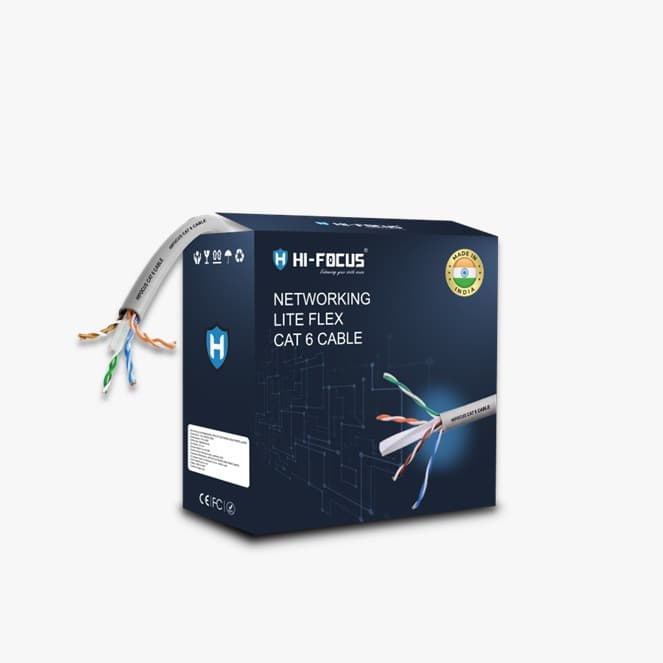

CAT-6 Indoor Cable (100 MTRS)
HFC-IC624AW-100 MTR
Product Features
Specifications
- General Specifications
- COLOR CODE
- PHYSICAL CHARACTERISTICS
- ELECTRICAL PARAMETER
General Specifications
Conductor
Solid Bare Electrolytic Grade Copper
Nominal Conductor Diameter
24 AWG (0.45 mm)
Insulation
Polyethylene (HDPE)
Pairing
Twisted Into Two Core
No.of Pair
4, Each Pair Twisted
COLOR CODE
Pair #1
Orange-White with Orange
Pair #2
Brown-White with Brown
Pair #3
Blue-White with Blue
Pair #4
Green-White with Green
Outer Sheath Material
PVC
Colour Of Sheath
L-Grey
Approximate OD
5.4 0.30 mm
Rip Cord
Yes
Sequential Marking
At Every Meter
Cross Filler
HDPE
Temperature Rating
-20 to + 60 c
Packing
100 Mtrs in a Box
PHYSICAL CHARACTERISTICS
Installation Temperature
0 to + 50 c
Storage Temperature
-20 to + 75 c
Operating Temperature
-20 to + 60 c
ELECTRICAL PARAMETER
Conductor Resistance (DC)
93.5 /1000 mtr @20 c Max
Resistance Unbalance
5% Max
Mutual Capacitance
5.6 nf/100 mtr Max
NVP
69%
Impedance
100 +- 15%Ω
Worst Cable Skew
45 ns/100 mtr
