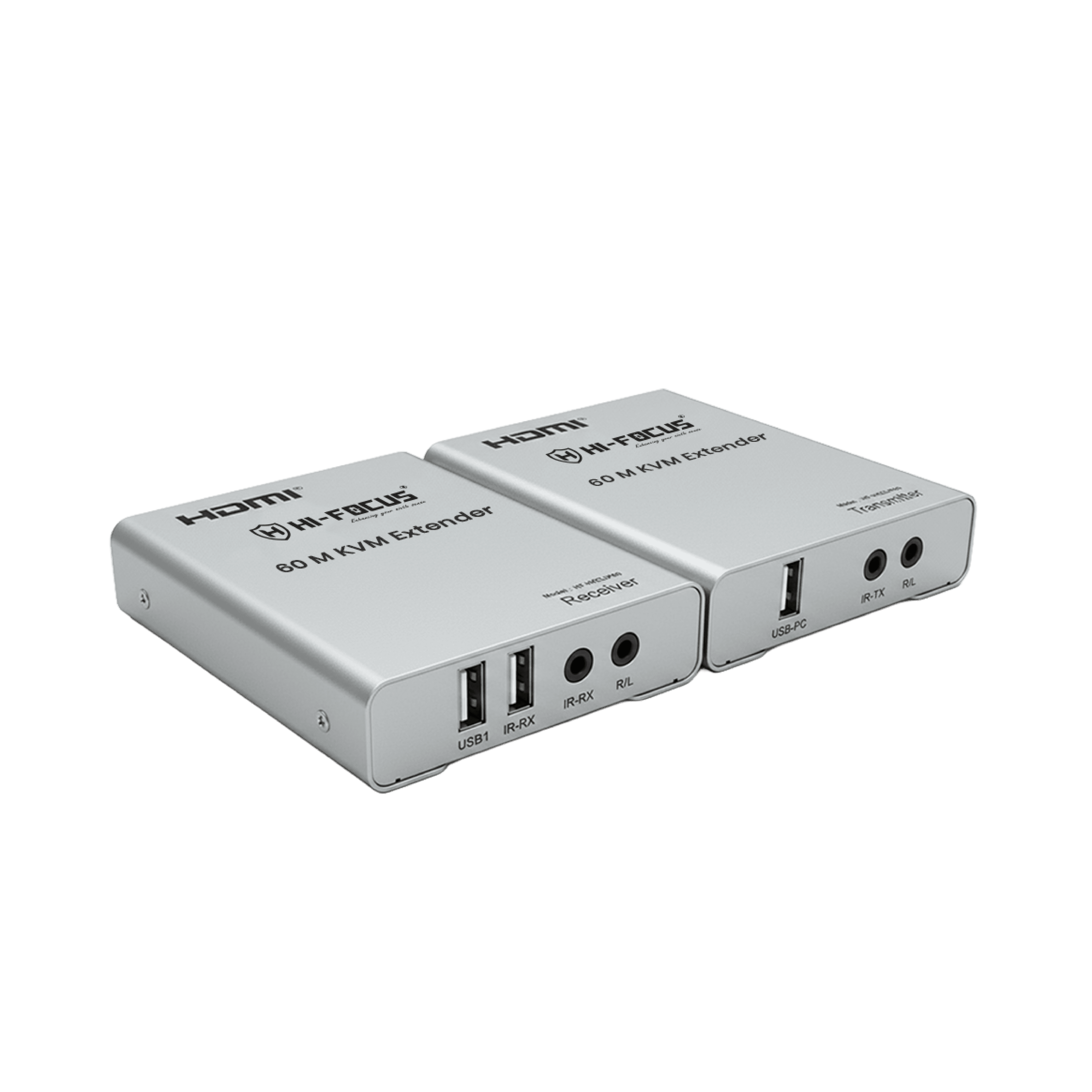

HDMI Extender 60M

HF-HKEL60

Product Features

Support the highest video resolution 1080p/60Hz
60M long-distance transmission
Both the TX and RX support 3.5MM left and right audio output
Low power consumption, low temperature and high safety
Support IR remote control
Support USB mouse and keyboard extension

Specifications

PHYSICAL INTERFACE - TX
RX

Length of CAT-5E/6 cable between RX and TX

Up to 60 meters

HDMI Input

1080p/1080i/720p/576p/576i/480p/480i

HDMI Output

1080p/1080i/720p/576p/576i/480p/480i

Max Bandwidth

150MHZ

Max Baud Rate

4.5Gbps

Input Video Signal

0.5-1.5Volts p-p

Output DDC Signal

5Volts p-p (TTL)

Input HDMI Cable Distance

≤10m AWG26 HDMI standard cable

Output HDMI Cable Distance

≤15m AWG26 HDMI standard cable

TX Max Working Current

300mA

RX Max Working Current

300mA

Power Adapter Format

Input:AC (50HZ,60HZ)100V-240V; Output: DC5V/1A

Operating Temperature Range

(-15 to +45°C)

Operating Humidity Range

5 to 90%RH (No Condensation)

Dimension (LxWxH)

94x84x24(mm)

TX Weight

220g

RX Weight

220g

PHYSICAL INTERFACE - TX

Port

Function description

Input

HDMI Input Port

DC/5V

5V DC Power input port

Cat5E/6

Cat5e/6 cable output port

USB

USB-PC

Audio

Stereo output

IR-TX

3.5MM IR transmitter

EDID

1080P and 720P switch button (press for 3 seconds)

RX

Port

Function description

Output

HDMI Output Port

DC/5V

5V DC Power input port

Cat5E/6 cable

Cat5e/6 cable input port

IR-RX

3.5MM IR receiver

USB 1

USB for mouse or keyboard

USB 2

USB for mouse or keyboard

Audio

Stereo output
