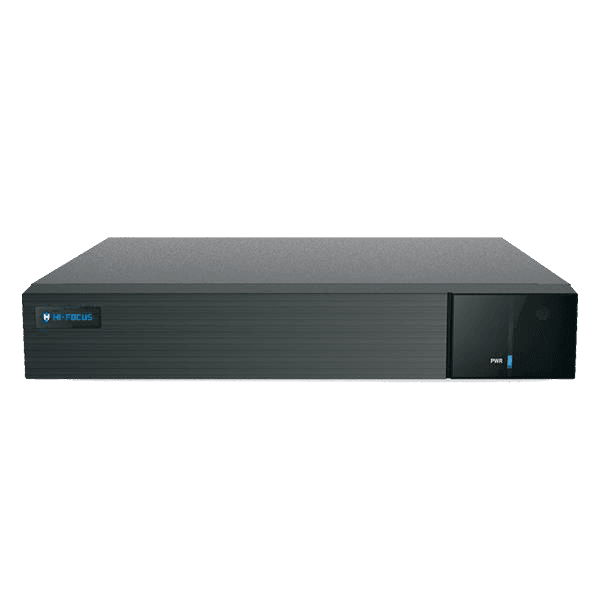

16 CHANNEL XVR
HD-XVR-5116TLC
Product Features
- 16 CH Support TVI / CVI / AHD 5MP/4MP/1080P/720P/WD1 video input
- 16 CH Support 8CH 5MP/4MP/3MP/1080P/960P/720P IP video input
- Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphics User Interface (GUI), window style operation by mouse, Multi-mode recording: manual / timer / motion
- Playback : 16 CH simultaneously playback
- Search: time slice, time, event, tag search
- Express and flexible backup via USB, network and so on
- Pentaplex: preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network Transmission and remote surveillance with mobile device
- Authorization management, log review and device status review, HDMI 1080P output, true high resolution display, Support PTZ Preset and auto cruise, up to 255 Presets and 8 cruises
- Support NAT function and QR Code scanning by mobile phone and PAD
- Powerful smart phone & Pad surveillance with IOS and Andriod OS
Specifications
- SYSTEM
- VIDEO
- AUDIO
- RECORD
- PLAYBACK
- ALARM
- NETWORK
- MOBILE DEVICE
- STORAGE
- BACK UP
- PORT
- ENVIRONMENTAL
SYSTEM
OS
Embedded Linux
VIDEO
Incoming Bandwidth
32Mbps
Outgoing Bandwidth
80Mbps
Video Compression
H.264/H.265
IP Video Input
8CH, Up to 5MP@30fps
Analog Video Input
BNC × 16 BNC interface (1.0Vp-p; 75Ω)
Input Resolution
TVI/AHD/CVI:1080P/1080P Lite/720P/720P Lite/WD1
Output
HDMI×1: 1920×1080/1280×1024/1024×768 VGA×1: 1920×1080/1280×1024/1024×768 BNC×1: CVBS (used as the main or spot output)
Multi-screen Display
1/4/6/8/9/13/16/25
AUDIO
Local Audio Input
RCA ×1
2-way Audio
Take up Channel One Audio Input
Local Output
RCA × 1 (linear, 600Ω)
Compression
G.711(U/A)
RECORD
Resolution
5MP/4MP/1080P/720P/WD1 video input
Local Record Frame Rate
5MP Lite: 10fps; 4MP Lite/1080P : 12fps (PAL)/15fps (NTSC); 1080P Lite/720P/WD1 : 25fps (PAL)/30fps (NTSC)
Bite Stream
32Kbps - 5Mbps
PLAYBACK
Simultaneous Playback
16 CH
Search
Time slice / time / event / tag search
Smart Search
Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Function
Play, pause, FF, FB, digital zoom, etc
ALARM
Mode
Manual, motion, exception, smart event
NETWORK
Interface
RJ45 10/100Mbps × 1
Network Protocol
TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Client Connection
Max. 10 users access
MOBILE DEVICE
OS
iOS, Andriod
STORAGE
HDD
SATA×1, upto 10TB
BACK UP
Local Backup
U disk, USB mobile HDD
Network Backup
Yes
PORT
RS 485
RS 485 × 1 (half-duplex)
USB
USB2.0×2 (in the rear panel)
Remote Controller
Optional
ENVIRONMENTAL
Power Supply
DC12V/3A
Power Consumption
≤ 10W (without HDD)
Working Environment
-10 ~ 50 ℃, 10%~90% humidity
