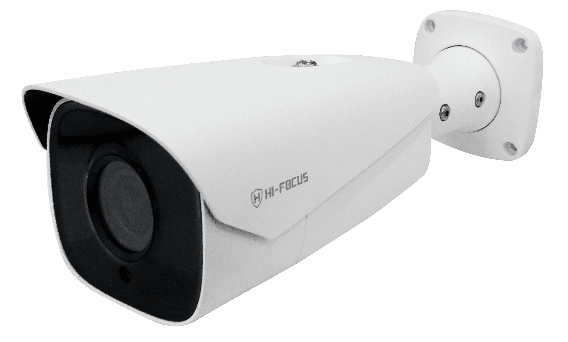

2MP ANPR NETWORK CAMERA
HC-IPC-T4744-0600-32G
Product Features
- HD License Plate Recognition (LPR) Camera: Captures clear images of license plates for security and monitoring.
- Automatic Day & Night Mode: Adjusts to lighting conditions for round-the-clock visibility.
- Advanced Noise Reduction: 2D/3D DNR minimizes grainy or blurry images for sharper video.
- Clear Images in Any Light: 120dB WDR ensures details are visible even in bright or dark areas.
- Efficient Video Compression: Supports Smart H.265, H.265+, H.264+, H.264, and MJPEG to save storage without losing quality.
- Intelligent Processing: Uses a built-in smart algorithm for better recognition and performance.
- Multiple Video Streams: Triple streaming allows different video feeds for various security needs.
- Focus on What Matters: ROI (Region of Interest) lets you prioritize critical areas for better clarity.
- Seamless Integration: Compatible with ONVIF standards for easy connection with other security systems.
- Flexible Network Options: Supports Ethernet (RJ45) and optical SFP for reliable connectivity.
- Multiple Power Options: Runs on AC 24V, DC 12V, or PoE, with backup power for uninterrupted operation.
- Surge Protection: 6KV surge protection safeguards the network interface from electrical spikes.
- Easy Third-Party Integration: Supports SDK and API for smooth connection with Automatic Number Plate Recognition (ANPR) systems.
Specifications
- CAMERA
- VIDEO
- SMART
- LPR
- AUDIO
- STORAGE
- NETWORK
- INTERFACE
- GENERAL
CAMERA
Sensor
1/2.8" progressive scan, CMOS
Shutter
Auto/Manual, 1/6~1/100000 s
Min. Illumination
Colour: 0.001 Lux (F1.2, AGC ON) B/W:0.001 Lux (F1.2, AGC ON)
Lens
5~50mm @ F1.6, horizontal field of view: 50° ~ 7.1° / 7~22mm@F1.6, motorized (H: 44°~17.6°) (Optional)
Iris
DC-iris
Day& Night
Automatically removable IR-Cut filter(ICR)
Digital Noise Reduction
2D/3D DNR
S/N
>52dB
Defog
Optical Defog & Digital Defog
WDR
120 dB
VIDEO
Video Compression
Smart H.265 / H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 code Profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream:2MP (1920×1080): Max. 60 fps; Sub Stream: 720P: Max. 30 fps; Third Stream: D1/CIF/480x240Max. 30 fps
HLC
Supported
BLC
Supported
ABF
Supported
OSD
Up to 4 OSD
ROI
Up to 4 areas
Privacy mask
Up to 4 areas
SMART
Image Settings:
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Intelligent Identification
Scene change detection, video tampering detection, license plate recognition, motion detection
General Function
Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion correction
Smart IR
100mtr
LPR
Snapshot
Overview and cutout of plate for picture
White List
10000
Capture Speed Range
0 ~ 70km/h
AUDIO
Audio Compression
G.711
Two-way audio
Supported
Suppression
Supported
STORAGE
Edge Storage
Micro SD, up to 128 GB / 256 GB (Optional)
Network storage
NAS (Network Attached Storage) Local PC for instant recording
NETWORK
Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration
ONVIF (Profile S, Profile G) API
Online Connection
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
INTERFACE
Audio I/O
3.5 mm audio interface Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O
1 / 1
Network
1 RJ45 10/100M
GENERAL
Power
12 V DC±25% / PoE Power consumption: 11 W
Dimensions (L × W × H)
279.5 × 100.3 × 88.9
Weight
1.04kg (2.2 lb)
Working Environment
-30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing)
