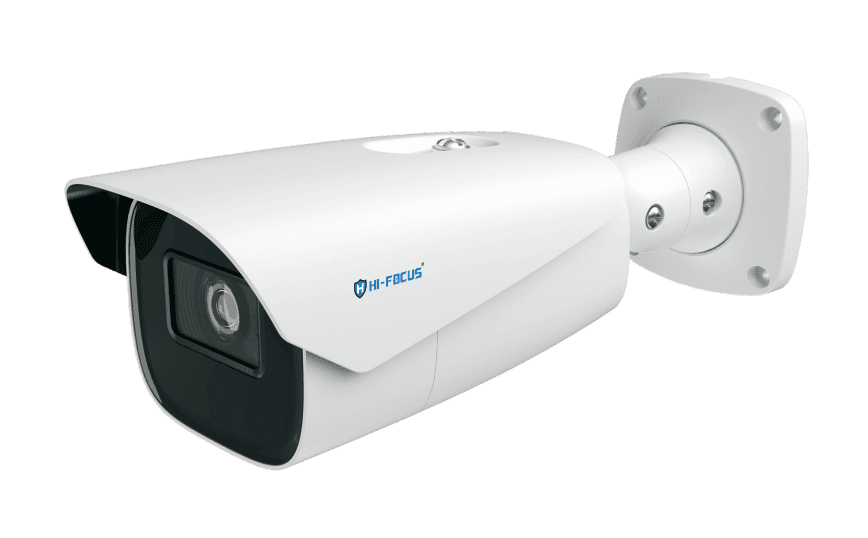

4MP ANPR NETWORK CAMERA
HC-IPC-T4214-0360G
Product Features
- High-Resolution 4MP Video: Captures clear 2688x1520 resolution at 30 frames per second for smooth and detailed footage.
- Smart Video Compression: Supports H.265+, H.264+, H.265, H.264, and MJPEG, reducing file size while keeping high-quality video.
- Day & Night Vision: Automatic IR Cut Filter (ICR) ensures clear images both during the day and at night.
- Motorized Lens: Easily zoom in and adjust focus for better viewing control.
- Advanced Image Enhancements: Features 3D DNR (Noise Reduction), True WDR (Wide Dynamic Range), HLC (Highlight Compensation), BLC (Backlight Compensation), and ROI (Region of Interest) coding for clear video in all lighting conditions.
- Expandable Storage: Built-in microSD card slot supports up to 256GB for local video recording.
- Flexible Power Options: Works with DC12V, AC24V, or PoE (Power over Ethernet) for easy installation.
- Multi-Stream Support: Three video streams allow different feeds for multiple viewing options.
- Weatherproof & Durable: IP67-rated, making it waterproof and dustproof, ideal for outdoor use.
- Remote Access: View live footage from anywhere using a smartphone with iOS or Android.
- Smart Security Features: Supports License Plate Recognition (LPR) and Vehicle Type Detection for traffic and security monitoring.
- Third-Party Integration: Compatible with SDK and API, allowing seamless connection with Automatic Number Plate Recognition (ANPR) systems and other security platforms.
Specifications
- CAMERA
- VIDEO
- INTERFACES
- FUNCTIONS
- LPR
- GENERAL
CAMERA
Image Sensor
1 / 1.8" CMOS
Image Size
2688 × 1520
Electronic Shutter
Manual or auto; manual: 1 / 1 s ~ 1 / 100000s
Iris Type
DC Iris
Min. Illumination
0.001 lux@F1.6, AGC ON; 0 lux with IR
Lens
2.8~12mm / 8~32mm/5~50mm(Optional)
Field of View (H)
100.4°~49° / 41°~15.5°
Lens Mount
Integrated
Recommended ANPR Distance
3~8m / 7~30m/16-48m
Wide Dynamic Range
120dB
BLC
Yes
HLC
Yes
Defog
Yes
Digital NR
3D DNR
S/N Ratio
≥50dB
Angle Adjustment
Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360°
VIDEO
Video Compression
Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression Standard
Baseline Profile/Main Profile/High Profile
Resolution
4MP (2688 ×1520), 2K (2560 ×1440), 3MP (2304 ×1296), 1080P (1920 ×1080), 720P (1280 ×720), D1, CIF
Main Stream
4MP/2K/3MP/1080P (60Hz :1 ~ 30fps; 50Hz: 1 ~ 25fps) HFR Mode: 1080P/720P (60Hz: 1~60fps; 50Hz: 1~50fps)
Sub Stream
720P/D1/CIF (60Hz :1 ~ 30fps; 50Hz: 1 ~ 25fps)
Third Stream
D1/CIF (60Hz :1 ~ 30fps; 50Hz: 1 ~ 25fps)
Bit Rate
64 Kbps ~ 8 Mbps
Bit Rate Type
VBR / CBR
Audio Compression
G711A / U
Image Settings
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
ROI
Each ROI to be configured separately
INTERFACES
Network
RJ 45 10M/100M Self-adaptive Ethernet port
Video Output
CVBS output (BNC× 1)
Audio
1CH audio input; 1CH audio output
Storage
Built-in micro SD card slot; up to 256GB
Reset
Yes
Alarm
1CH alarm input; 1CH alarm output
RS 485
Yes
RS 232
Yes
FUNCTIONS
Remote Monitoring
Web Browser/NVR/mobile APP
Online Connection
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, P2P, QoS
Interface Protocol
ONVIF
Storage
Network remote storage; micro SD card storage
Smart Alarm
Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection
Intelligent Analytics
License plate recognition, vehicle type detection, video exception detection
General Function
Watermark, video mask, heartbeat, corridor mode
Security
Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/HTTPs
PoE
Yes, IEEE802.3af
IR Distance
50~70m / 70~100m
Protection Grade
IP67
LPR
Snapshot
Overview and cutout of plate for picture
Vehicle Plate Database
10,000
License Plate Detection
Capture of vehicles with license plates and vehicles without license plate, Support plate exposure, travel direction recognition, plate character fault tolerance, plate comparison, snapshot time display Vehicle feature extraction: including vehicle color, plate color, vehicle type, vehicle brand/model, etc.
Capture Speed Range
0~80km/h / 0~120km/h
GENERAL
Power Supply
DC12V/AC24V/PoE
Power Consumption
< 12W
Storage Conditions
- 30 °C ~ 60 °C (-22°F~140°F); Humidity: less than 95 % (non-condensing)
Operating Condition
- 30 °C ~ 65 °C (-22°F~149°F); Humidity: less than 95 % (non-condensing)
Dimensions (mm)
278.3 × 100.2 × 88.7
Weight (net)
Approx. 1.176KG
