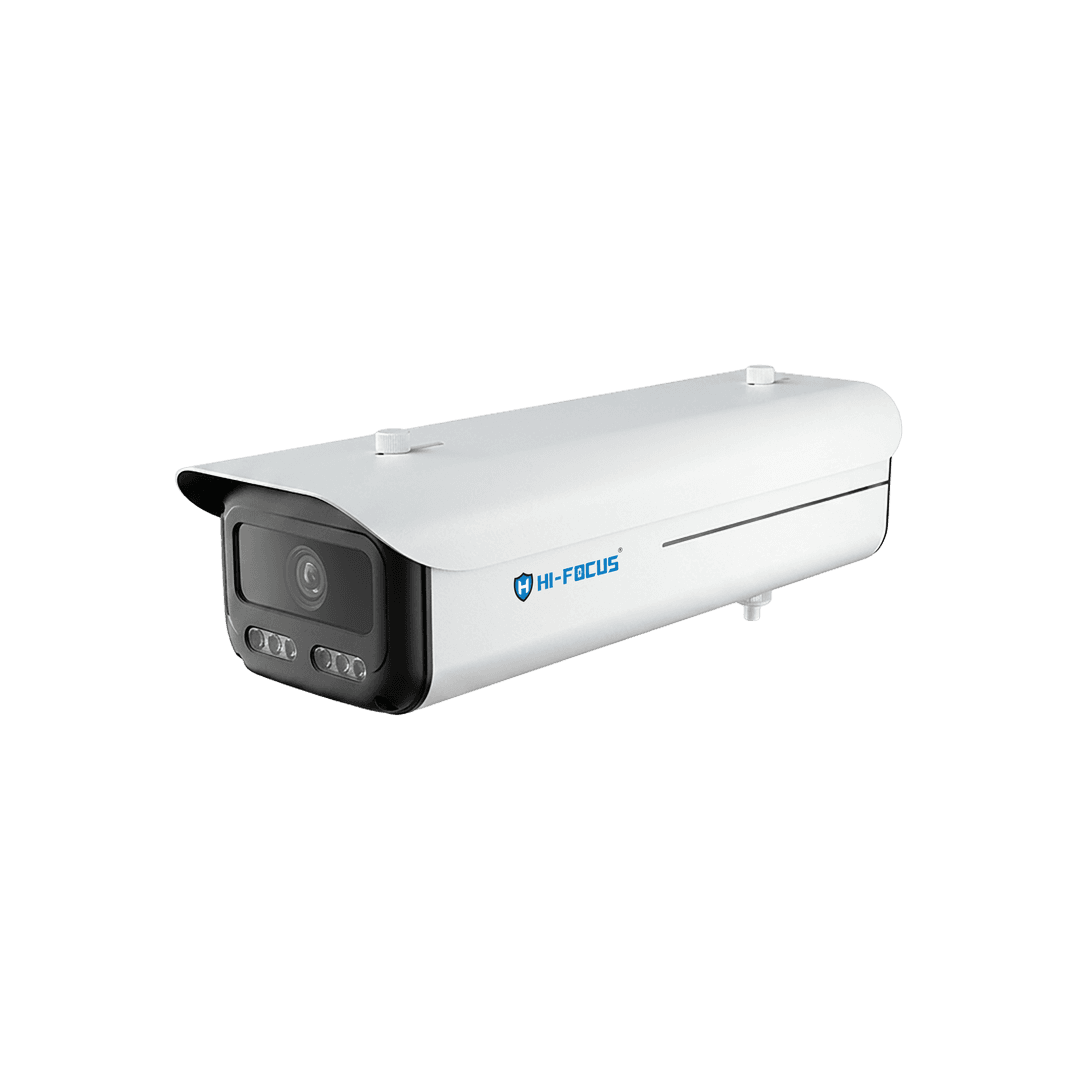

4MP ANPR NETWORK CAMERA
HC-IPC-T4214-0360G-120K
Product Features
- Crystal Clear 4MP Video: Captures sharp 2592 × 1520 resolution at 30 frames per second for smooth and detailed footage.
- Efficient Video Compression: Supports H.265+, H.264+, H.265, H.264, and MJPEG to save storage while maintaining high quality.
- Motorized Lens: Easily zoom in and out for a flexible and adjustable viewing experience.
- Advanced Image Enhancements: 3D DNR (Noise Reduction), True WDR (Wide Dynamic Range), HLC (Highlight Compensation), BLC (Backlight Compensation), and Defog ensure clear video in all lighting and weather conditions.
- Expandable Storage: Built-in microSD card slot supports up to 256GB for local recording.
- Multiple Power Options: Works with DC 24V, AC 24V, or PoE (Power over Ethernet) for easy and reliable installation.
- Multiple Video Streams: Triple streaming allows different video feeds for different purposes.
- Mobile Access: Monitor live footage from anywhere using a smartphone with iOS or Android.
- License Plate Recognition (LPR): Automatically detects and recognizes license plates for security and traffic monitoring.
- Weatherproof & Durable: IP67-rated, making it waterproof and dustproof for outdoor use.
- Third-Party Integration: Supports SDK and API, allowing easy connection with Automatic Number Plate Recognition (ANPR) systems and other security platforms.
Specifications
- CAMERA
- VIDEO
- INTERFACES
- FUNCTIONS
- SMART
- GENERAL
CAMERA
Image Sensor
1 / 1.8" CMOS
1 / 1.8" CMOS
2592 × 1520
Electronic Shutter
Manual or auto; manual: 1 / 1 s ~ 1 / 100000s
Iris Type
Dc Iris
Min. Illumination
0 lux with LED ON
Lens
2.8~12mm@F1.3, motorized 8~32mm@F1.6, motorized
Field of View
Horizontal:100.4 ; Horizontal: 41 ;
Lens Mount
Integrated
Focus
Fixed
Recommended ANPR Distance
3 ~ 8m 7~30m
Wide Dynamic Range
120dB
BLC
Yes
HLC
Yes
Defog
Yes
Digital NR
2D/3D DNR
S/N Ratio
≥50dB
Angle Adjustment
Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°
VIDEO
Video Compression
Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression Standard
Baseline profile, Main Profile, High Profile
Resolution
4MP (2592 ×1520 ), 2K (2560 ×1440), 3MP(2304 ×1296), 1080P(1920 ×1080), 720P (1280 ×720 ), D1, CIF
Main Stream
4MP/2K/3MP/1080P( 60Hz :1 ~ 30fps; 50Hz : 1 ~ 25fps ) HFR Mode: 1080P/720P (60Hz: 1~60fps; 50Hz: 1~50fps)
Sub Stream
720P/D1/CIF ( 60Hz :1 ~ 30fps; 50Hz : 1 ~ 25fps )
Third Stream
D1/CIF ( 60Hz :1 ~ 30fps; 50Hz : 1 ~ 25fps )
Bit Rate
64 Kbps ~ 12 Mbps
Bit Rate Type
VBR / CBR
Audio Compression
G711A / U
Image Settings
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, image flip, image mirror, NR, etc. adjustable through client software or web browser
ROI
Each ROI to be configured separately
INTERFACES
Network
RJ 45 10M/100M self-adaptive Ethernet port
Video Output
CVBS output (BNC× 1)
Audio
1CH audio input; 1CH audio output;
Storage
Built-in micro SD card slot; up to 256GB
Reset
Yes
Alarm
2CH alarm input; 2CH alarm output
RS 485
Yes
RS 232
Yes
FUNCTIONS
Remote Monitoring
Web Browser/NVR/mobile APP
Online Connection
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP,FTP, NMP, RTMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS
Interface Protocol
ONVIF
Storage
Network remote storage; micro SD card storage
Smart Alarm
Motion detection, sensor detection, SD card error, SD card full, IP address conflict, cable disconnection
Intelligent Analytics
License plate recognition, video exception detection
General Function
Watermark, video mask, heartbeat, corridor mode
PoE
Yes, IEEE802.3bt
LED View Distance
IR range: 2.8~12mm@ ~ 70 m /8~32mm@ ~ 100 m
SMART
Snapshot
Original image (4MP resolution) and license plate image
Vehicle Plate Database
10,000
License Plate Detection &Recognition
Capture of vehicles with license plates and vehicles without license plate, Support plate exposure, travel direction recognition, plate character fault tolerance, plate comparison, snapshot time display Vehicle feature extraction: including vehicle color, plate color, vehicle type
Capture Speed Range
0~120km/h
GENERAL
Power Supply
DC24V/AC24V/PoE
Power Consumption
< 21.5W
Storage Conditions
- 30 °C ~ 65°C (-22°F~140°F), Humidity: less than 95 % (non - condensing)
Operating Condition
- 30 °C ~ 60 °C (-22°F~149°F), Humidity: less than 95 % (non - condensing)
Ingress Protection
IP67
Dimensions (mm)
430 × 138 × 108
Weight (net)
Approx. 2.5KG
