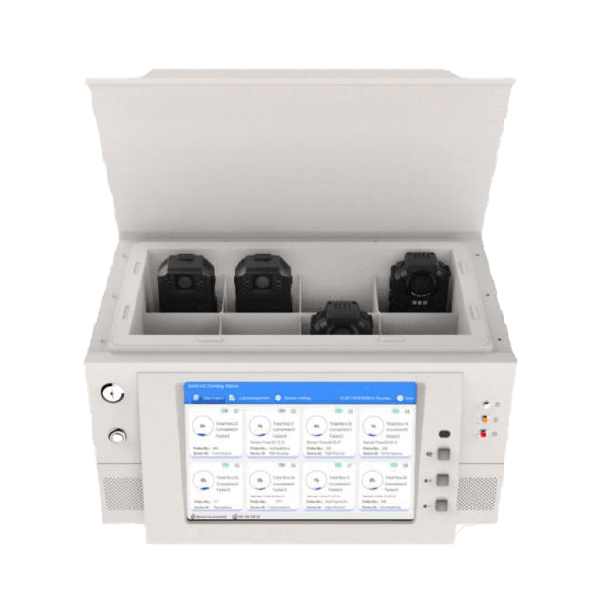

8 PORT DOCKING STATION
HD-DS108
Product Features
- Large & Clear Touchscreen: Features a 10-inch display with a sharp 1920x1200 resolution for easy viewing and control.
- Multi-Camera Support: Connects up to 8 cameras for backup and charging at the same time.
- Android System Compatible: Runs smoothly on an Android-based system for easy operation.
- Fast Data Uploading: Equipped with a 1GB Ethernet port for quick and reliable data transfer.
- Quick Data Export & Charging: Fast file transfer and battery recharging for efficient use.
- Automatic Cloud Upload: Sends data directly to an FTP server, eliminating the need for local storage.
- Network Error Alerts: Built-in alarm notifies you of any connection issues.
- Secure Data Backup: Supports RAID 0 & RAID 1 storage, ensuring data protection and recovery.
- Easy Search & Playback: Allows quick access to stored footage for reviewing past recordings.
Specifications
- HARDWARE
- SOFTWARE
- ENVIRONMENT
- STRUCTURE
- SOFTWARE FUNCTION
HARDWARE
Smart Code
Supported
Screen
10 inch touch screen, resolution 1920x1200
Memory
2G
Local Storage
Support 2 disks (2TB~8TB optional)
Data interface
8 channel docking slot or USB connection
OS
Android 5.1
SOFTWARE
Software
Mult-cell docking software
ENVIRONMENT
Working temperature
-20℃-55℃
Working time
7x24 hours continue working
STRUCTURE
Dimension
295mmx400mmx213mm
Weight
14kg
Working power
Normal voltage: AC100V—240V~50/60HZ
Network
One RJ45, 100/1000M
USB
4 USB 2.0 ports
SOFTWARE FUNCTION
Automatically backup
When BWC connect to the terminal, it will back up all the video, audio, pictures and log file automatically.
Storage empty
The terminal will empty all the data in the BWC when the backup finished.
Status display
During the backup progressing, it can display the device id, name, group, storage space, backup status and so on.
Upload
All the video files will upload to the center server automatically or manually.
System log
System will record all operation log of the terminal.
Backup time
8 channel 16G data can be finished in 60 minutes, average speed is 4~6MB/S.
Recharging
8 channels BWC can finish recharging in 4 hours and 45 minutes if the unit is OFF, if it’s ON, it need about 5 hours.
