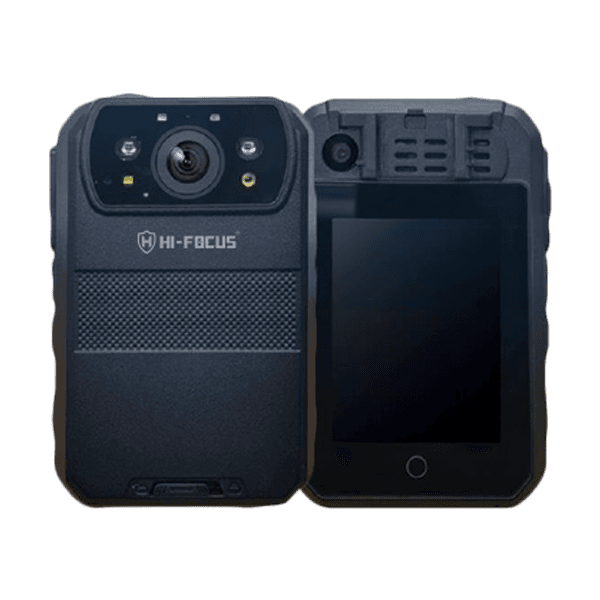

BODY WORN CAMERA
HC-BWC-503-64G
Product Features
- Full HD Recording: Captures video in 1080P resolution for clear and detailed footage.
- Efficient Video Storage: Uses H.264 compression to save space while maintaining video quality.
- Long Recording Time: Supports continuous 1080P recording for up to 12.5 hours.
- Replaceable Battery: 3050mAh hot-swappable lithium battery allows quick battery changes without turning off the device.
- Easy-to-Use Touch Screen: Features a 2.4-inch touchscreen for smooth navigation and control.
- Built-in GPS Tracking: Live location tracking ensures accurate monitoring.
- WiFi Connectivity: Upload recordings wirelessly for instant access.
- Large Storage Capacity: Expandable up to 512GB, allowing plenty of video storage.
- Push-to-Talk (PTT) Communication: Supports network PTT function for quick voice communication.
- Night Vision Mode: Supports both automatic and manual night vision for clear footage in the dark.
- Facial Recognition (Optional): Can include A1 facial recognition for enhanced security.
- Compact & Lightweight: Small and portable design for easy carrying.
- Highly Customizable: Flexible features to meet different security and surveillance needs.
Specifications
- Basic Configuration
- Video
- Snapshot
- Night Vision
- Power
- Structure
- Light
- Package
Basic Configuration
System
Android 12.0
Cameras
Main camera: 4MP
Memory
2G+16G/ 2G+32G/ 4G+64G/ 4G+256/ 4G+ 512G optional
Sensor
G-sensor
Lens
110°horizontal angle of view
Screen
2.4 inches color touch screen
Interface
Support Type-C USB2.0
Storage
32GB/ 64GB/ 128GB/ 256GB/ 512GB optional
Protocol
Support ONVIF, RTMP, RTSP,FTP, WebRTC and other streaming media protocols and SIP protocol.
Built-in WIFI
802.11 a/b/g/n/ac, also support 2.4GHz & 5GHz
Satellite positioning
GPS / GLONASS
Bluetooth
BT5.0, for wireless earphone
NFC
Optional
Compatability
Support to install third-party app
Related software
BWC Helper, BWC Manager, BWC Tool, PMedia Software
Language
English/ Russian/ Spanish/ Arabic/ Vietnamese etc.
Startup logo
Support to customize startup logo
Video
Recording resolution
1080P30FPS, 720P30FPS, 480P30FPS
Live streaming resolution
1080P, 720P, 480P
Compression
H.264
Video format
MP4
Video clip
Auto, 1min, 3min, 5min, 10min, 20min, 30min optional
Pre-recording
Up to 60 seconds
Post-recording
OFF, 10s, 30s, 1min, 2min, 5min, 10min, 30min optional
Snapshot
Burst interval
2s, 3s, 5s, 10s, 20s, 30s optional
Picture format
JPG
Night Vision
Distance
Up to 10 meters
IR switch
Auto or manual
White light
Manual
Power
Battery capacity
3050mAh
Standby time
About 50 hours
Working time
1080P continues working 12.5 hours 720P continues working 13 hours
Charging time
Less than 2.5 hours
Structure
Weight
160g (clip is not included)
Dimension
91x58x28 (mm)
Drop resistance
1.8 meters
IP grade
IP66
Working temperature
-10o & 55oC
Light
Indicator light
Video recording: red light is flashing Audio recording: yellow light is flashing Standby: green light is always on Live streaming: blue light is flashing
Package
Packing list
1x Body camera; 1x Charger; 1x USB-C cable; 1x Clip
Box dimension
185x135x55 (mm)
Single box weight
About 450g
