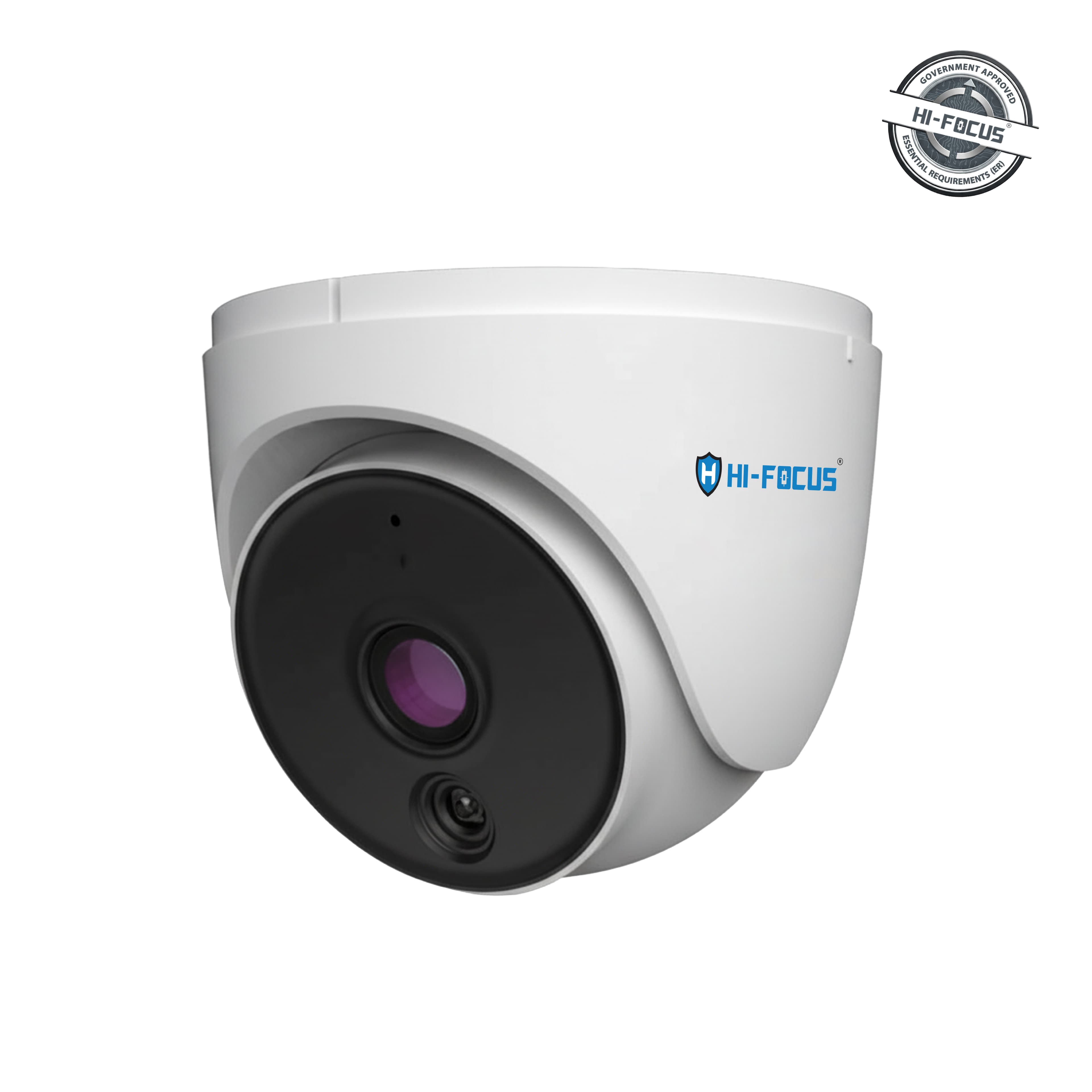

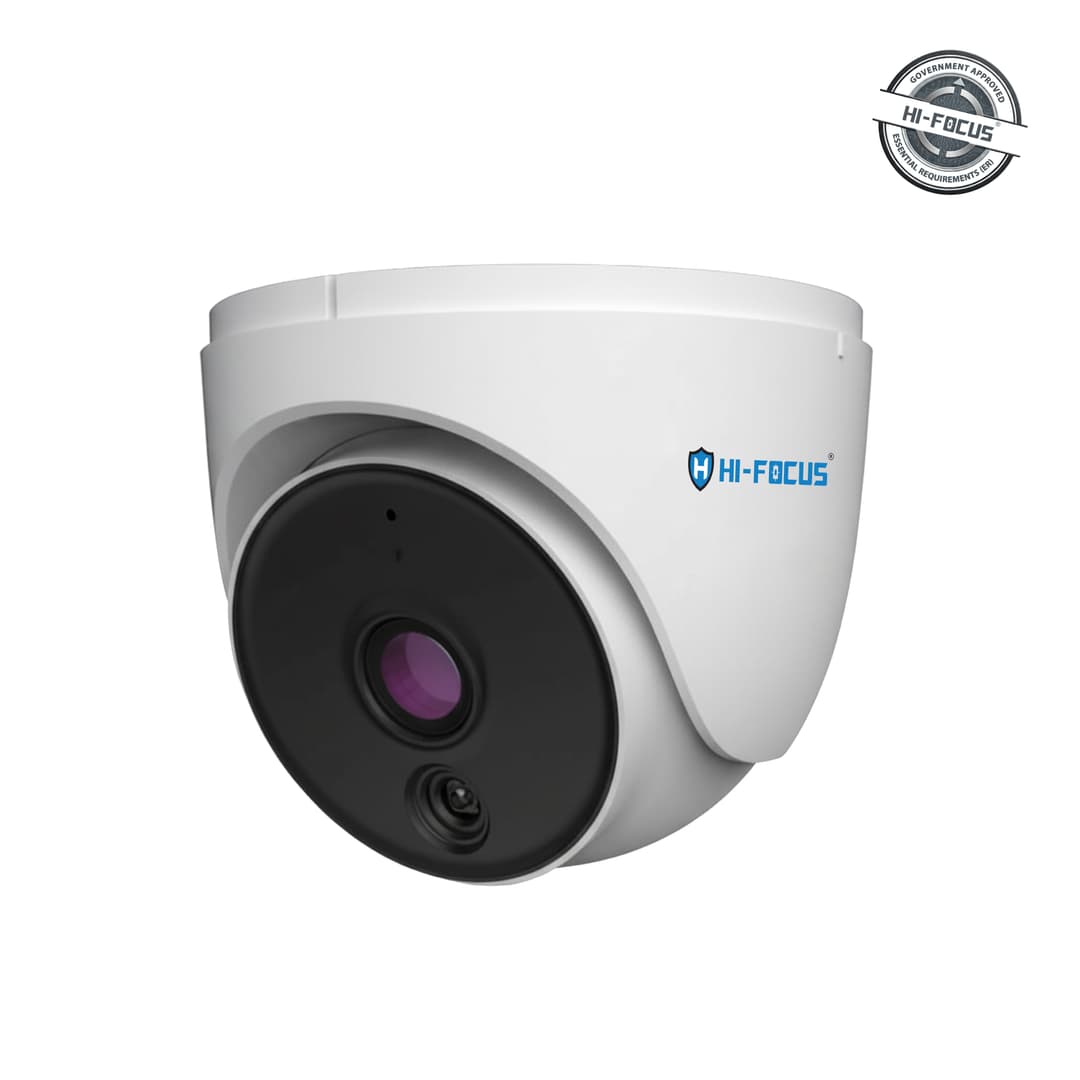

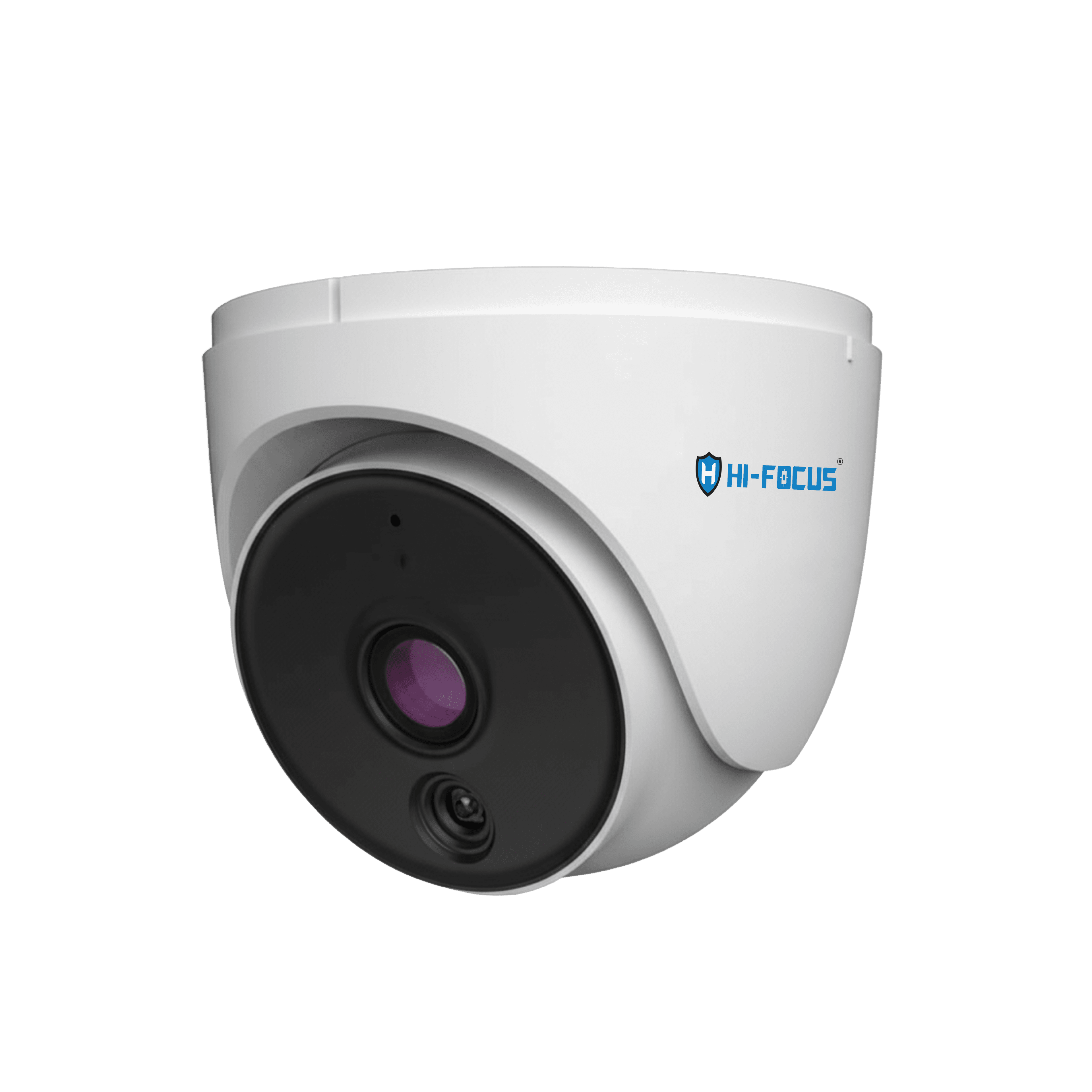

2MP DOME CAMERA
HC-DS2401N2PA-DL
Product Features
- 1080P real-time image, high resolution, true color
- AHD / TVI / CVI standard and lossless video output
- CMOS progressive scan, perfectly capturing the moving object
- Support OSD menu
- High speed, long distance and real time transmission
- 20m IR view distance; up to 10m white light view distance
- Support COC
- Support coaxial audio transmission
- Support 960H CVBS output
Specifications
- CAMERA
- FUNCTIONS
- GENERAL
CAMERA
Image Sensor
1 / 3 "CMOS
Resolution
2MP
Image Size
1920 × 1080
Video Output
AHD / TVI /CVI/CVBS
Audio
1CH built-in MIC
Image System
PAL / NTSC
Electronic Shutter
Auto
View Distance
IR range: 20 m; White light range: up to 10m
Frame Rate
TVI: 2MP@25/30fps AHD: 2MP@25/30fps CVI: 2MP@25/30fps CVBS: PAL/NSTC
Min. Illumination
0.005lux @F1.2, AGC ON; 0 lux (LED ON)
Lens
2.8 mm
Lens Mount
M12
S / N Ratio
≥52dB (AGC OFF)
FUNCTIONS
Function Control
OSD (COC Control)
Digital WDR
Yes
Digital NR
Yes, 2D DNR (3D, only used with DVRs)
AGC
Yes
Auto White Balance
Yes
BLC
Yes
Contrast
Yes
Saturation/Color Gain
Yes
Sharpness
Yes
Coaxial audio
Yes
Image Setting
Yes
Defect Correction
Auto
Language
English
Angle Adjustment
Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°
GENERAL
Power Supply
DC12V (± 10%)
Power Consumption
LED OFF: < 1W; LED ON: < 3W
Working Environment
-10°C~40°C, 10%~90% (relative humidity)
Dimensions (mm)
Ø 77.5 × 67.6
Weight (Net)
Approx. 0.09KG
