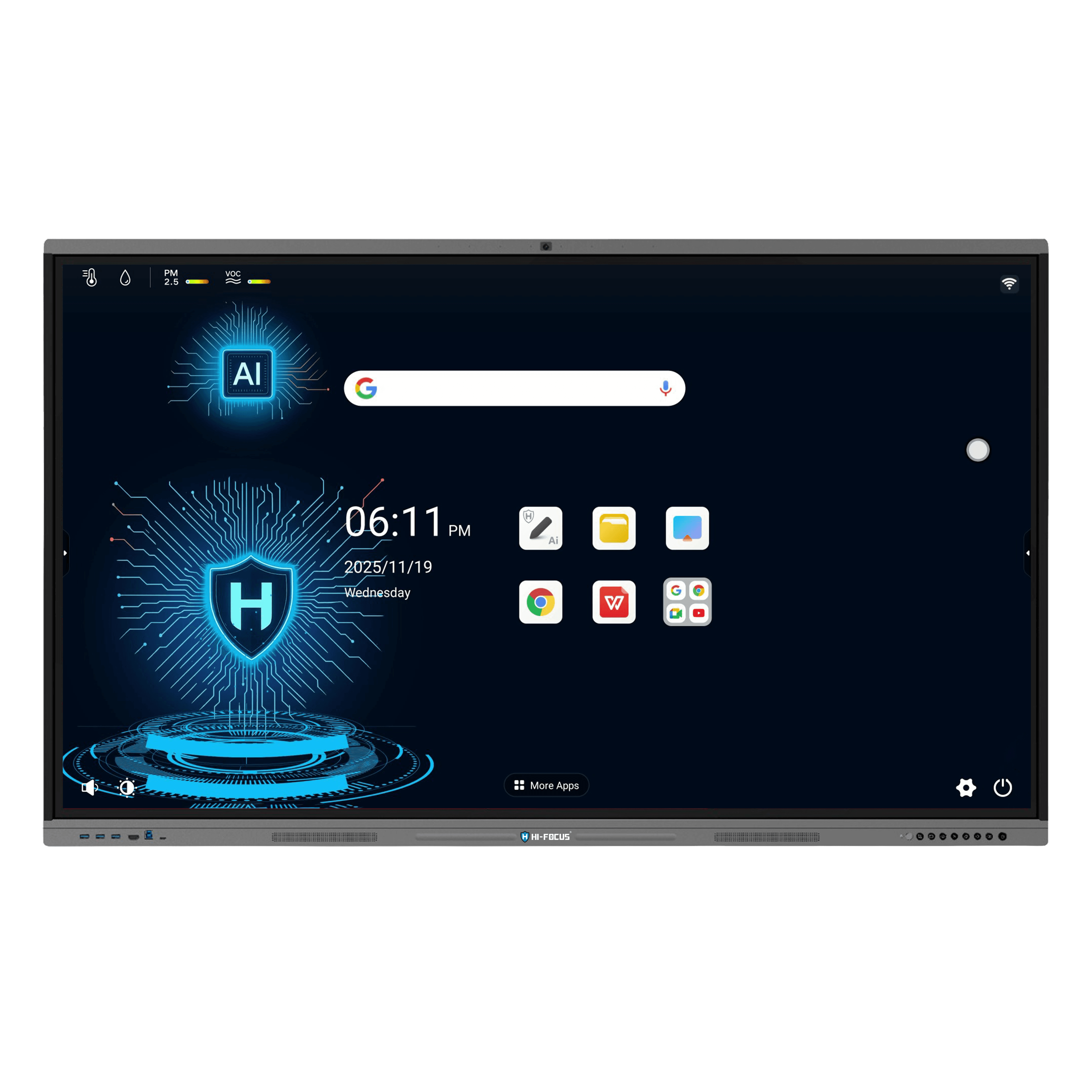

86 INCH SMART INTERACTIVE PANEL WITH CAMERA
HIFP86-8128-48M-AI
Product Features
- Perfect 4K resolution
- Industrial grade aluminum frame
- 4mm thickness Anti-Glare glass
- 15Wx2 Speaker
- <5ms Response
- Password / Pattern Lock protected
- Infrared touch technology for rich writing experience
- Support APK install and authorize management, permit or forbidden application
Specifications
- INTERACTIVITY
- COMPUTING
- CONNECTIVITY
- CAMERA
- PHYSICAL SPECIFICATIONS
- ELECTRICAL
- ENVIRONMENTAL
- ACCESSORIES
Screen Size and Resolution
86” 4K/3840x2160
Bezel color
Aluminum frame(Black & Grey color)
Back Light
Direct type LED
Active area (mm)
1895.04 x 1065.96mm
Resolution
3840 x 2160 /UHD
Aspect Ratio
16:9
Contrast Ratio
1200:1/4000:1
Colors
1.07 billion colors
Brightness
350cd/m2
Viewing angle
178°
Glass hardness
Mohs-9 level
Screen surface
4mm thickness Anti-Glare glass
INTERACTIVITY
Touch technology
IR touch
Touch points
40 touch points (Windows/Android)
Touch accuracy
±2mm
Recognition
Finger or passive stylus
Response Rate
<4ms (single touch) <10ms (max touch inputs)
Minimum object size
2mm
Response Time
<5 ms
Windows OPS Slot
OPS
Hotspot
Yes
Bluetooth
V 5.2
WiFi
WiFi 6 Single Band
System support
Win11/Win10/Win8/Win7/Mac OS /Android /Chrome OS/Linux
COMPUTING
Operating System
Android 14.0
CPU
Quad-Core Cortex A72 + Quad Core Cortex A53
GPU
Mali-G52 MC3
RAM
DDR4 8GB
ROM
128GB
Compliance
Windows; Mac; Linux; Chrome OS
CONNECTIVITY
Front ports
USB3.0 x 3 (Public), Touch out USB type B x 1, HDMI in 2.0 x 1, Type C x 1
Front Button
Indicator: Red/Blue, Light Sensor, Screenshot, Screen recording, eye protection, touch lock, Home- / V+/Power ECO)
Speaker
15W x 2 (subwoofer support, max up to 60W)
Rear Side ports
RS232 x 1, MIC IN x 1, SPDIF out x 1, Earphone x 1, HDMI IN x 1, HDMI OUT x 1, RJ45 IN x 1, USB 2.0 x 1, TF x 1, TOUCH USB 3.0 x 1, Type C(OTG) x 1
CAMERA
Model
UHD Camera
Install Method
Built-in(on the middle-upper frame)
Pixel
48MP
FOV Diagonal:
120°
Compliance with OS
Windows; Android; Mac; Linux; Chrome OS
PHYSICAL SPECIFICATIONS
Net Weight/(kg±2)
56.8
Gross Weight/(kg±2
72
Overall size(mm) (without bracket)
1953 x 1155 x 105
Overall size(mm) (with bracket)/ (L*H*W)
1953 x 1155 x 130.5
Carton size(mm)/ (L*H*W)
2060 x 1258 x 190
VESA(mm)
800 × 600
ELECTRICAL
Input Voltage
90-264V AC
Power Consumption Standby
<0.5W
Power Consumption
Maximun < 360W
ENVIRONMENTAL
Working Temperature
0° ~ 40°
Storage Temperature
-20° ~ 60°
Working Humidity
10% ~ 80% RH
Storage Humidity
10% ~ 90% RH
ACCESSORIES
Accessories
Pen 1pcs, 2m power cord 1pcs, Wall mount kit
