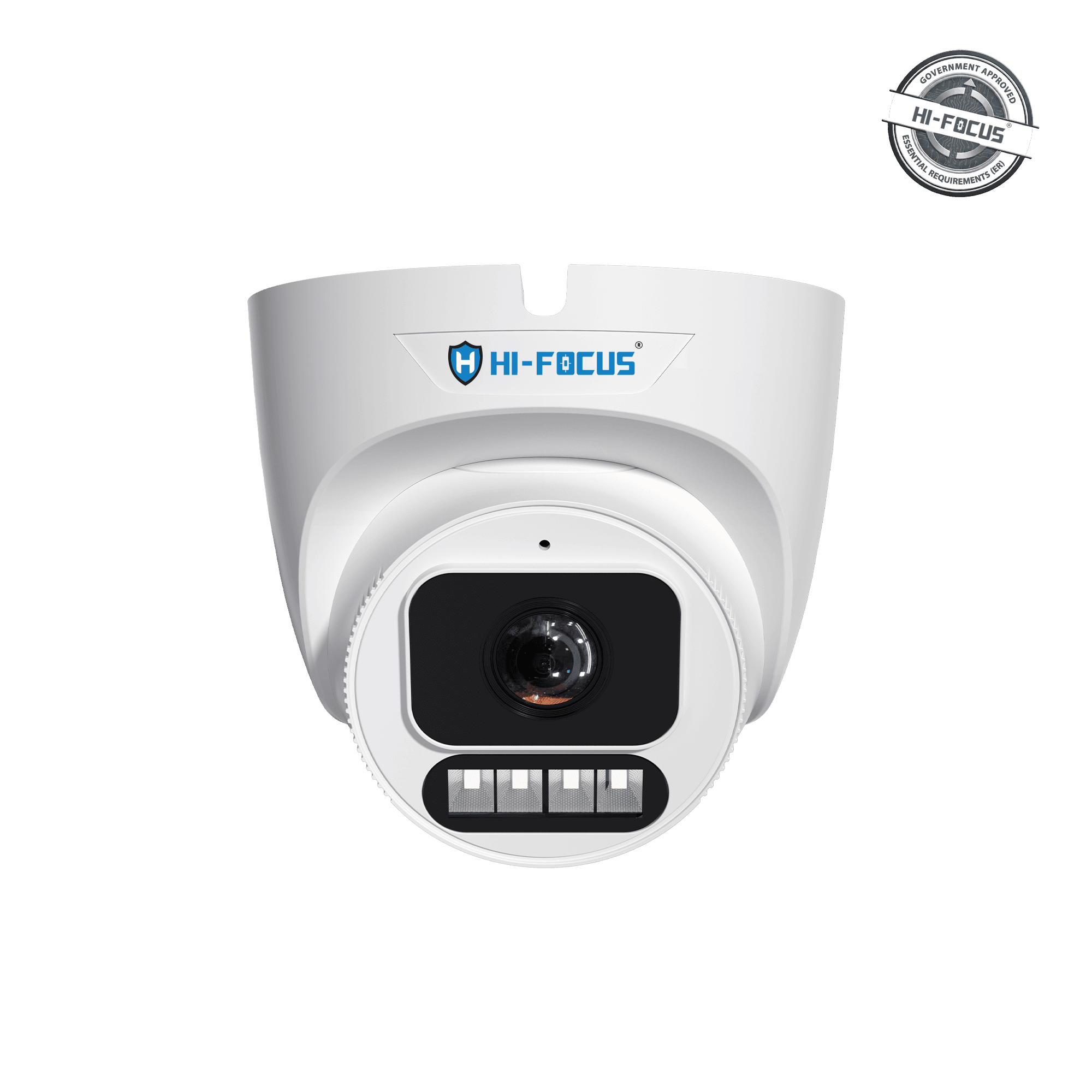

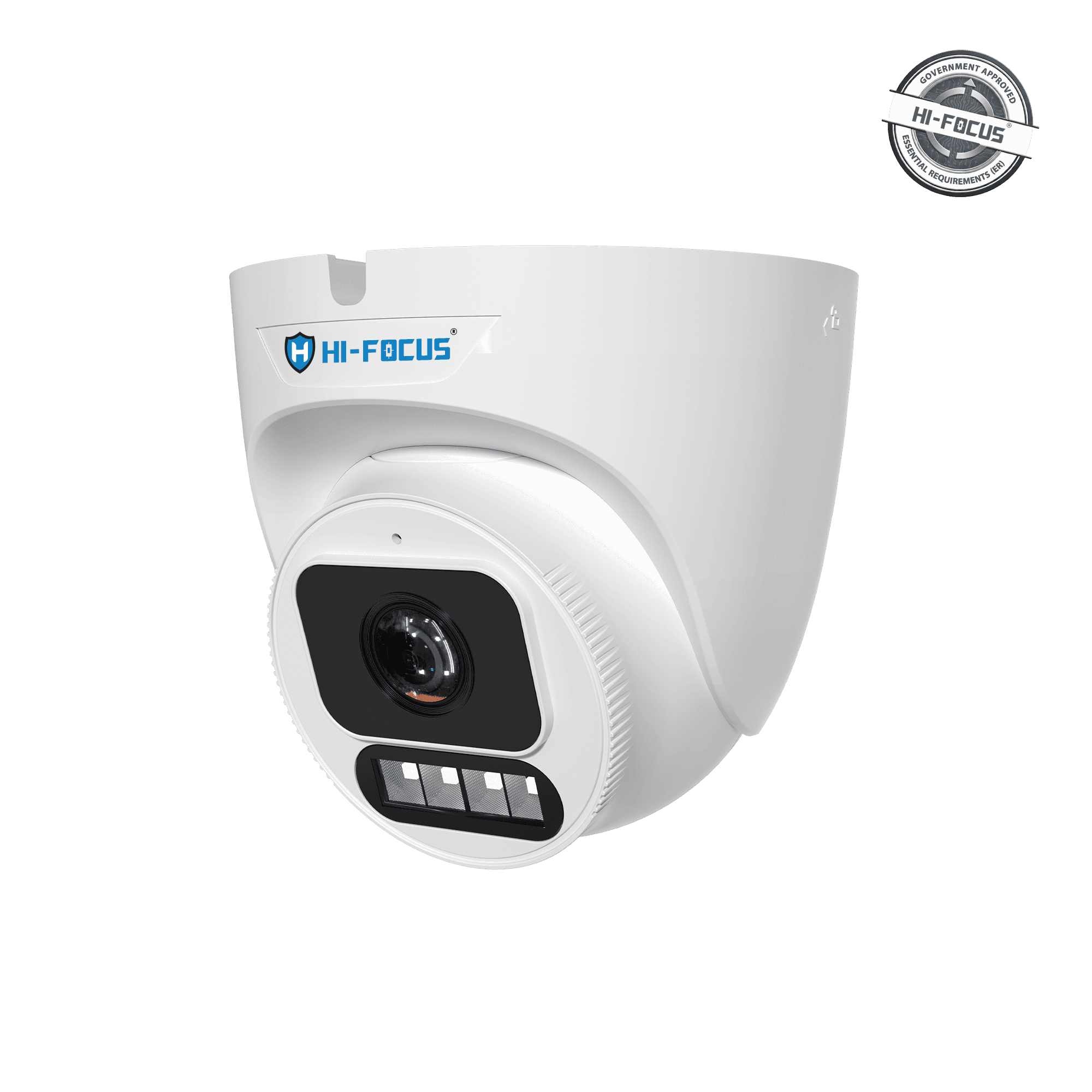

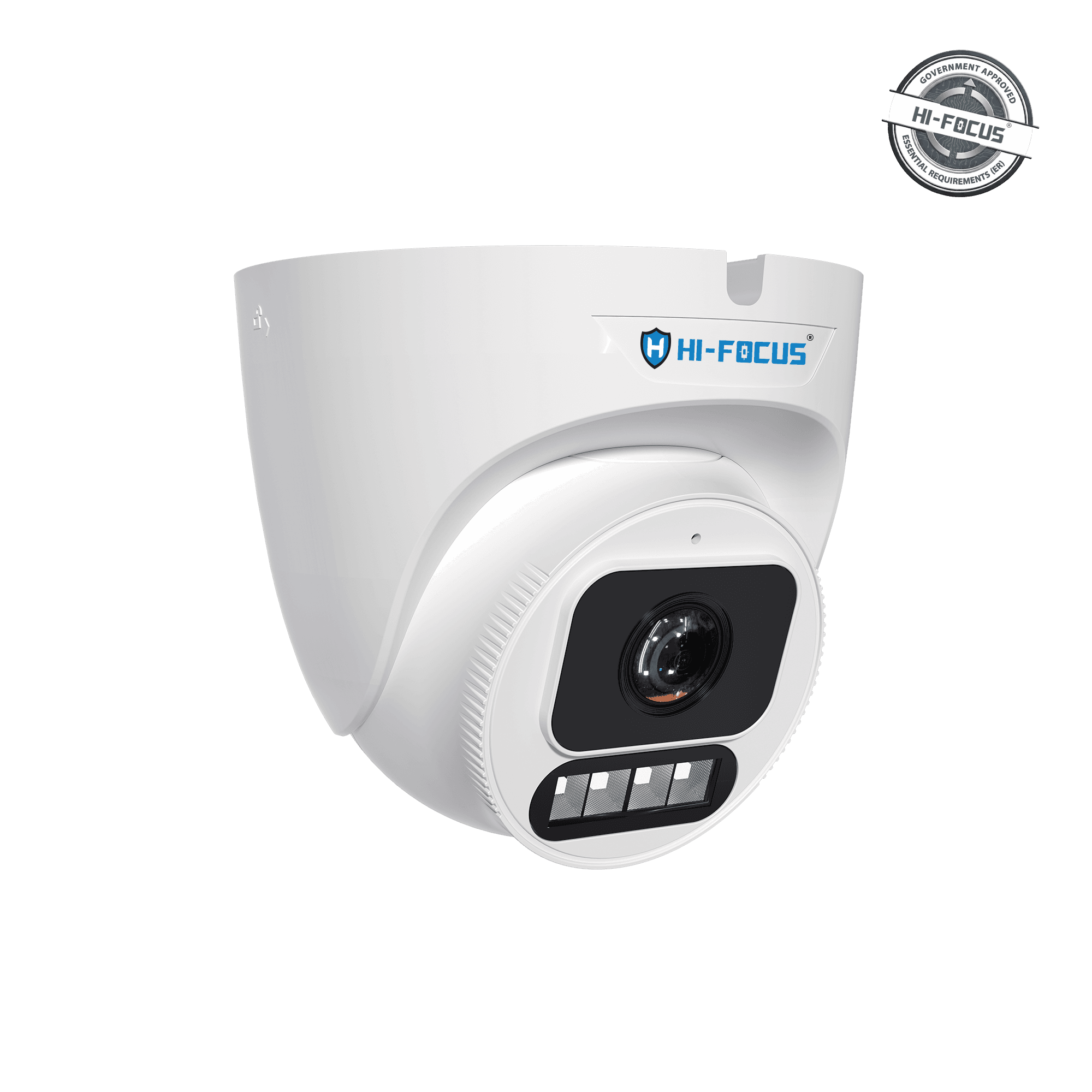

4MP 4G DOME CAMERA
HIPC-D3314-DLSG-R1
Product Features
- 4 MP High Definition – 4MP, 2560×1440 video @ 15FPS
- Lens – 2.8mm Fixed Lens
- Low-Light Performance – 0.01Lux (F1.6, AGC ON), 0Lux with IR
- Night Vision – Upto to 40m IR Range, 20m White Light
- Video Compression – H.265 / H.264
- Connectivity – RJ45 Ethernet + 4G LTE SIM support
- Storage Support – MicroSD Card up to 512GB
- Cybersecurity – AES 256-bit Encryption, HTTPS & Trusted Boot
- Power Supply – DC12V ±15%, Max. 6.5W
- Protection Rating – IP66 Weatherproof Rating
Specifications
- CAMERA CORE FEATURES
- VIDEO
- SECURITY
- INTERFACE
- NETWORK
- GENERAL
CAMERA CORE FEATURES
Image Sensor
1/3" CMOS Image Sensor
Minimum illuminatio
Color:0.01Lux@(F1.6,AGC ON), B/W:0Lux with IR
Shutter Speed
1s-1/100000s
Day&Night
IR-cut filter with auto switch (ICR)
Smart IR
upto 40m
Wave length
850nm
White Light Distance
20m
WDR
DWDR
Focal Length
2.8mm
Aperture Range
F1.6
Aperture Type
Fixed
Digital Zoom
16X
VIDEO
Video Compression
H.265,H.264
Video Bit Rate
128~6144 Kbps
Audio Compression
G.711U
Max. Resolution
4MP, 2560x 1440
Main Stream
15fps(2560 x 1440, 2304 x 1296, 1920×1080, 1280×720)
Sub Stream
15fps(704× 576, 352× 288)
AGC
Supported
3DNR
Supported
ROI
Supported
OSD
4 areas
Privacy Mask
4 areas
SECURITY
Cyber Security
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, account lockout, syslog, video encryption, HTTPS, trusted upgrade, trusted boot
INTERFACE
Network Interface
1× RJ-45(10/100Base-T)
Micro SD Card
Support upto 512GB
Built-in Mic And Speaker
Supported
LTE (4G Sim)
LTE-FDD B1/3/5/8 and LTE-TDD B34/38/39/40/41
Network Speed
10 Mbps downlink / 5 Mbps uplink
Sim Card
Airtel, Jio, BSNL and Vodafone Idea
NETWORK
Protocols
TCP, UDP, HTTP, HTTPS, DNS, RTSP, RTMP, DDNS, SMTP, FTP, NTP, DHCP, IGMP, ICMP, RTSPS,
User/Host
8 users
Web
IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
GENERAL
Operating Temperature
-30℃~60℃(-22℉~140℉)
Operating Humidity
≤95%RH
Storage Temperature
-30℃~60℃(-22℉~140℉)
Storage Humidity
10%~95%RH(non-condensing)
Power Supply
DC12V±15%, Max. 6.5W
Certification
EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report, REACH, ESD 4KV, BIS-ER-01, BIS-IS-13252
Ingress Protection
IP66
Housing
Metal
Package Dimensions
180(L)90(W)95(H)mm
Gross Weight
0.3kg
NetWeight
0.25kg
