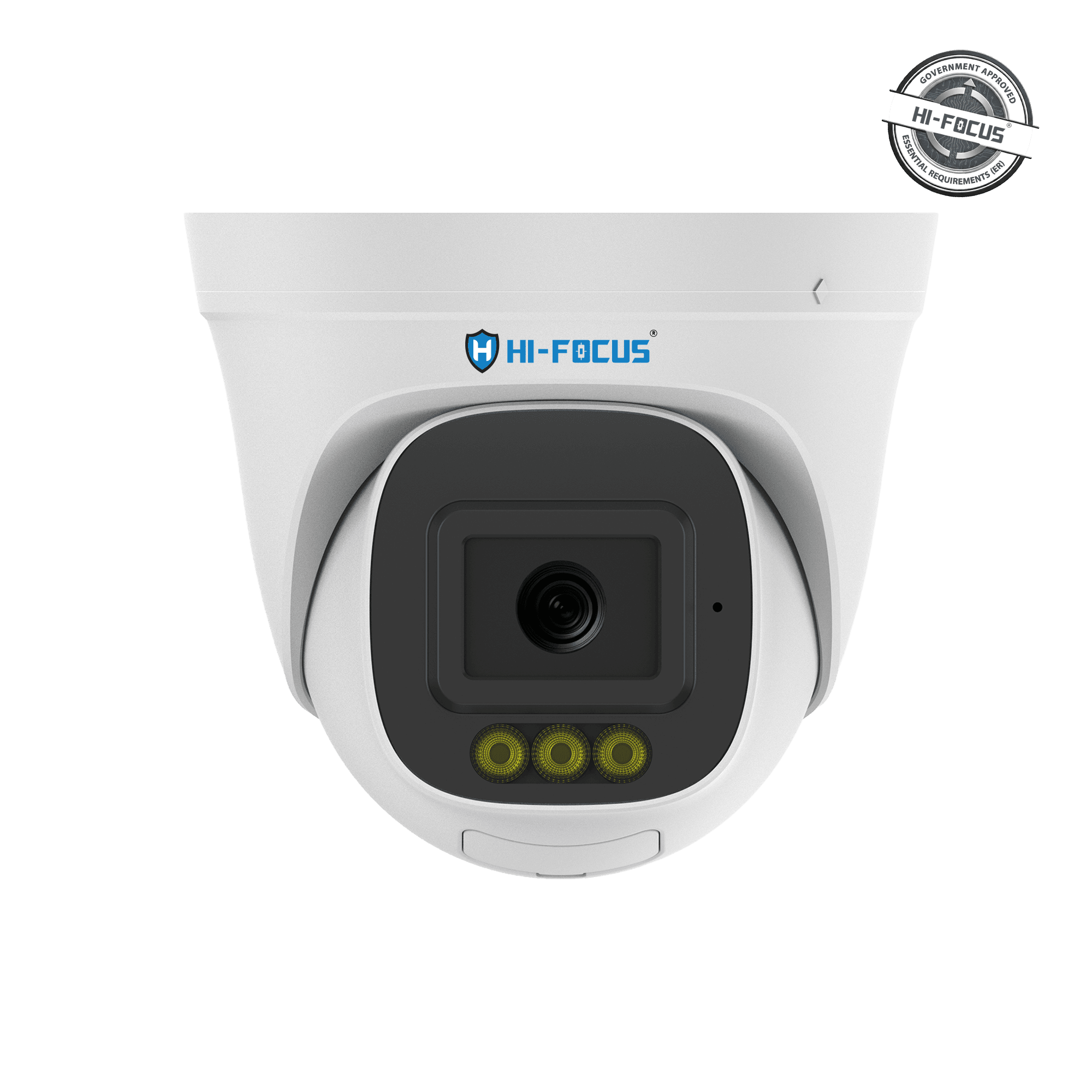

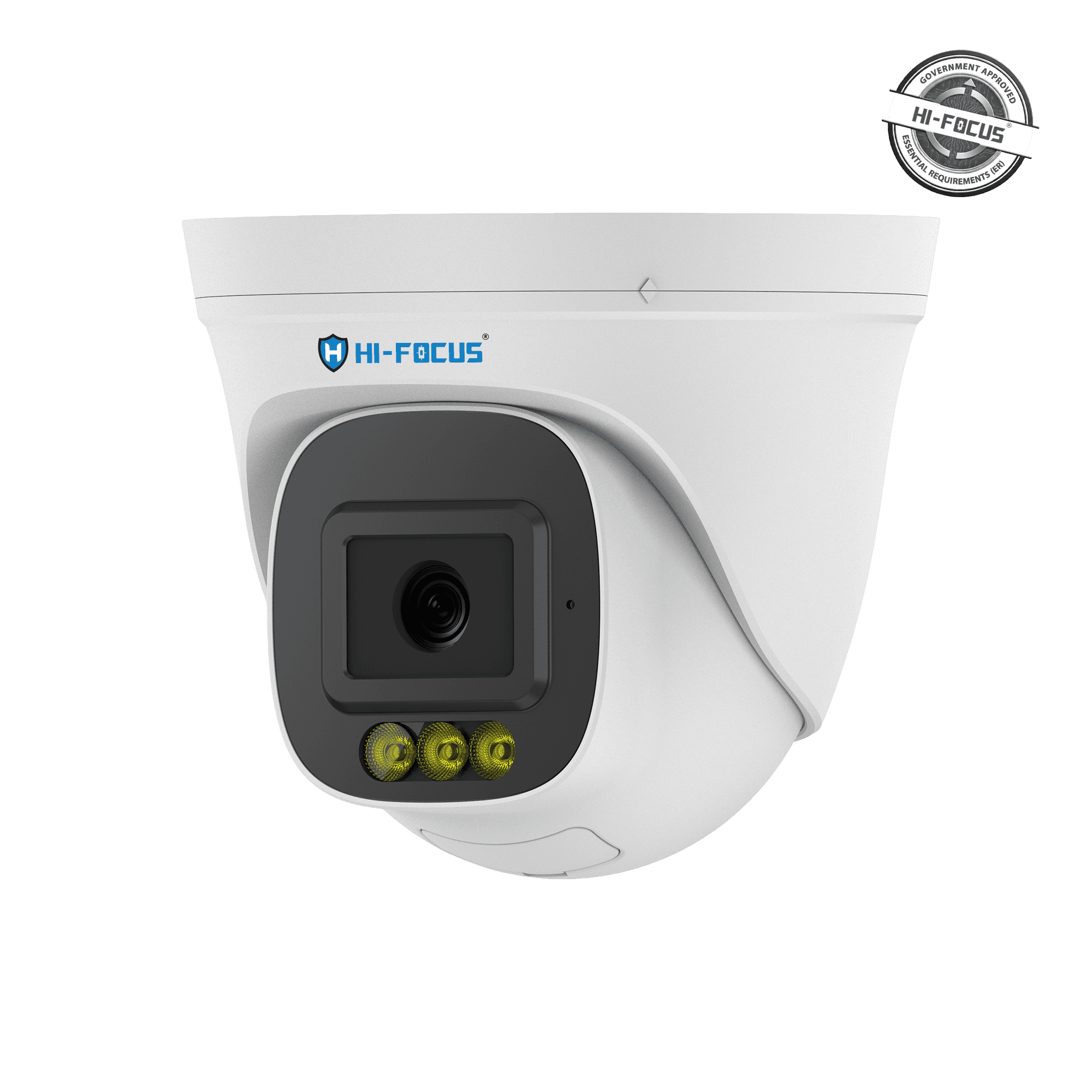

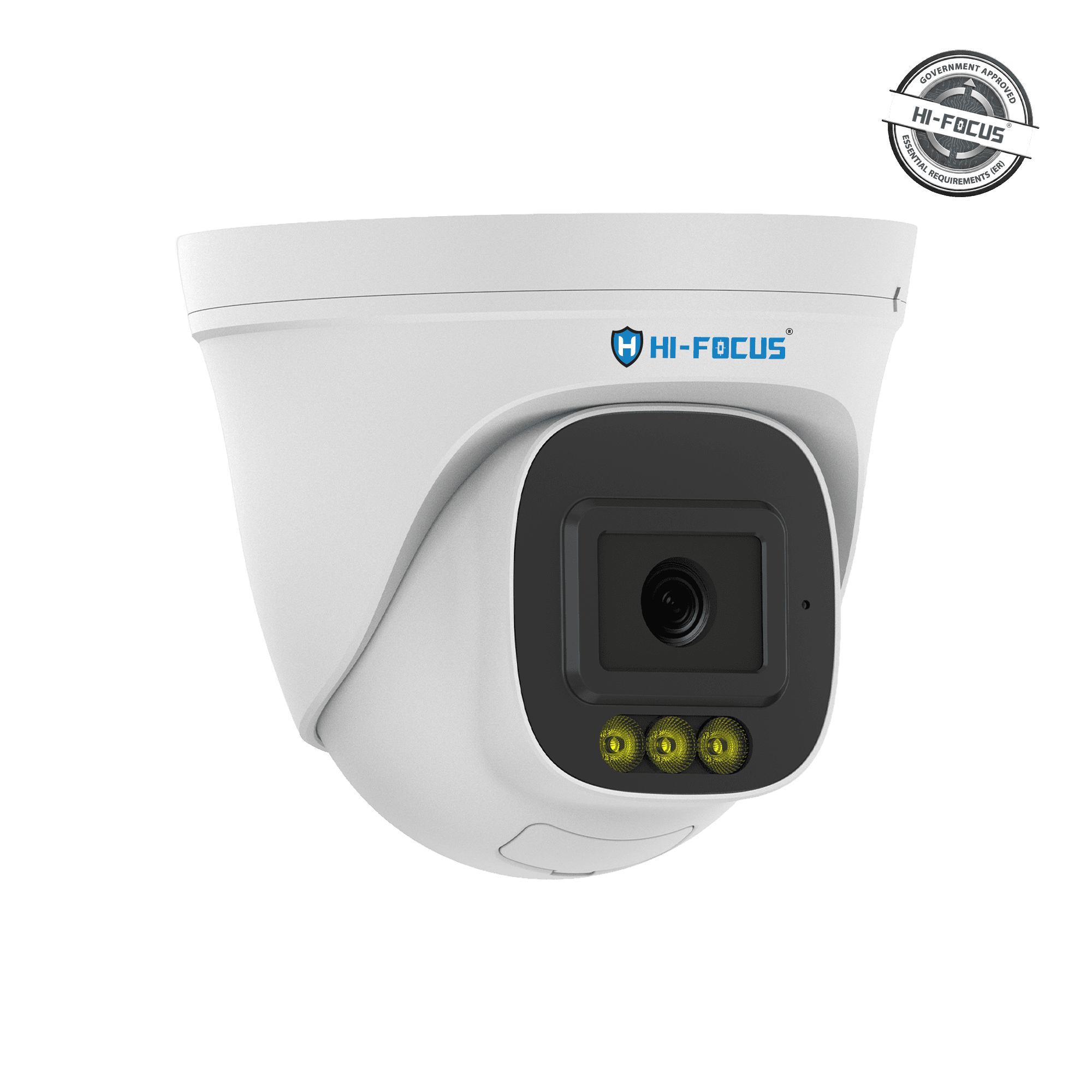

3MP 4G DOME CAMERA
HIPC-D3313-DLSG-I3
Product Features
- 3 MP High Definition – 2304 × 1296 Video @ 15fps
- Lens – 4mm Fixed Lens
- Video Compression – H.265 / H.264
- Low-Light Performance – 0.01Lux (F2.0, AGC ON), 0Lux with IR
- Night Vision – Upto 30M IR Range, 20M White Light
- 4G SIM Compatibility – Supports Airtel, Jio, BSNL & Vodafone Idea
- Wide Dynamic Range – DWDR Support
- Storage Support – MicroSD Card up to 512GB
- Cybersecurity – AES 256-bit Encryption & Secure Boot
- Power Supply – DC12V ±15%, Max. 6.5W
Specifications
- CAMERA CORE FEATURES
- VIDEO
- SECURITY
- INTERFACE
- NETWORK
- GENERAL
CAMERA CORE FEATURES
Image Sensor
1/3" CMOS Image Sensor
Minimum illumination
Color:0.01Lux@(F2.0,AGC ON), B/W:0Lux with IR
Shutter Speed
1s~1/100000s
Day&Night
IR-cut filter with auto switch (ICR)
Smart IR
Up to 30m
Wave length
850nm
Whitelight Distance
20m
WDR
DWDR
Focal Length
4mm
Aperture Range
F2.0
Aperture Type
Fixed
VIDEO
Video Compression
H.265, H.264
Video Bit Rate
128~6144 Kbps
Audio Compression
G.711U
Max. Resolution
3MP, 2304x1296@15fps
Main Stream
15fps(2304 x 1296, 1920×1080, 1280×720)
Sub Stream
15fps(704×576, 352×288)
AGC
Supported
3DNR
Supported
ROI
Supported
OSD
4 areas
Privacy Mask
4 areas
SECURITY
Cyber Security
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
INTERFACE
Network Interface
1×RJ-45 (10/100 Base-T)
Micro SD Card
Support upto 512GB
LTE (4G Sim)
LTE-FDD B1/3/5/8 and LTE-TDD B34/38/39/40/41
Network Speed
10 Mbps downlink / 5 Mbps uplink
Sim Card
Airtel, Jio, BSNL and Vodaphone Idea
NETWORK
Protocols
TCP, RTSPS, RTMPS (Customized)
User/Host
8 users
GENERAL
Operating Temperature
-30°C~60°C(-22°F~140°F)
Operating Humidity
≤95%RH
Storage Temperature
-30°C~60°C(-22°F~140°F)
Storage Humidity
10%~95%RH(non-condensing)
Power Supply
DC12V±15%, Max. 6.5W
Certification
EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report, REACH, ESD 4KV, BIS-ER-01, BIS-IS-13252
Package Dimensions
180(L)90(W)95(H)mm
GrossWeight
0.3Kg
NetWeight
0.25Kg
