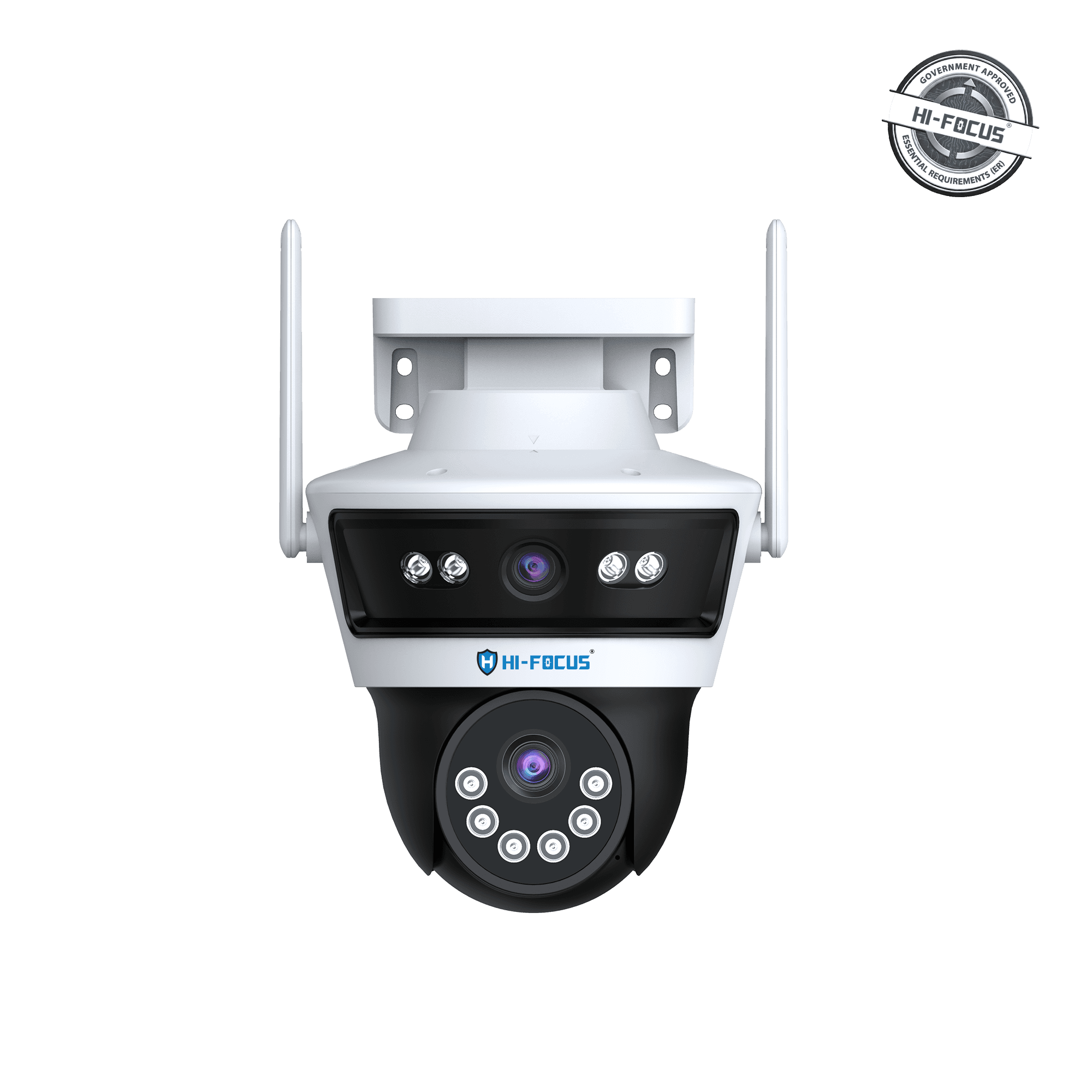

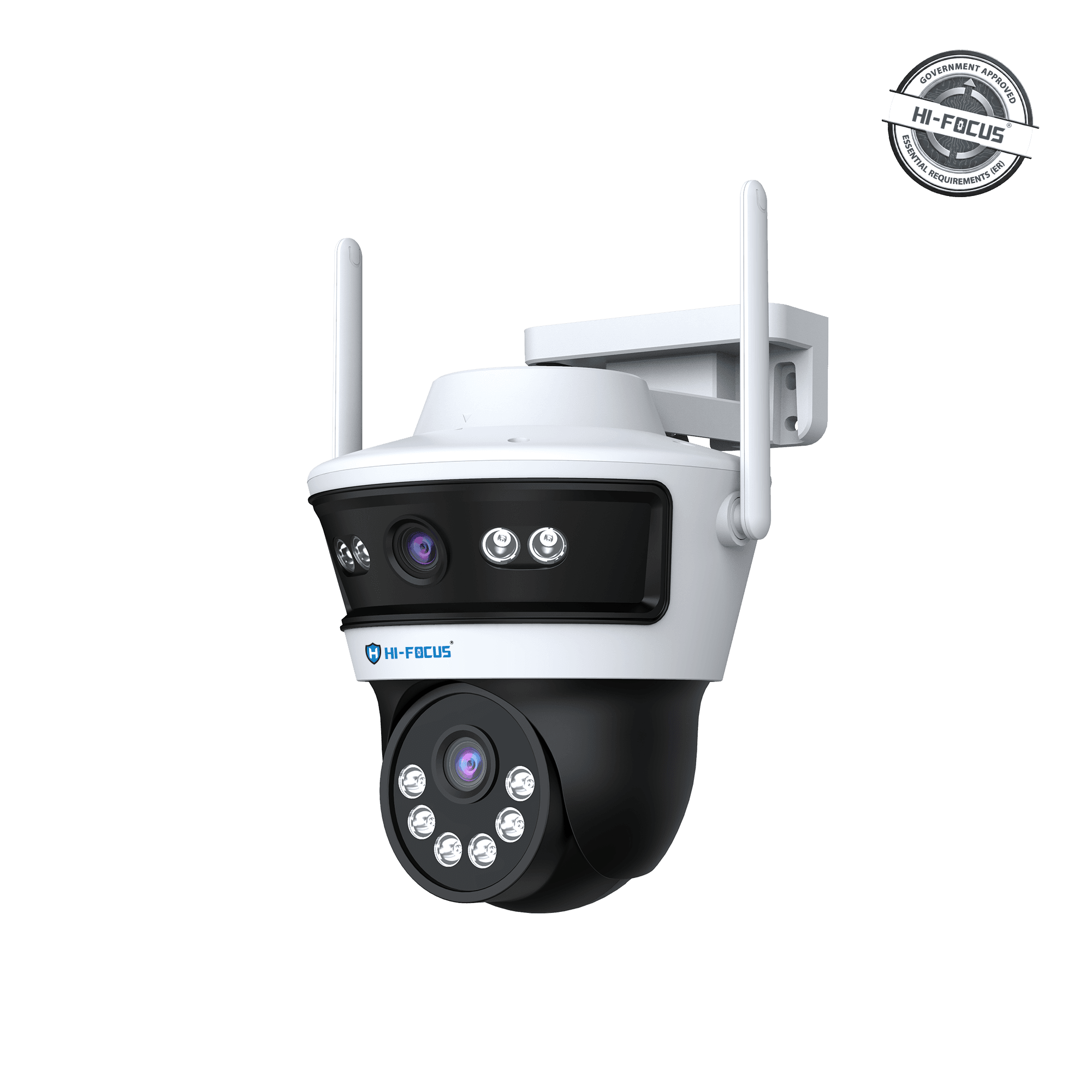

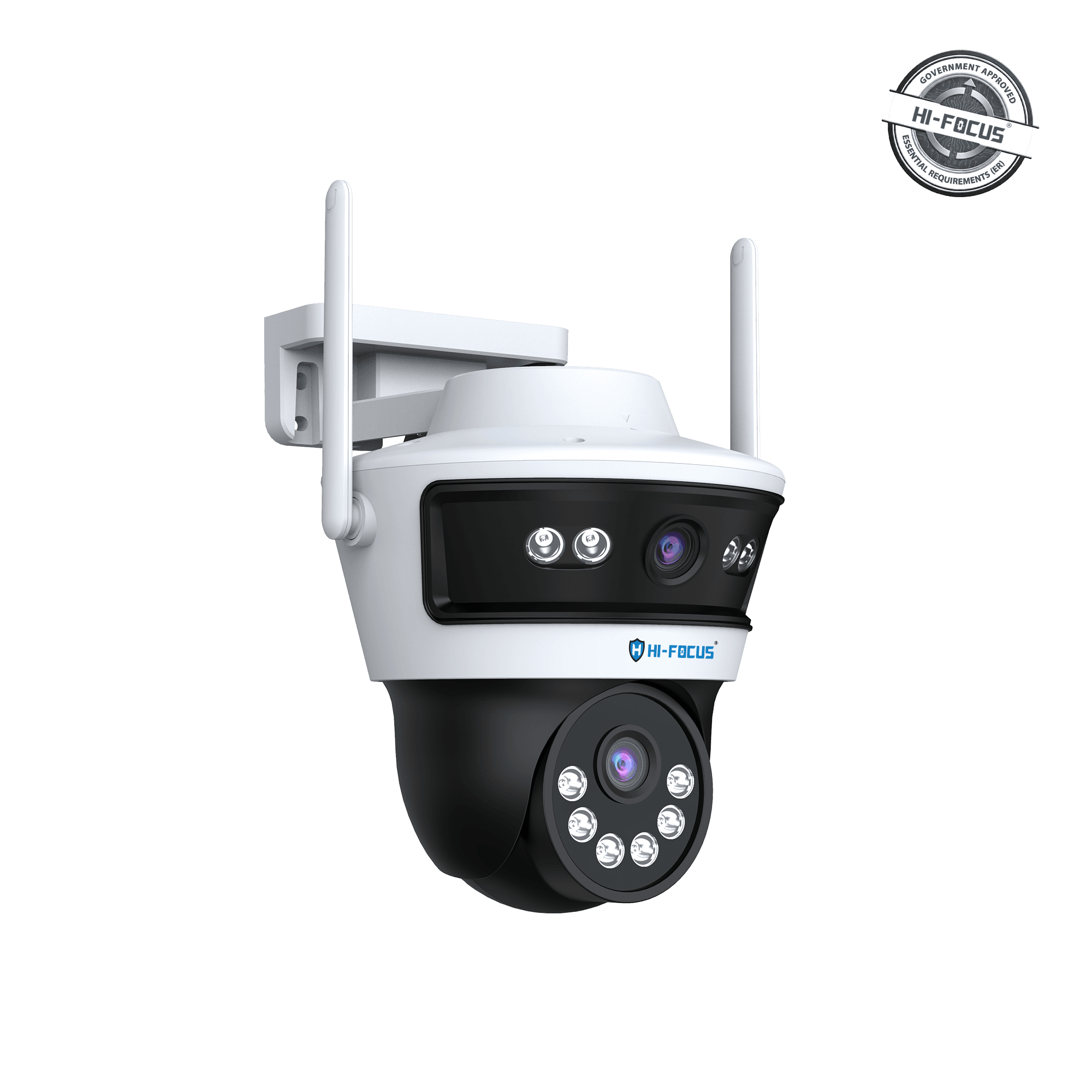

4MP+4MP Dual-Lens Wi-Fi Linkage Camera
HIPC-L5614-DLSW-I4
Product Features
- Dual 4 MP Cameras – Two 4MP CMOS Image Sensors
- Lens – Dual 4mm Fixed Lens
- Video Compression – H.265 / H.264
- Low-Light Performance – 0.01Lux (F2.0, AGC ON), 0Lux with IR
- Night Vision – Upto 30M IR Range, 20M White Light
- Dual-Band WiFi – Supports 2.4GHz & 5GHz WiFi
- Wide Dynamic Range – DWDR Support
- Storage Support – MicroSD Card up to 512GB
- Cybersecurity – AES 256-bit Encryption & Secure Boot
- Power Supply – DC12V ±15%, Max. 6.5W
- Protection Rating – IP66 Weatherproof Rating
Specifications
- CAMERA CORE FEATURES
- VIDEO
- SECURITY
- PAN & TILT
- INTERFACE
- NETWORK
- GENERAL
CAMERA CORE FEATURES
Image Sensor
1/3" 4MP CMOS Image Sensor + 1/3" 4MP CMOS Image Sensor
Minimum illumination
Color:0.01Lux@(F2.0,AGC ON), B/W:0Lux with IR
Shutter Speed
1s~1/100000s
Day&Night
IR-cut filter with auto switch (ICR)
Smart IR
Up to 30m
Wave length
850nm
Whitelight Distance
20m
WDR
DWDR
Focal Length
4mm+4mm
Aperture Range
F2.0
Aperture Type
Fixed
VIDEO
Video Compression
H.265, H.264
Video Bit Rate
128~6144 Kbps
Audio Compression
G.711U
Max. Resolution
2304x2880@15fps
Main Stream
15fps(2560x1440x2)
Sub Stream
15fps(704×576, 352×288)
AGC
Supported
3DNR
Supported
ROI
Supported
OSD
4 areas
Privacy Mask
4 areas
SECURITY
Cyber Security
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot, WPA2 Encrypition
PAN & TILT
Pan Range
350°
Pan Speed
30°/Sec
Tilt Speed
25°/Sec
Tilt Range
0°-90°
INTERFACE
Network Interface
1×RJ-45 (10/100 Base-T)
Micro SD Card
Support upto 512GB
WiFi
Standard 2.4GHz and 5GHz Dual Band Wifi
NETWORK
Protocols
TCP, RTSPS, RTMPS (Customized)
User/Host
8 users
GENERAL
Operating Temperature
-30°C~60°C(-22°F~140°F)
Operating Humidity
≤95%RH
Storage Temperature
-30°C~60°C(-22°F~140°F)
Storage Humidity
10%~95%RH(non-condensing)
Power Supply
DC12V±15%, Max. 6.5W
Certification
EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report, REACH, ESD 4KV, BIS-ER-01, BIS-IS-13252
Package Dimensions
180(L)90(W)95(H)mm
GrossWeight
0.3Kg
NetWeight
0.25Kg
