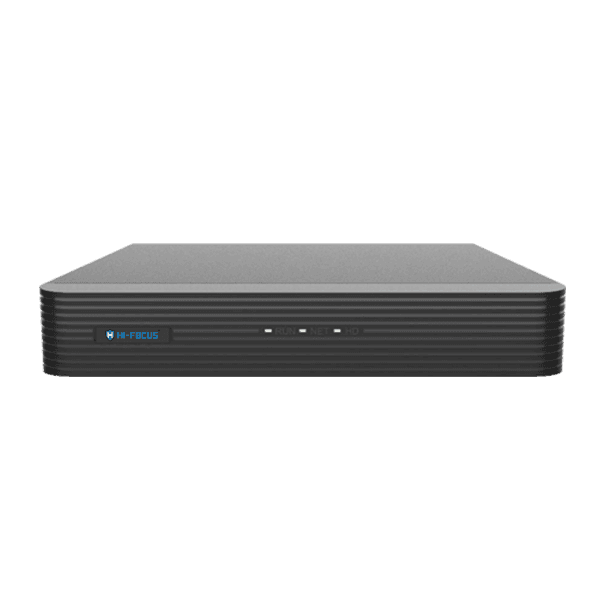

4 CHANNEL XVR
HD-XVR-4104Q
Product Features
- Support H.265/H.264 video formats
- Support audio over coaxial cable (only for TVI cameras)
- Support analog camera upgrade over coaxial cable
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4-channel BNC input
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920x1080
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Supports mainstream cameras of ONVIF and RTSP protocols
Specifications
- VIDEO / AUDIO INPUT
- VIDEO/AUDIO OUTPUT
- NETWORK
- SNAPSHOT
- ENCODING
- DECODING
- HARD DISK
- SMART
- ALARM
- EXTERNAL INTERFACE
- GENERAL
VIDEO / AUDIO INPUT
Analog Video Input
4-ch, BNC
IP Video Input
2-ch (only IP up to 6ch), each channel up to 6MP
Supported Analog Camera Types
Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input
Audio Compression
G.711U
VIDEO/AUDIO OUTPUT
VGA Output
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Synchronous Playback
HD:4-ch SD:4-ch
Live view display
HDMI/VGA: 1/4/6/8/9
NETWORK
Incoming Bandwidth
24Mbps (Up to 32Mbps after all analog channel conversion)
Outgoing Bandwidth
48Mbps
Remote Users
128
Protocols
TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
SNAPSHOT
FTP/Schedule/Event Snapshot
Schedule snapshot is not supported 4-ch snapshot, up to 704x576 resolution
ENCODING
Recording Resolution
1080P Lite/720P/D1
Recording Frame Rate
Main stream: 1080P Lite@25fps Sub stream: D1@8fps Main stream: 720P@30fps Sub stream: D1@30fps
Audio Sample Rate
8KHz, 16 bit per channel
Audio Bit Rate
64Kbps per channel
DECODING
Capability
Analog: 4 x 1080P Lite@25, 4 x 720P@30 IP: 1 x 6MP@20, 2 x 1080P@30
HARD DISK
SATA
1 SATA interface
Capacity
Up to 6TB for each HDD
SMART
VCA Detection
Smart Motion Detection (SMD) for analog:4-ch
VCA Search
Behavior Search
ALARM
General Alarm
By analog camera: Motion detection By IP Camera: Motion detection
Alert Alarm
IP Conflict, Network Disconnected, Disk Offline, HDD is abnormal, Illegal Access, Running Out of Space, Space Used Up, Recording Abnormal
EXTERNAL INTERFACE
Network interface
1 RJ45 10M/100M self-adaptive Ethernet Interface
USB interface
Rear panel: 2 x USB2.0
GENERAL
Power Supply
12V DC Power Consumption: ≤ 10 W (without HDD)
Working Environment
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)
190mm × 202mm × 42mm (7.5" × 7.9" × 1.6")
Weight (without HDD)
≤0.6 Kg (1.32lb)
