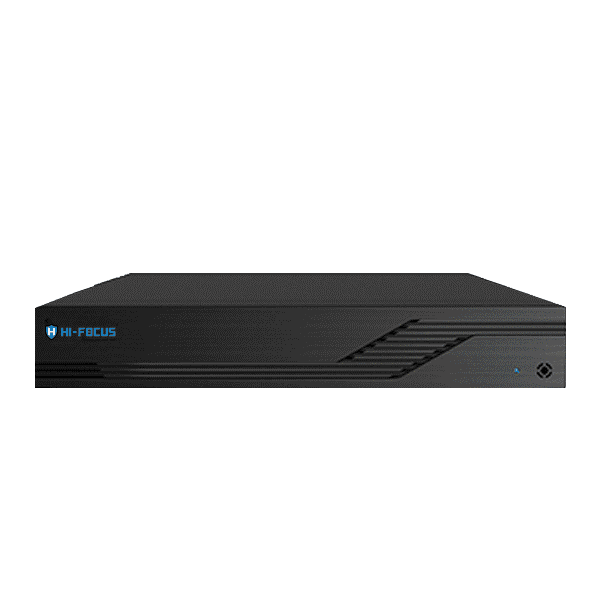

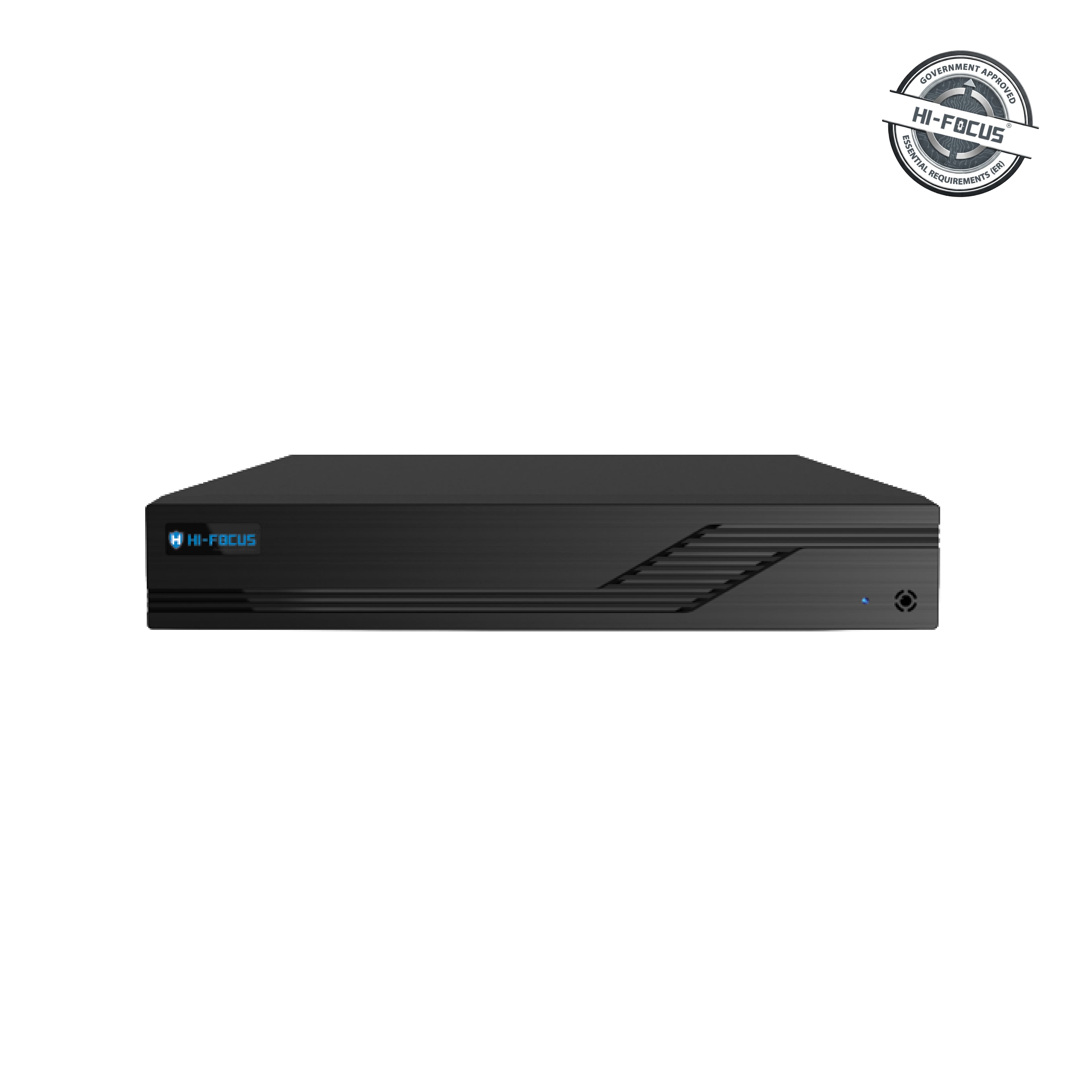

4 CHANNEL XVR
HD-XVR-4104TLC
Product Features
- 4CH TVI / AHD/CVI 1080P/ 1080P Lite/720P/WD1 video input
- 4CH DVR supports 2 CH 1080P / 960P /720P IP video input by default
- 4CH DVR: 4CH analog video input can be switched to 4CH IP video input
- Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
- Multi-mode recording: manual / timed / motion / AI recording
- Playback: 4CH simultaneously playback
- Search: time slice, time, event, tag search
- Express and flexible backup via USB, network and so on
- Pentaplex: preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device Authorization management, log review and device status review
- Support 1080P output, true high resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises Support NAT function and QRCode scanning by mobile phones Powerful mobile surveillance by smart phones with iOS and Andriod OS
Specifications
- SYSTEM
- VIDEO AND AUDIO
- RECORDING
- PLAYBACK
- DISPLAY
- NETWORK
- BACKUP
- STORAGE
- AUXILIARY INTERFACE
- ELECTRICAL
- ENVIRONMENTAL
SYSTEM
Main Processor
Embedded Processor
Embedded Processor
Embedded LINUX
VIDEO AND AUDIO
Incoming Bandwidth
10Mbps
Outgoing Bandwidth
30Mbps
Analog Camera Input
4Channel, BNC
IP Camera Input
4CH (HD) + 2CH (IPC)
Audio In
RCA ×1
Audio Out
RCA ×1
Two-way Talk
Take up channel one audio input
RECORDING
Video Compression
H.264/H.265
Resolution
1080P Lite/ 720P/ 720P Lite/ WD1
Record Rate
Analog Channel: 4CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) IP Channel: 25fps(PAL) / 30fps (NTSC)
Video Bit Rate
32Kbps ~ 4Mbps
PLAYBACK
Playback
4 CH
Search
Time slice / time / event / tag search
Smart Search
Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Function
Play, pause, FF, FB, digital zoom, etc.
DISPLAY
Interface
1 HDMI ,1 VGA
Resolution
1920×1080, 1280×1024, 1024×768
Multi-screen Display
1/4/6/9
NETWORK
Interface
RJ 45 100Mbps × 1
Protocol
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Max. User Access
5 users
BACKUP
Local Backup
U disk, USB mobile HDD
Network Backup
Yes
STORAGE
HDD
1 SATA Port, up to 8TB capacity
AUXILIARY INTERFACE
USB
2 USB 2.0
ELECTRICAL
Power Supply
DC12V/1.5A
Power Consumption
<5W (Without HDD)
ENVIRONMENTAL
Operating Conditions
-10~50°C, 10%~90% (humidity)
Dimensions
255 × 222 × 42 ( W × D × H )
