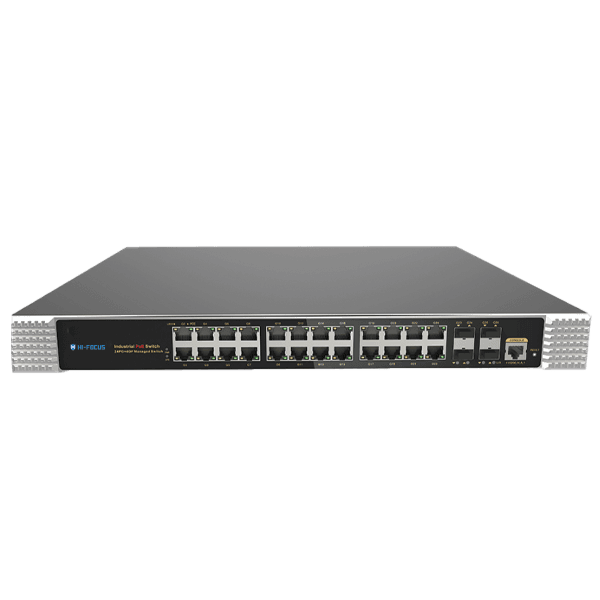

24 PORT INDUSTRIAL POE SWITCH
HF-SIG24G0F4-D400WN
Product Features
- 24 x 10/100/1000Base-T PoE ports (Data/ Power),
- 4 x 100/1000Base-X uplink SFP fiber ports (Data)
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- Support PoE network management function, port power status viewing, etc. through network management configuration.
- Support IEEE 802.1Q VLAN.
- Support IGMP Snooping V1/V2 to meet the needs of multi-terminal high-definition video surveillance and video conferencing access.
- The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
- Web network management, CLI (Console, Telnet), SNMP (V1/V2/V3), Telnet, and other diversified management and maintenance methods
Specifications
- PARAMETER
- POE & POWER SUPPLY
- PHYSICAL PARAMETER
- NETWORK MANAGEMENT FEATURE
Network Port
24 x 10/100/1000Base-T PoE ports (Data/Power) 4 x 100/1000Base-X uplink SFP fiber ports (Data) 2 x AC100-240V input ports 1 x RS232 Console port 1 x DC48-57V input ports
Ethernet Port
Port 1-24 can support 10/100/1000Base-T(X) auto – sensing, full/half duplex, MDI/MDI-X self-adaption
Twisted Pair Transmission
10 BASE-T: Cat3, 4, 5 UTP ( ≤ 100 meters) 100 BASE-TX: Cat 5 or later UTP ( ≤100 meters) 1000 BASE-T: Cat 5e or later UTP ( ≤ 100meters)
Optical Fiber Port
Gigabit optical fiber port, default no include optical modules
Optical Cable / Distance
Multi-mode: 850nm/0-550m, Single-mode: 1310nm/0-40km, 1550nm/ 0-120km
PARAMETER
Network Management Type
L2+
Network Protocol
IEEE802.310BASE-T, IEEE802.3i10Base-T, IEEE802.3u100Base-TX IEEE802.3ab1000Base-T, IEEE802.3z1000Base-X, IEEE802.3x
Forwarding Mode
Store and Forward (Full Wire Speed)
Switching Capacity
56Gbps (non-blocking)
Forwarding Rate @64byte
41.66Mpps
CPU
500 M
DRAM
1G
FLASH
256M
MAC
8K
Buffer Memory
4.1M
LED Indicator
Power: PWR (Yellow), System: SYS (Yellow), Fiber port: L/A(Green), PoE: PoE (Green), Network: Link/ Act (Yellow)
Reset Switch
Yes, press and hold the switch for 10 seconds and release it to re store the factory settings
POE & POWER SUPPLY
PoE Port
Port 1-24 IEEE 802.3 af/at
PoE Management
Port PoE output on/off, Port PoE working status display
Power Supply Pin
1/2(+)3/6(-)
Max Power Per Port
30W, IEEE802.3af/at
Total PWR / Input Voltage
400W/ (AC100-240V)
Power Consumption
Standby < 15W, Full Load <240W
Power Supply
Built-in power supply, AC100~240V 50-60Hz, 5.0A
Power Input Port
Alarm switch port, 2 x AC power input ports, 2 x DC48-57V input ports Dual input power port: AC power supply priority to support anti reverse connection protection, and automatically switches to DC connection when power fails.
PHYSICAL PARAMETER
Operation Temperature
-40°C~+80°C
Humidity
5%~95%RH Non condensing
Storage Temperature
-40°C~+85°C
Dimension (LxWxH)
440x378x44.5mm
Net /Gross Weight
5.3kg/6.1kg
NETWORK MANAGEMENT FEATURE
Interface
IEEE802.3x flow control (Full duplex) Broad cast storm suppression based on port rate Port real time traffic management (Flow Interval) Limit the rate of packet traffic on incoming and outgoing ports, mini granularity is 16Kbps and max is 1Gbps
L3 Feature
IPV4 static route / default route
VLAN
Port-based VLAN (4K), VLAN based on the protocol IEEE802.1q, Port configuration of Access, Trunk, Hybrid
Port Aggregation
LACP dynamic aggregation, Static aggregation, Max 10 aggregation groups and 8ports per group
Spanning Tree
RSTP (IEEE802.1w)
ERPS
ERPSv2
Multicast
Multicast VLAN, User quick exit mechanism, IGMP Snooping v1/v2
Port Mirroring
Bidirectional data mirroring based on port
QoS
802.1p/ DSCP priority mapping, Diff-Serv QoS Queue scheduling algorithm (SP,WRR,WFQ) Flow-based rate limiting, Flow- based packet filtering Flow-based redirection, 8*Output queues of each port
ACL
Port-based and VLAN – delivered ACL The L2- L4 packet filtering function can match the first 80 bytes of the packet and provide information based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range to define the ACL
Security
Port isolation, Port broad cast message suppression Port-based and Mac-based IEEE802.1X certification User hierarchical management and password protection AAA & RADIUS certification, IP source address protection
DHCP
Web network management (https), Ping detection
Management
Web network management (https), Ping detection ONV-NMS platform cluster management (LLDP+SNMP) One click recovery, View CPU real-time utilization status Link Layer Discovery Protocol (LLDP), System worklog Console/Telnetand CLI configuration, SNMP V1/V2/V3 NTP clock, HTTP file upload And download management
