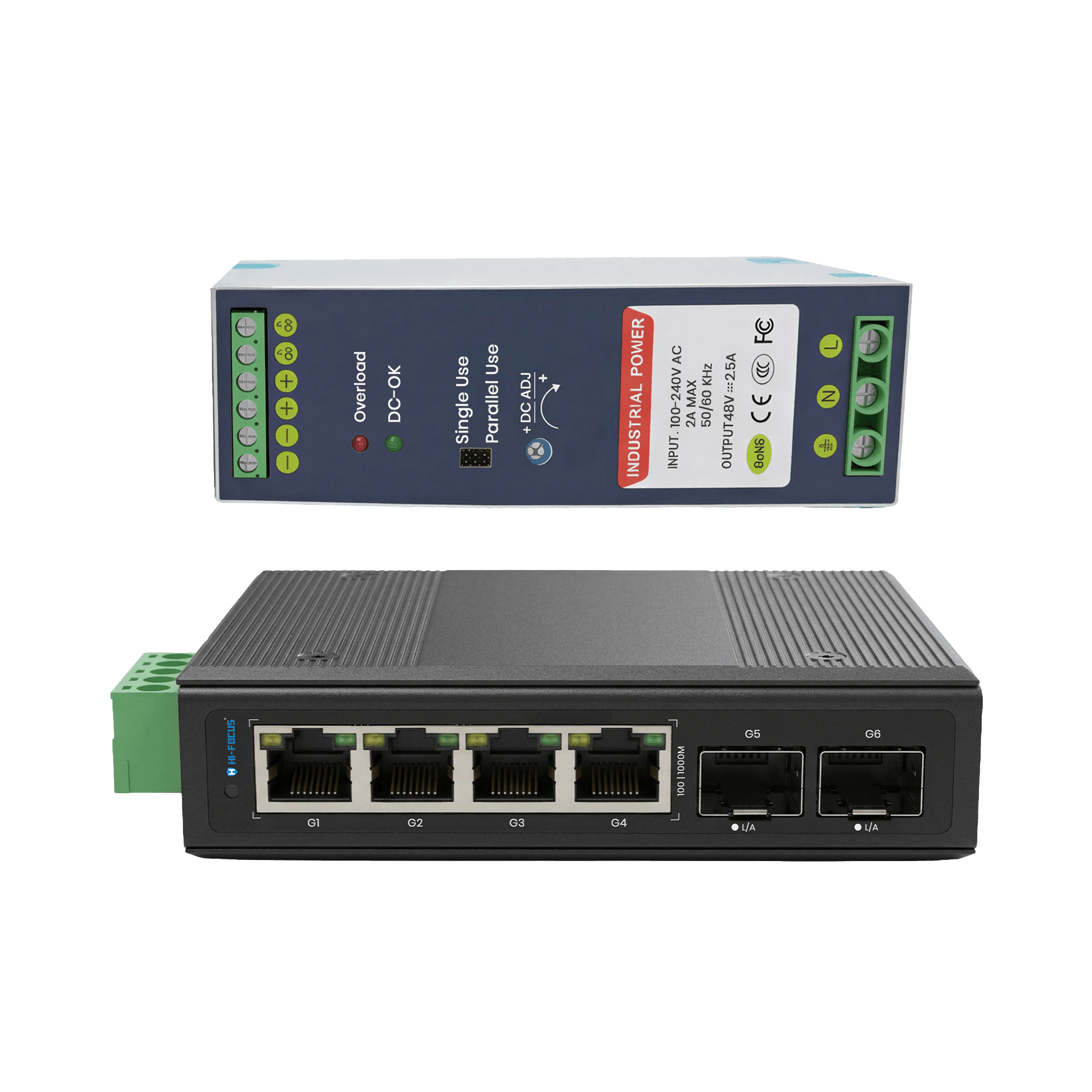

4 PORT INDUSTRIAL SWITCH
HF-SIG04G0F2-120WN
Product Features
- 4 x 10/100/1000Base-T PoE ports (Data/ Power), 2 x 100/1000Base-X uplink SFP fiber ports (Data)
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- Support remote PoE management function, realize remote power on/off of PoE port, check port power status, query PoE port fault, etc.
- Remote upgrade, remote restart, and factory reset.
- Local platform, cloud platform, and mobile APP operation and maintenance management
- Visualized network topology management, VLAN division, QoS, lin aggregation, ring network management, port mirroring, port control, and bandwidth management.
- The user-friendly panel can show the device status through the LED indicator of SYS, Link, and L/A.
- Low power consumption, no fan, aluminum shell, and excellent heat dissipation to ensure the stable operation of the switch.
Specifications
- General Specifications:
- PARAMETER
- POE & POWER SUPPLY
- PHYSICAL PARAMETER
- NETWORK MANAGEMENT FEATURE
General Specifications:
Network Port
4 x 10/100/1000Base-T PoE ports (Data/ Power) 2 x 100/1000Base-X uplink SFP fiber ports (Data) 2 sets V+, V- redundant DC power port
Ethernet Port
Port 1-4 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters)
Optical Fiber Port
Gigabit optical interface, default no included optical module
Optical Cable
Multi-mode: 850nm/ 0-500m, Single-mode: 1310nm/0-40km, 1550nm
Distance
0-120km
PARAMETER
Network Management Type
L2
Network Protocol
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode
Store and Forward (Full wire-speed)
Switching Capacity
12Gbps (non-blocking)
Forwarding Rate @64byte
8.93Mpps
MAC
2K
Buffer Memory
2M
Jumbo Frame
9.2K
LED Indicator
Power/ System: SYS (Green), Network: Link (Yellow), PoE: PoE(Green), Fiber port: L/A (Green)
Reset Switch
Press and hold for 6 seconds and release to restore the factory default settings. Short press 2 times (1 second interval) to switch to the unmanaged state
POE & POWER SUPPLY
PoE Port
Port 1-4
PoE Management
Port PoE output on/off, Port PoE real-time power view
Power Supply Pin
1/2 (+) 3/6 (-)
Max Power Per Port
30W, IEEE 802.3 af/at
Power Consumption
Standby<6W, Full load af<60W, at<120W
Power Input Port
DC48-57V, 5P industrial Phoenix terminal, support anti-reverse protection
Power Supply
No, optional 48V/60W or 48V/120W industrial power supply
PHYSICAL PARAMETER
Operation Temperature
-40°C~+75°C
Humidity
5%~95% RH Non condensing
Storage Temperature
-40°C~+85°C
Dimension (L*W*H)
119*100*30mm
Net /Gross Weight
0.4kg/ 0.5kg
NETWORK MANAGEMENT FEATURE
Interface
EEE Energy-saving and green Ethernet function Port traffic statistics, IEEE 802.3x flow control (Full-duplex) Port status display, Port duplex/ negotiation rate configuration
VLAN
Port-based IEEE802.1Q VLAN configuration (4K)
Port Aggregation
Static aggregation
Loop Protection
Loop protection function
Multicast
IGMP Snooping v1/v2, Max 256 multicast groups
Port Mirroring
Bidirectional data mirroring based on port
QoS
Diff-Serv QoS, Priority Mark/ Remark 8 Output queues of each port, 802.1p/DSCP priority mapping
Security
Broadcast storm control, Port isolation, Port speed limit
DHCP
DHCP Snooping
Management
Mobile APP operation and maintenance management NMS platform management (Local platform/ Cloud platform) One-key recovery, Cable Diagnose, Web Management (https)
