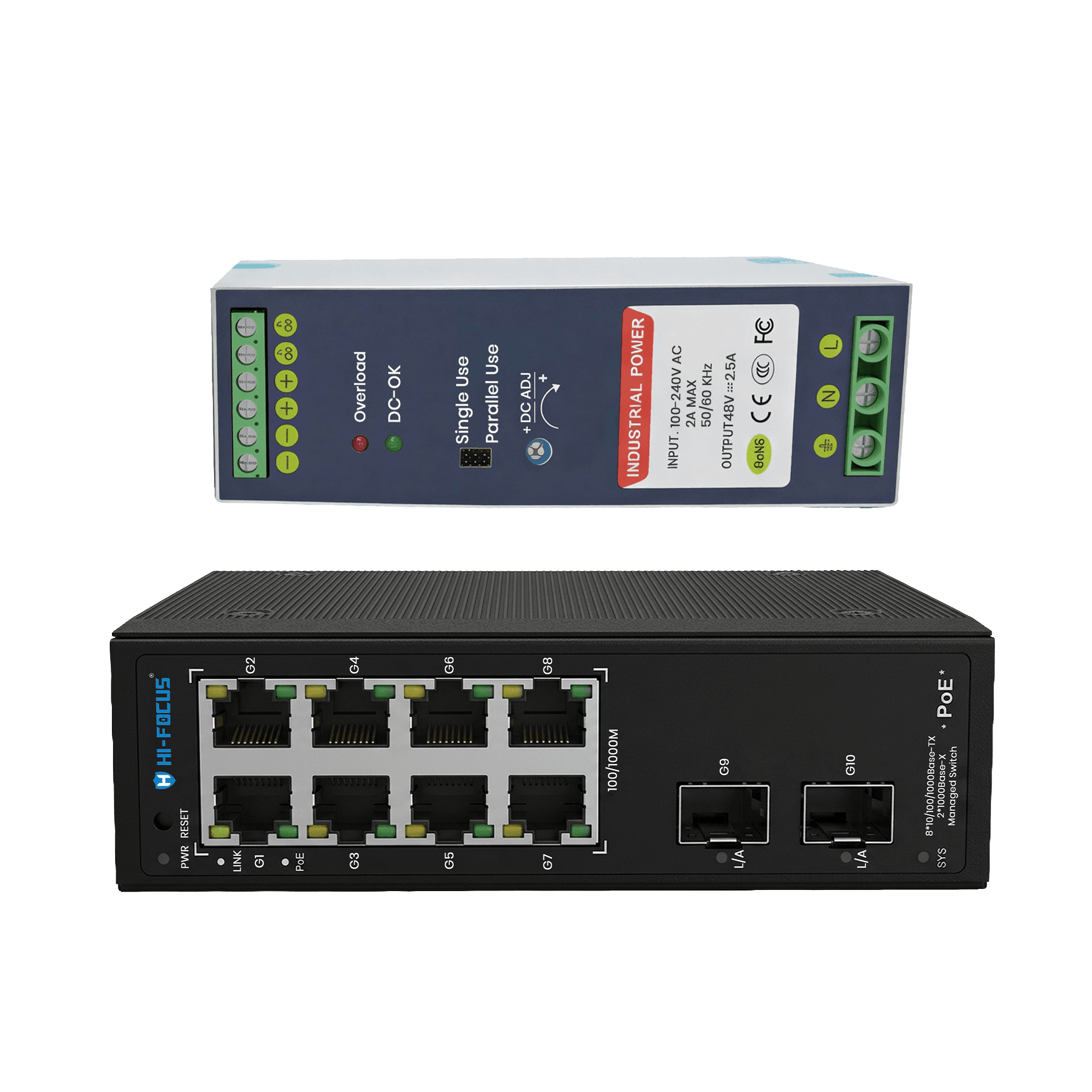

8 PORT INDUSTRIAL POE SWITCH
HF-SIG08G0F2-120WN
Product Features
- 8 x 10/100/1000Base-T PoE ports (Data/ Power), 2 x 100/1000Base-X uplink SFP fiber ports (Data)
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- Support remote PoE management function, realise the remote power on/off of PoE port, check port power status, query PoE port fault, etc
- Real-time fault alarm and fault location.
- Remote upgrade, remote restart, and factory reset.
- Local platform, cloud platform, and mobile APP operation and maintenance
- management.
- Visualised network topology management, VLAN division, QoS, link aggregation, ring network management, port mirroring, port control, and bandwidth management
Specifications
- General Specifications
- PARAMETER
- POE & POWER SUPPLY
- PHYSICAL PARAMETER
- NETWORK MANAGEMENT FEATURE
General Specifications
Network Port
8 x 10/100/1000Base-T PoE ports (Data/ Power) 2 x 100/1000Base-X uplink SFP fiber ports (Data) 2 sets V+, V- redundant DC power port
Ethernet Port
Port 1-4 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e/6 or later UTP (≤100 meters)
Optical Fiber Port
Gigabit optical interface, default no included optical module
Optical Cable
Multi-mode: 850nm/ 0-500m, Single-mode: 1310nm/0-40km, 1550nm
Distance
120km
PARAMETER
Network Management Type
L2
Network Protocol
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode
Store and Forward (Full wire-speed)
Switching Capacity
20Gbps (non-blocking)
Forwarding Rate @64byte
14.88Mpps
MAC
8K
Buffer Memory
2M
Jumbo Frame
9.2K
LED Indicator
Power/ System: SYS (Green), Network: Link (Yellow), PoE: PoE(Green), Fiber port: L/A (Green)
Reset Switch
Press and hold for 6 seconds and release to restore the factory default settings. Short press 2 times (1 second interval) to switch to the unmanaged state
POE & POWER SUPPLY
PoE Port
Port 1-8
PoE Management
Port PoE output on/off, Port PoE real-time power view
Power Supply Pin
1/2 (+) 3/6 (-)
Max Power Per Port
30W, IEEE 802.3 af/at
Power Consumption
Standby<8W, Full load af<120W, at<240W
Power Input Port
DC48-57V
Power Supply
No, optional 48V/120W or 48V/240W industrial power supply
PHYSICAL PARAMETER
Operation Temperature
-40°C~+75°C
Humidity
5%~95% RH Non condensing
Storage Temperature
-40°C~+85°C
Dimension (L*W*H)
145*134.5*47mm
Net /Gross Weight
0.75kg / 1.0kg
NETWORK MANAGEMENT FEATURE
Interface
EEE Energy-saving and green Ethernet function Port traffic statistics, IEEE 802.3x flow control (Full-duplex) Port status display, Port duplex/ negotiation rate configuration
VLAN
Port-based IEEE802.1Q VLAN configuration (4K)
Port Aggregation
Static aggregation
Loop Protection
Loop protection function
Multicast
IGMP Snooping v1/v2, Max 256 multicast groups
Port Mirroring
Bidirectional data mirroring based on port
QoS
Diff-Serv QoS, Priority Mark/ Remark 8 Output queues of each port, 802.1p/DSCP priority mapping
Security
Broadcast storm control, Port isolation, Port speed limit
DHCP
DHCP Snooping
Management
Mobile APP operation and maintenance management NMS platform management (Local platform/ Cloud platform) One-key recovery, Cable Diagnose, Web Management (https)
