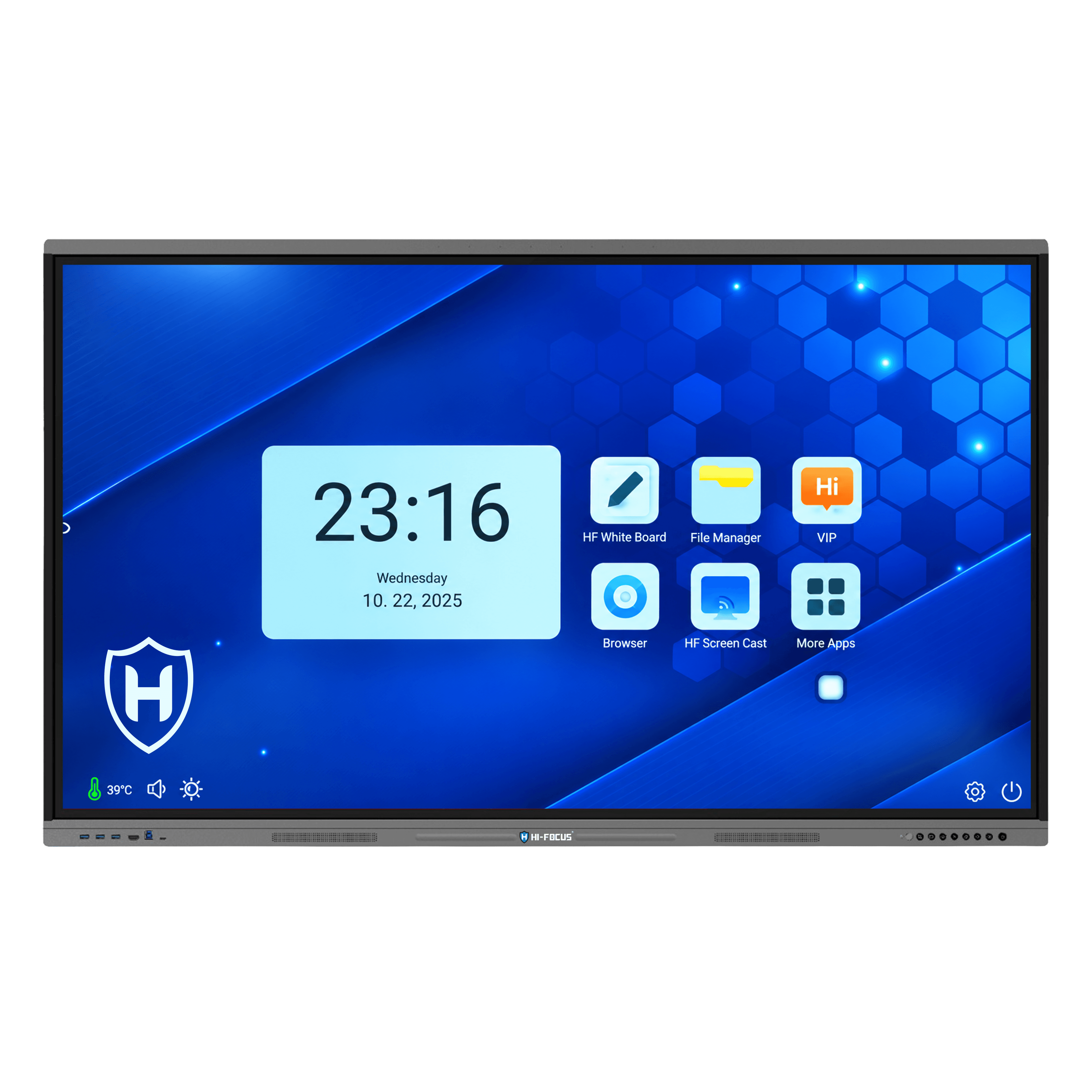

65 INCH SMART INTERACTIVE PANEL
HIFP65-0432
Product Features
- Perfect 4K resolution
- Industrial-grade aluminum frame
- 4 mm thickness Anti-glare glass
- 15Wx2 Speaker
- <5ms Response
- Password/Pattern Lock protected
- Infrared touch technology for rich writing experience
- Support APK install and authorize management, permit, or forbidden application
Specifications
- Display Specifications
- INTERACTIVITY
- COMPUTING
- CONNECTIVITY
- PHYSICAL SPECIFICATIONS
- ELECTRICAL
- ENVIRONMENTAL
- ACCESSORIES
Display Specifications
Screen Size and Resolution
65” 4K/3840x2160
Bezel color
Aluminum frame(Black & Grey color)
Back Light
Direct type LED
Active area (mm)
1428.48 x 803.52
Resolution
3840 x 2160 /UHD
Aspect Ratio
16:9
Contrast Ratio
1200:1/4000:1
Colors
1.07 billion colors
Brightness
350cd/m2
Viewing angle
178°
Glass hardness
Mohs-7 level
Screen surface
4mm thickness Anti-Glare glass
INTERACTIVITY
Touch technology
IR touch
Touch points
40 touch points (Windows) 20 touch points (Android)
Touch accuracy
±2mm
Recognition
Finger or passive stylus <4ms (single touch) <10ms (max touch inputs)
Minimum object size
2mm
Response Time
<5 ms
Windows OPS Slot
OPS
Hotspot
Yes
Bluetooth
V 5.0
WiFi
WiFi 5
System support
Win11/Win10/Win8/Win7/Mac OS /Android /Chrome OS/Linux
COMPUTING
Operating System
Android 14.0
Cpu
8×ARM Cortex-A55
Gpu
Mali-G52 MC2
RAM
DDR4 4G
ROM
32GB
Compliance
Windows; Mac; Linux; Chrome OS
CONNECTIVITY
Front ports
USB3.0 x 3 (Public), Touch out USB type B x 1, HDMI in 2.0 x 1, Type C x 1
Front Button
Indicator: Red/Blue, Light Sensor, Screenshot, Screen recording, eye protection, touch lock, Home,V- / V+/Power（ECO)
Speaker
15W x 2
Rear Side ports
RJ45 x 1 , SPDIF OUT x 1 Earphone x 1 Touch USB (HDMI) 2.0 x 1 HDMI IN x 1 USB3.0 x 1 USB2.0 x 1 T F x1 RS232 x
PHYSICAL SPECIFICATIONS
Net Weight/(kg±2)
33
Gross Weight/(kg±2 Overall size(mm)
40
(without bracket)
1485 x 886.9 x 100
Overall size(mm) (with bracket)/ (L*H*W)
1485 x 886.9 x 130.5
Carton size(mm)/ (L*H*W)
1589 x 995 x 195
VESA(mm)
500 x 400
ELECTRICAL
Input Voltage
90-264V AC
Power Consumption Standby
<0.5W
Power Consumption
Maximun < 200W
ENVIRONMENTAL
Working Temperature
0° ~ 40°
Storage Temperature
-20° ~ 60°
Working Humidity
10% ~ 80% RH
Storage Humidity
10% ~ 90% RH
ACCESSORIES
Accessories
Pen 1pcs, 2m power cord 1pcs, Wall mount kit
