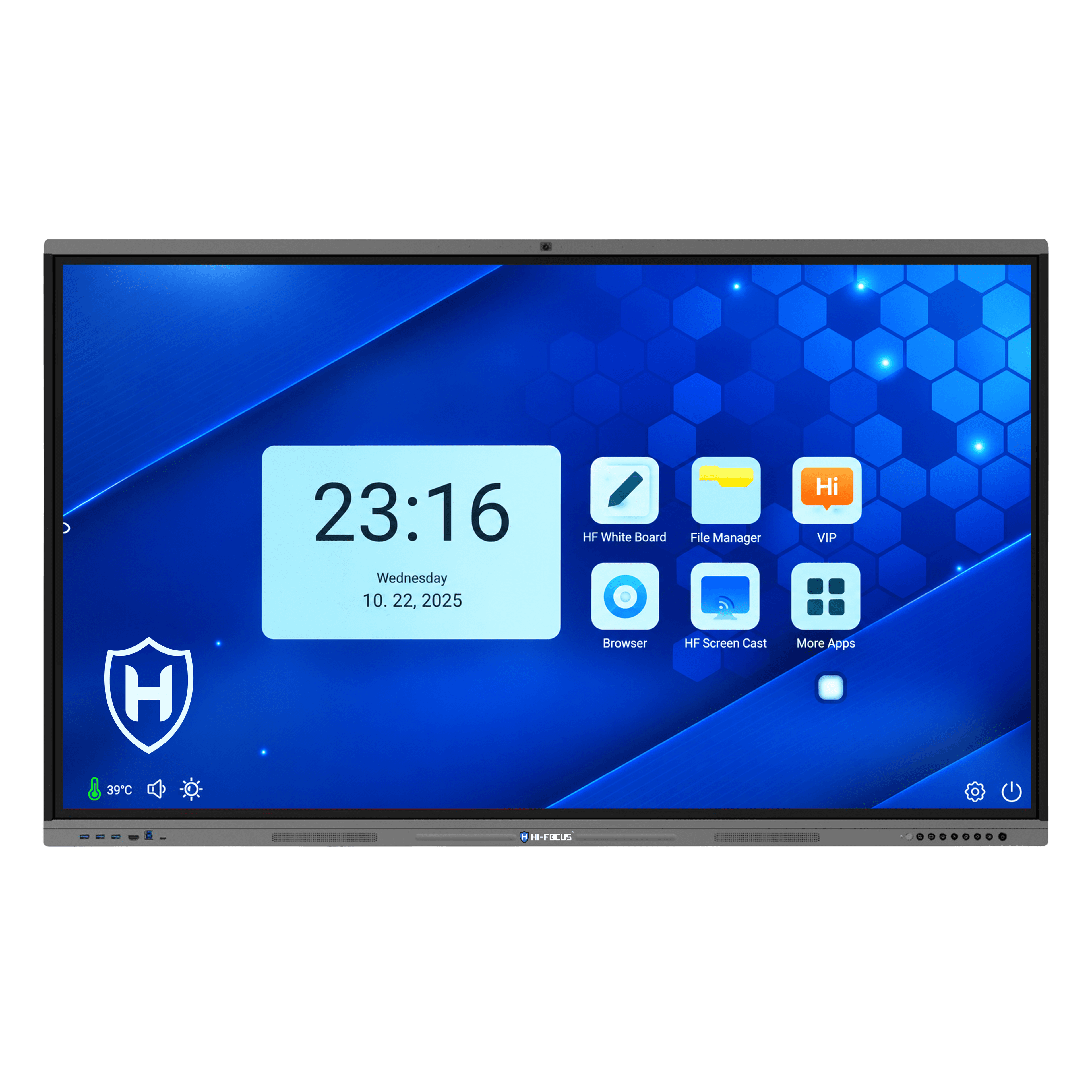

86 INCH SMART INTERACTIVE PANEL WITH CAMERA
HIFP86-8128-13M
Product Features
- Perfect 4K resolution
- Industrial grade aluminum frame
- 4mm thickness Anti-Glare glass
- 15Wx2 Speaker
- <5ms Response
- Password / Pattern Lock protected
- Infrared touch technology for rich writing experience
- Support APK install and authorize management, permit or forbidden application
Specifications
- Display Specifications
- INTERACTIVITY
- COMPUTING
- CONNECTIVITY
- CAMERA
- PHYSICAL SPECIFICATIONS
- ELECTRICAL
- ENVIRONMENTAL
- ACCESSORIES
Display Specifications
Screen Size and Resolution
86” 4K/3840x2160
Bezel color
Aluminum frame(Black & Grey color)
Back Light
Direct type LED
Active area (mm)
1428.48 * 803.52
Resolution
3840*2160 /UHD
Aspect Ratio
16:9
Contrast Ratio
1200:1/4000:1
Colors
1.07 billion colors
Brightness
350cd/m2
Viewing angle
178°
Glass hardness
Mohs-7 level
Screen surface
4mm thickness Anti-Glare glass
INTERACTIVITY
Touch technology
IR touch
Touch points
40 touch points (Windows)20 touch points (Android)
Touch accuracy
±2mm(Windows)
Recognition
Finger or passive stylus
Response Rate
<4ms (single touch) <10ms (max touch inputs)
Minimum object size
2mm
Response Time
<5 ms
Windows OPS Slot
OPS & OPS-C Intel standard
Hotspot
Yes
Bluetooth
V 5.0
WiFi
WIFI 5
System support
Win10/Win8/Win7/Mac OS /Android /Chrome OS/Linux
COMPUTING
Operating System
Android 14.0 Upgradeable to 15.0 in Future
CPU
8×ARM Cortex-A55
GPU
RM Mali-G52
RAM
DDR4 8GB
ROM
128GB
Compliant
Windows; Mac; Linux; Chrome OS
CONNECTIVITY
Front ports
USB3.0 x 3 (Public), Touch out USB type B x 1, HDMI in 2.0 x 1, Type C x 1
Front Button
Indicator: Red/Blue, Lighter Sensor, Screenshot, Screen recording, eye protection, touch lock, Home- / V+/Power ECO)
Speaker
2 x 15W
Rear Side ports
1 x RJ45, 1 x SPDIF OUT, 1 x Earphone, USB 2.0 x 1 TOUCH, 1 x HDMI IN, 1 x USB 3.0, 1 x USB 2.0, 1 x TF, 1 x RS232
CAMERA
Model
UHD Camera
Install Method
Built-in(on the middle-upper frame)
Pixel
13MP
FOV Diagonal:
120°
Compliant with OS
Windows; Android; Mac; Linux; Chrome OS
PHYSICAL SPECIFICATIONS
Net Weight/(kg±2)
33
Gross Weight/(kg±2
40
Overall size(mm) (without bracket)
1485*886.9*100
Overall size(mm) (with bracket)/ (L*H*W)
1485*886.9*130.5
Carton size(mm)/(L*H*W)
1589*995*195
VESA(mm)
500*400
ELECTRICAL
Input Voltage
90-264V AC
Power Consumption (Stand by)
<0.5W
Power Consumption
Maximun < 200W
ENVIRONMENTAL
Working Temperature
0° ~ 40°
Storage Temperature
-20° ~ 60°
Working Humidity
10% ~ 80% RH
Storage Humidity
10% ~ 90% RH
ACCESSORIES
Accessories
Pen 1pcs, Remote control 1pcs, 2m power cord 1pcs, Wall mount kit; Wireless dongle (Optional); Mobile trolley cart (Optional); Smart Pen (Optional
