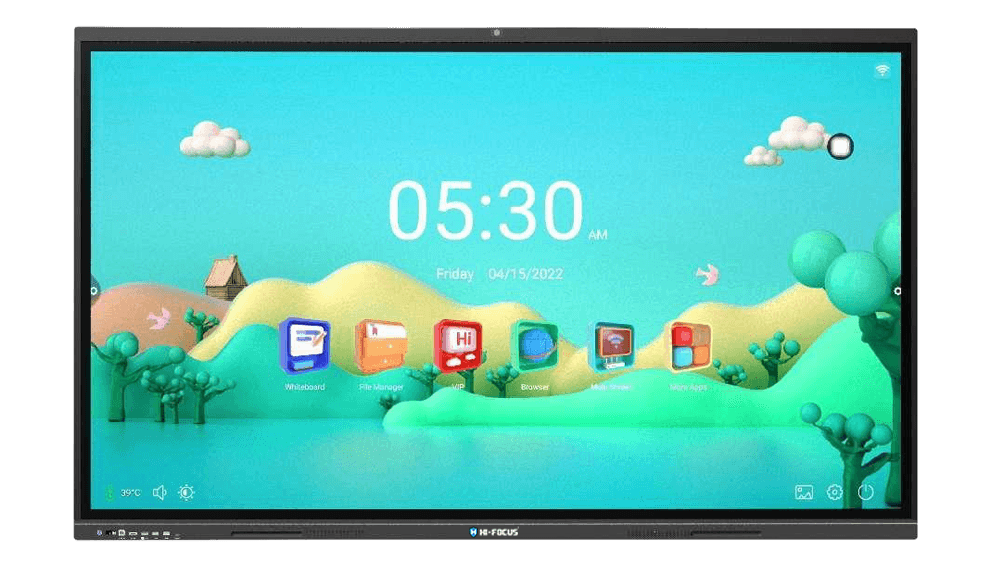

65 INCH INTERACTIVE FLAT PANEL DISPLAY WITH BUILT-IN CAMERA
HF-ITP65-0464-13M
Product Features
- Product Features
- 4K Resolution
- Industrial Grade aluminum frame
- 3mm Protect glass and anti -scratch
- Front audio stereophonic Speaker
- 20 points, <5~8ms Response
- Multiple Signal input HDMI, VGA, VIDEO
- Password protected
- Infrared touch technology for rich writing experience
- Inbuilt 13 megapixel camera
Specifications
- DISPLAY
- INTERACTIVITY
- COMPUTING
- AUDIO & CAMERA
- NETWORK
- CONNECTIVITY
- PANEL MANAGEMENT
- PHYSICAL SPECIFICATIONS
- POWER
- ENVIRONMENTAL
DISPLAY
Screen Size and Resolution
65” 4K/3840x2160
Bonding Technology
Zero Bonding
Display Orientation
Landscape (Portrait display option)
Screen Type
TFT LCD (Direct-LED Backlight)
Blue Light Reduction
Supported
Bonded Glass
Supported
Aspect Ratio
16:9
Display Area
1429 x 804 mm (56.3 x 31.7 in)
LCD Viewing Angle
178°
LCD Refresh Rate (Panel)
60Hz
LED Lifespan
60,000 hours
Contrast Ratio
5000: 1 Dynamic, 1200:1 Static
Brightness
350cd/m2±5%
Glass Hardness
9H (pencil), 7 (Mohs)
Glass Type
Heat tempered, Anti-Glare
INTERACTIVITY
Touch Technology
Infrared Touch
Touch Method
Finger & Stylus
Vellum Touch Technology
Supported
Continuous Touch Points
20Points (Android), 40Points (Windows)
Touch Resolution
32768x32768px
Response Time
≦5ms
Touch Accuracy
≧1mm
Tracking Rate
≧4m/s
Scan Rate
200Hz
Gestures and Edge Swipes
Android and Windows supported
Android and Windows supported
Supported
Smart Pen
Option, Support Smart Pen at Windows OS
Pen and Touch Differentiation
Supported
Palm Erase
Supported
Palm Rejection
Supported, Writing and non-writing hand
Pens Included
Supported, 2pcs Aluminum Magnetic Stylus
Pen Type
Battery-less pen
Pen Holder
2 pen slots at down bezel of IFPD
Pen Tip Diameter
2mm (Fine Pen Tip), 7mm (Thick Pen Tip)
Classroom Essential Apps
Including Whiteboard, Annotate, Timer, Calculator, Split Screen, Record, Spinner, ScreenCapture, Screen Record, Screen Share, Browser, PDF reader, Media Player, Screen Cast, etc.
Compatibility
Windows 7 to 11; Mac Os 10.8 to 10.11: MAC Os Sierra 10.12.1 or later; Linux Ubuntu 20.04LTS; Chrome OS
COMPUTING
Operating System
Android 13
RAM
Default 4G (8G option)
Internal Storage
Default 64G (128G option)
CPU
Amlogic T982, Quad core ARM Cortex-A55 CPU, 1.9 GHz
GPU
Mali-G52 MP2(2EE)
OSD Language
English
Video/Picture Encoding
− Independent JPEG and H.264 encoder with configurable performance/bit-rate − JPEG image encoding − H.264 video encoding up to 1080P@30fps with low latency
Video/Picture Decoding
− AV1 MP-10@L6.0/5.1 up to 8Kx4K@30fps or 4Kx2K@60fps − H.265 HEVC MP-10@L5.1 up to 8Kx4K@30fps or 4Kx2K@60fps − VP9 Profile 2 up to 8Kx4K@30fps or 4Kx2K@60fps − AVS2 MP up to 4Kx2K@60fps − H.264 AVC HP@L5.1 up to 4Kx2K@30fps − H.264 MVC up to 1080P@60fps − MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) − WMV/VC-1 SP/MP/AP up to 1080P@60fps − AVS-P16(AVS+) /AVS-P2 Profile up to 1080P@60fps − MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) − MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) − Multiple language and multiple format sub-title video support − MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) − Supports JPEG thumbnail, scaling, rotation and transition effects − Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4 and *.jpg file formats
AUDIO & CAMERA
Dual Front-facing Speakers
2 x 16W
Microphone Array
8 x Microphone array
Inbuilt Camera
inbuilt a 13Mega camera
NETWORK
LAN in (RJ45)
10/100Mbps
Wake-on-LAN
Supported
Wi-Fi (Client)
IEEE 802.11a/b/g/n, 2.4G, 5G
Bluetooth
5.0 version
CONNECTIVITY
HDMI in (rear)
2 x HDMI 2.0version
HDMI out (rear)
Option(1 x HDMI 2.0version)
AV in (3.5mm)
1
RS-232
1
Audio Out/Earphone(3.5mm)
1
SPDIF/Optical
1
USB-B 2.0 (rear)
1
USB-B 3.0 (rear)
1
USB-A 2.0 (Touch, rear)
1
HDMI in (Front)
1 x HDMI 2.0 version
USB-B 3.0 (Front)
1 (Only work on OPS channel)
USB-B 2.0 (Front)
2 (Both work on Android and OPS)
USB-C 2.0 (Type-C, Front)
1 (Work as USB 2.0)
USB-A 2.0 (Touch, Front)
1
PANEL MANAGEMENT
OTA Updates
Supported
MDM (Multiple Display Management)
IFPD information (IFPD Location, IP, MAC, Operation System version, Specification etc.) User management IFPD Device management (Power on/off, Screen Lock, Sent Message, Program work flow, Setting Parameters, Install/Uninstall APK, Upgrade firmware etc) Running log Group management
PHYSICAL SPECIFICATIONS
Handle
2
Panel Net Weight (Kg)
36±0.5
Packed Weight (Kg)
42.5±0.5
Panel Dimensions (WxHxD) (mm)
1490.8 x 892.2 x 89.6
Packed Dimensions (WxHxD) (mm)
1610x 200 x 1020
VESA Mount Point (mm)
400 x 300
POWER
Power Requirements
100V~240V AC, 50/60Hz
Energy Star Power Consumption
≦120W (without OPS)
Power Consumption (Standby)
≦0.5W
Ultra-Quiet Fanless Design
Supported
ENVIRONMENTAL
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-15° to 55°C (-5°F to 131°F)
Operating Humidity
20% to 80% non-condensing humidity
Storage Humidity
20% to 90% non-condensing humidity
