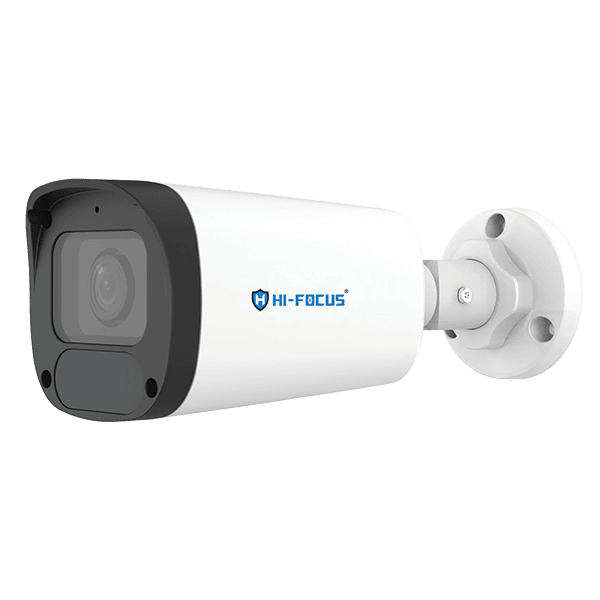

2 MP IP BULLET CAMERA
HC-IPC-TQA4312L-DZK-2812
Product Features
- High quality image with 2MP, 1/2.7"CMOS sensor
- 2MP (1920x1080) @30/25fps; 720P (1280x720) @30/25fps
- Smart H.265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Smart IR, up to 50m (164ft) IR distance
- Supports 512 GB Micro SD card
- Support PoE power supply
- 3-Axis
- IP67 Ingress Protection
Specifications
- CAMERA
- VIDEO
- SMART
- AUDIO
- STORAGE
- NETWORK
- INTERFACE
- GENERAL
CAMERA
Sensor
1/2.7", 2.0 megapixel, progressive scan, CMOS1/2.7", 2.0 megapixel, progressive scan, CMOS
Min. Illumination
Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR on
Day/Night
IR-cut filter with auto switch (ICR)
Shutter
Auto/Manual, shutter time: 1 ~ 1/100000s
Adjustment angle
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
WDR
120dB
S/N
> 52dB
Lens
2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
Iris
Fixed
Angle of view(H)
103.6°~33.4°
IR Range
Up to 50m (164ft)
Wavelength
850nm
IR On/Off Control
Auto/Manual
Noise Reduction
2D/3D DNR
AWB (Auto white balance)
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Defog
Digital Defog
VIDEO
Video Compression
Smart H.265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main Profile, High Profile
Frame Rate
Main Stream: 2MP (1920x1080), Max 30fps; 720P (1280x720), Max 30fps; Sub Stream: 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360, Max 30fps;
Video Bit Rate
128Kbps-6144kbps
Video stream
Dual Streams
HLC
Supported
BLC
Supported
Smart Code
Supported
OSD
Up to 4 OSDs
ROI
Support
Privacy Mask
Up to 4 areas
SMART
Intelligent Analysis
Basic Detection: Line Crossing, Intrusion (Based on Human Body Detection), Motion Detection, Smart Motion Detection, Tampering Alarm, Audio Detection
General Function
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
AUDIO
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Suppression
Supported
Sampling Rate
8 KHZ
STORAGE
Edge Storage
Micro SD, up to 512 GB
Network Storage
ANR, NAS (NFS)
NETWORK
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
INTERFACE
Network
1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic
Supported
GENERAL
Power
12 V DC±25%, PoE (IEEE802.3 af) Power consumption: Max 9.6W
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Dimensions (L × W × H)
206 × 73 × 73mm (8.1” × 2.9” × 2.9”)
Weight
0.51kg (1.12lb)
Reset Button
Supported
Material
Graphene +Plastic
Surge Protection
6KV
Ingress Protection
IP67
