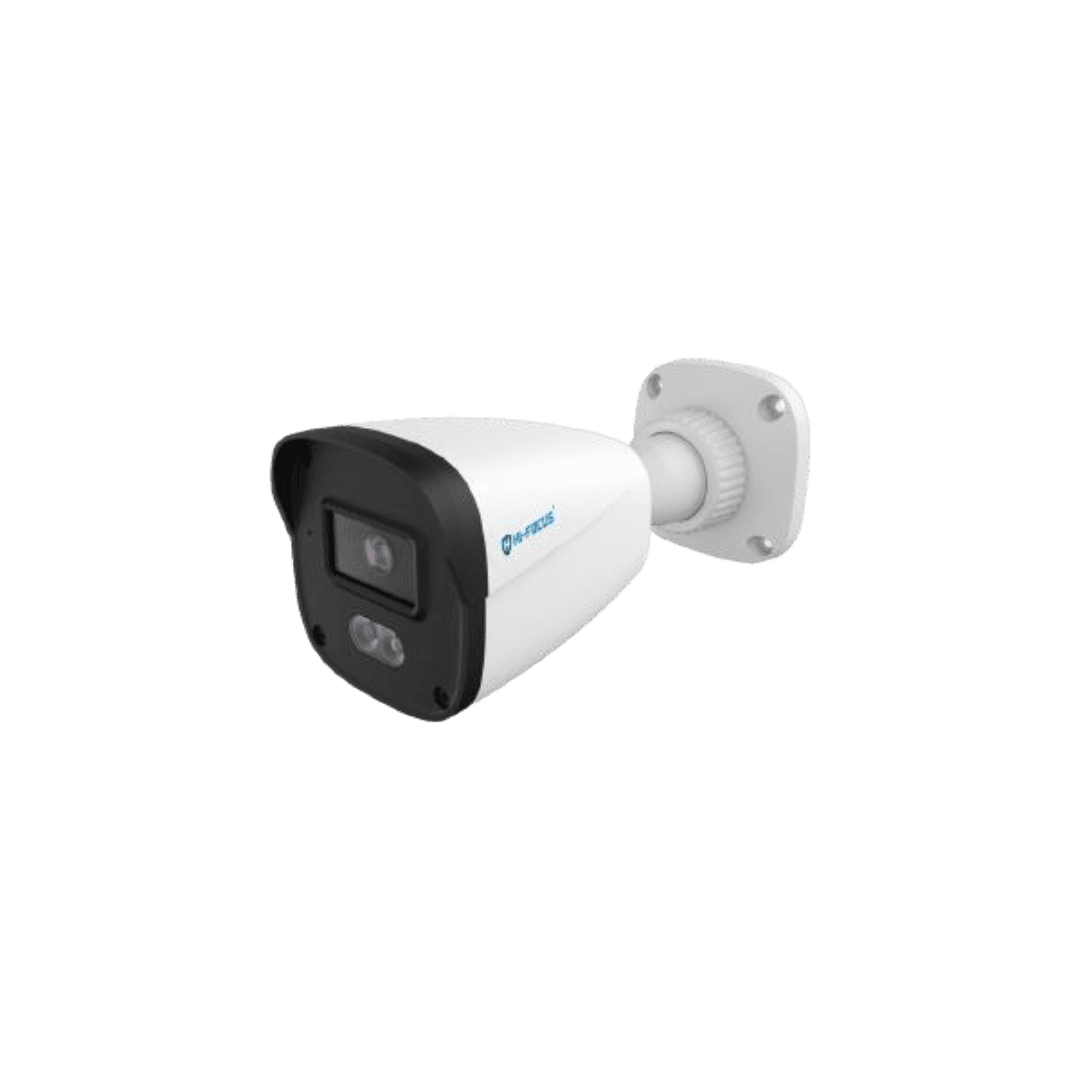

2MP BULLET NETWORK CAMERA
HC-IPC-T4212-0600
Product Features
- H.265+ /H.265 /H.264+ /H.264/MJPEG coding
- Max. resolution: 2MP (1920x1080)
- Auto day/night switch
- 3D DNR, WDR, HLC, BLC, etc.
- ROI coding
- Support smart supplement light
- 30m white light view distance; 30m IR view distance
- Support dual streams
- Support remote monitoring by smart phones& tablet
- PCs with iOS and Android OS
- Support line crossing detection, region intrusion detection
- Support SMD
- DC12V/PoE power supply
- IP67 Ingress Protection
Specifications
- CAMERA
- VIDEO
- INTERFACES
- FUNCTIONS
- GENERAL
CAMERA
Sensor
1 / 2.8" CMOS
Image Size
1920×1080
Electronic Shutter
1 / 3s ~ 1 / 100000s
Iris Type
Fixed Iris
Min. Illumination
0.01 lux @F2.2, AGC ON; 0 lux (Illumination on)
Lens
2.8mm@F2.2 / 3.6mm@F2.2
Angle of view (H)
95° / 75°
Focus
Fixed
Lens Mount
M12
Day & Night
ICR
Wide Dynamic Range
120 dB
BLC
Yes
HLC
Yes
Digital NR
2D / 3D NR
S/N Ratio
≥50dB
Angle Adjustment
Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°
VIDEO
Video Compression
Main stream: H.265+ / H.265 / H.264 + / H.264 Sub stream: H.265+ / H.265 / H.264 + / H.264 / MJPEG
H.265 Compression Standard
Main Profile@Leve4.1 High Tier
Resolution
1080P (1920×1080), 720P (1280×720), D1, VGA (640×480), 480×240, CIF
Main Stream
1080P/720P (60Hz: 1~30fps; 50Hz: 1~25fps)
Sub Stream
D1/VGA/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)
Bit Rate
64 Kbps ~ 3 Mbps
Bit Rate Type
VBR / CBR
Audio Compression
G711A/U
Image Settings
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
ROI
Each ROI to be configured separately
INTERFACES
Network
RJ45
Audio
1CH built-in MIC
FUNCTIONS
Remote Monitoring
Web browser /NVR/NVMS2.X/Mobile APP
Online Connection
Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission
Network Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, 802.1x, HTTP
Interface Protocol
ONVIF
Storage
Network remote storage
Motion Detection
Support smart motion detection; filtering motion alarm triggered by other target types except humans
Smart Analysis
(Human) region intrusion detection, (human)line crossing detection
General Function
Watermark, video mask, heartbeat
Security
Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP
PoE
Yes, IEEE802.3af
Supplement Light Range
IR range: 30 m; white light range: 30 m
GENERAL
Power Supply
DC12V/PoE
Power Consumption
< 5W
Operating Environment
- 20 °C ~ 55 °C (-4°F~131°F); Humidity: less than 95 % (non-condensing)
Storage Environment
- 20 °C ~ 60°C (-4°F~140°F), Humidity: less than 95 % (non-condensing)
Dimensions (mm)
162.1 × 74.8 × 73.8
Weight (net)
Approx. 0.25KG
Ingress Protection
IP67
