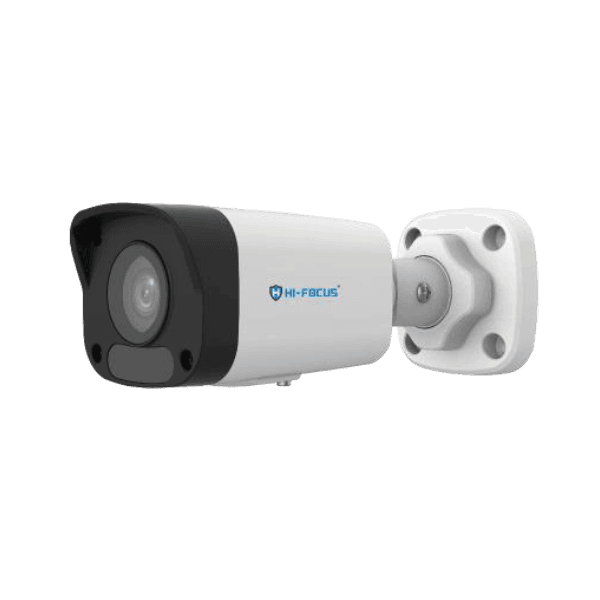

2MP IP BULLET CAMERA
HC-IPC-T4212ER5-0600
Product Features
- High quality imaging with 2MP, 1/2.8"CMOS sensor
- 2MP (1920x1080)@30/25fps; 720P (1280x720)@30/25fps
- Smart H.265, H.265, H.264, MJPEG
- Smart include Line Crossing, Intrusion, Motion Detection
- Light Hunter technology ensures ultra-high image quality in
- low illumination environment
- 120dB true WDR technology enables clear imaging in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 GB Micro SD card
- Support PoE power supply
- IP67 Ingress Protection
Specifications
- CAMERA
- VIDEO
- AUDIO
- SMART
- NETWORK
- STORAGE
- INTERFACE
- GENERAL
CAMERA
Sensor
1 / 2.8", 2.0megapixel, Progressive Scan, CMOS
Lens
3.6mm@F1.6
Iris
Fixed
Shutter Speed
Auto/Manual, 1 ~ 1/100000s
Day/Night
IR-cut filter with auto switch (ICR)
IR On/Off Control
Auto/Manual
Minimum Illumination
Colour: 0.001 Lux (F1.6, AGC ON) 0 Lux with IR
IR
Up to 30m (98ft) IR range
WDR
120dB
S/N
>52dB
Digital zoom
16x
Noise Reduction
2D/3D DNR
Angle of View (H)
106.7°
VIDEO
Video Compression
Smart H.265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Profile 1: 2MP (1920x1080), Max 30fps; 720P (1280x720), Max 30fps; Profile 2: 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360, Max 30fps; Profile 3: D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF (704x288), Max 30fps; CIF (352x288), Max 30fps;
Video Bit Rate
128 Kbps~ 16Mbps
ROI
Up to 4 areas
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
Flip
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
White balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR
Support
HLC
Support
BLC
Support
Defog
Digital Defog
AUDIO
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Suppression
Support
Sampling Rate
8KHZ
SMART
Intelligence Analysis
Line Crossing detection, Intrusion detection
Basic Detection
Motion detection, Tampering alarm
NETWORK
Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, Qos, RTMP, SSL/TLS, SSH
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
STORAGE
Edge Storage
Micro SD, up to 256GB
Network Storage
ANR, NAS (NFS)
INTERFACE
Built in-Mic
Support
Network
1 x RJ45 10M/100M Base-TX Ethernet
GENERAL
Power
DC 12V (±25%), PoE (IEEE 802.3af) Power consumption: Max 6.0W
Working Environment
-30℃~60℃ (-22°F ~ 140°F) Humidity: ≤95% RH (non-condensing)
Reset Button
Support
Surge Protection
4KV
Ingress Protection
IP67
