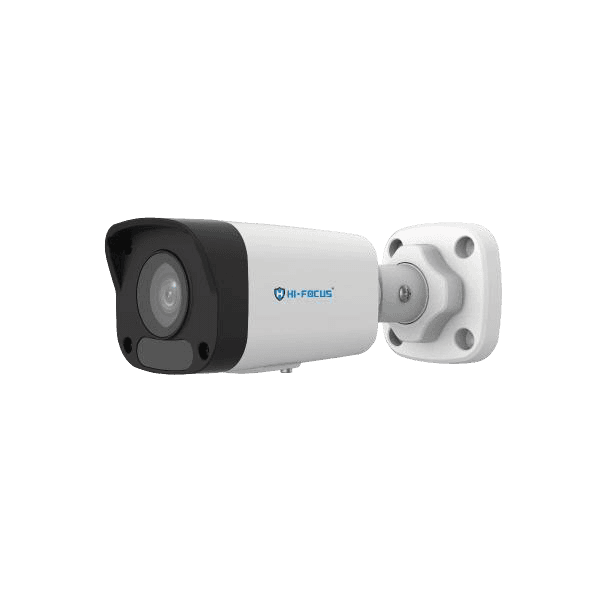

2MP IP BULLET CAMERA
HC-IPC-T4212U-0600
Product Features
- High quality image with 2MP, 1/2.8"CMOS sensor
- 2MP (1920x1080)@30/25fps; 720P (1280x720)@30/25fps
- Smart H.265, H.265, H.264
- Smart IR, up to 30m (98ft) IR distance
- Day/night functionality
- 2D/3D DNR (Digital Noise Reduction)
- Support PoE power supply
- 3-Axis
- IP67 Ingress Protection
Specifications
- CAMERA
- VIDEO
- SMART
- NETWORK
- INTERFACE
- GENERAL
CAMERA
Sensor
1 / 2.8", 2.0 megapixel, Progressive Scan CMOS
Lens
3.6 mm@F2.0
IRIS
Fixed Iris
Shutter Speed
Auto/Manual, 1 ~ 1/100000s
Day/Night
IR-cut filter with auto switch (ICR)
IR On/Off Control
Auto/Manual
Minimum Illumination
Colour: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR
IR
Up to 30m (98 ft) IR range
WDR
DWDR
S/N
>52dB
Digital zoom
16x
Noise Reduction
2D/3D DNR
Angle of View (H)
106.7°/94.2°
VIDEO
Video Compression
Smart H.265, H.265, H.264
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Profile 1: 1080P (1920x1080), Max 30fps; 720P (1280x720), Max 30fps Profile 2: D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps;
Video Bit Rate
128 Kbps~16Mbps
ROI
Up to 4 areas
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
Motion Detection
Up to 4 areas
Flip
Normal/Vertical/Horizontal/180°
White balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR
Supported
HLC
Supported
BLC
Supported
Defog
Digital Defog
SMART
Basic Detection
Motion detection
NETWORK
Protocols
IPv4, IPv6, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, FTP, SMTP, UPnP
Compatible Integration
ONVIF (Profile S), API
INTERFACE
Network
1 RJ45 10M/100M Base-TX Ethernet
GENERAL
Power
DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.5W
Working Environment
-30℃~60℃ (-22°F ~ 140°F) Humidity: ≤95% RH (non-condensing)
Surge Protection
4KV
Ingress Protection
IP67
