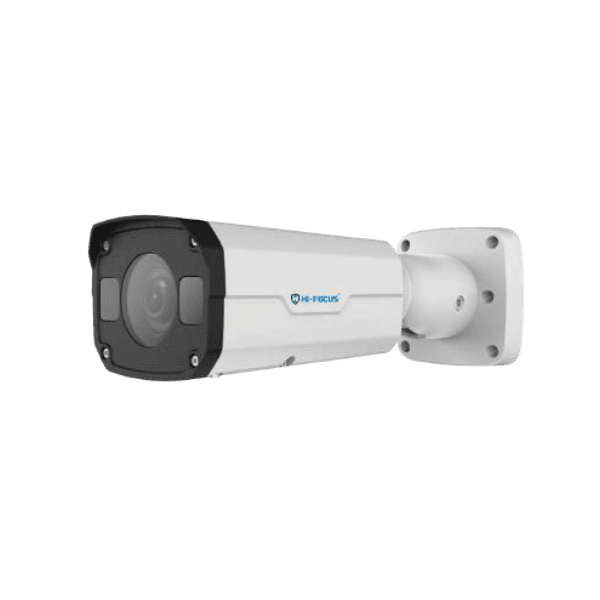

2MP IP BULLET CAMERA
HC-IPC-T4213D-VF
Product Features
- Day/night functionality
- Smart IR, up to 50m (164ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
- Smart H.265, H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- ONVIF Conformance
- Support PoE power supply
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- 3-Axis
- Wide voltage range of ±25%
- IP67 Ingress Protection
Specifications
- CAMERA
- VIDEO
- AUDIO
- SMART
- NETWORK
- STORAGE
- INTERFACE
- GENERAL
CAMERA
Sensor
1 / 2.8", 2.0megapixel, Progressive Scan, CMOS
Lens
2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
IRIS
Auto/ Manual
Shutter Speed
Auto/Manual, 1 ~ 1/100000s
Day/Night
IR-cut filter with auto switch (ICR)
IR On/Off Control
Auto/Manual
Minimum Illumination
Colour: 0.002 Lux (F1.6, AGC ON); 0Lux with IR on
IR
Up to 50m(164ft) IR range
WDR
120dB
S/N
>52dB
Digital zoom
16x
Angle of View (H)
94.0° ~ 28°
VIDEO
Video Compression
Smart H.265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Profile 1:2MP (1920x1080), Max 30fps; Profile 2: 720P (1280x720), Max30fps; Profile 3: D1 (720x576), Max30fps
Video Bit Rate
128 Kbps~16 Mbps
Video Stream
Triple streams
9:16 Corridor Mode
Supported
ROI
Up to 4 areas
Motion Detection
Up to 4 areas
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
White balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR
Support
HLC
Support
BLC
Support
Defog
Digital Defog
AUDIO
Audio Compression
G.711
Two-way Audio
Supported
Suppression
Supported
Sampling Rate
8 KHZ
SMART
Intelligence Analysis
Line Crossing detection, Intrusion detection, Missing object detection, Object left detection
Basic Detection
Motion detection, Tampering alarm
NETWORK
Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API
STORAGE
Edge Storage
Micro SD, up to 256 GB
Network Storage
ANR, NAS (NFS)
INTERFACE
Audio I/O
Input: impedance 35kΩ; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p]
Network
1 x RJ45 10M/100M Base-TX Ethernet
GENERAL
Power
DC12V ±25%, PoE (IEEE 802.3af) Power consumption: Max 9W
Working Environment
-35℃~60℃ (-31°F ~ 140°F) Humidity: ≤95% RH (non-condensing)
Surge Protection
6KV
Ingress Protection
IP67
